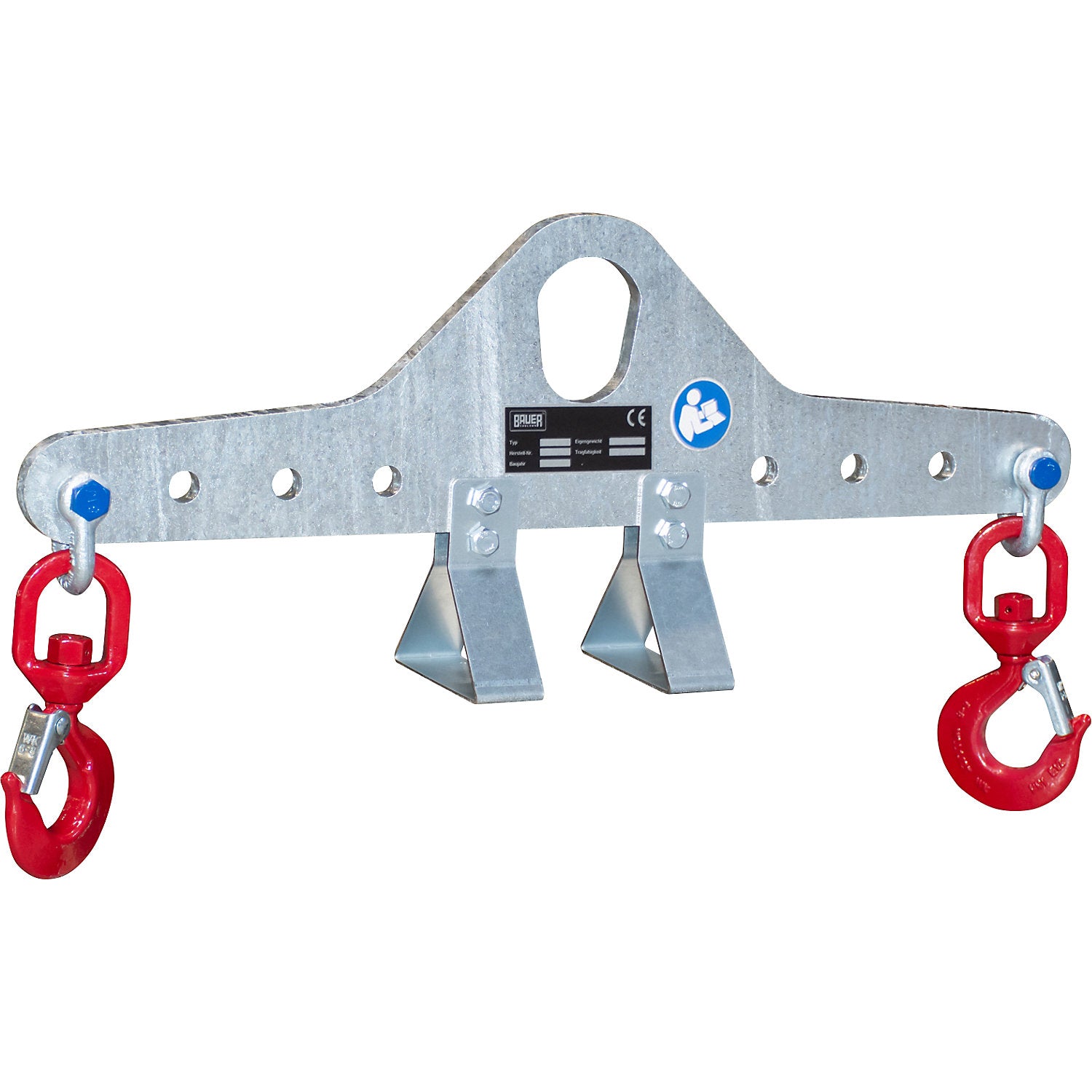

Mini beam, for a crane, max. load 500 kg, adjustment range 200 - 500 mm.

Estimated delivery: 37 days

Mini beam, for a crane, max. load 500 kg, adjustment range 200 - 500 mm

• Supplied = assembled
• Height = 305 mm
• Width = 100 mm
• Length = 550 mm
• Max. load = 500 kg
• Adjustment range = 200 - 500 mm
• Distance between perforations = 50 mm
• Material = steel
• Colour = hot dip galvanised
• Finish = hot dip galvanised
• Model = for a crane
• Weight = 6 kg
• Product type = beams
• Customs tariff number = 84314100
• Country of origin = ---
• Gross weight = 7 kg
• Weight = 6 kg
• Sustainability = CO 2 footprint calculated
• With crane eyelet. 2 adjustable swivel hooks
• With support feet in accordance with DGUV 100-500 Chap.2.8

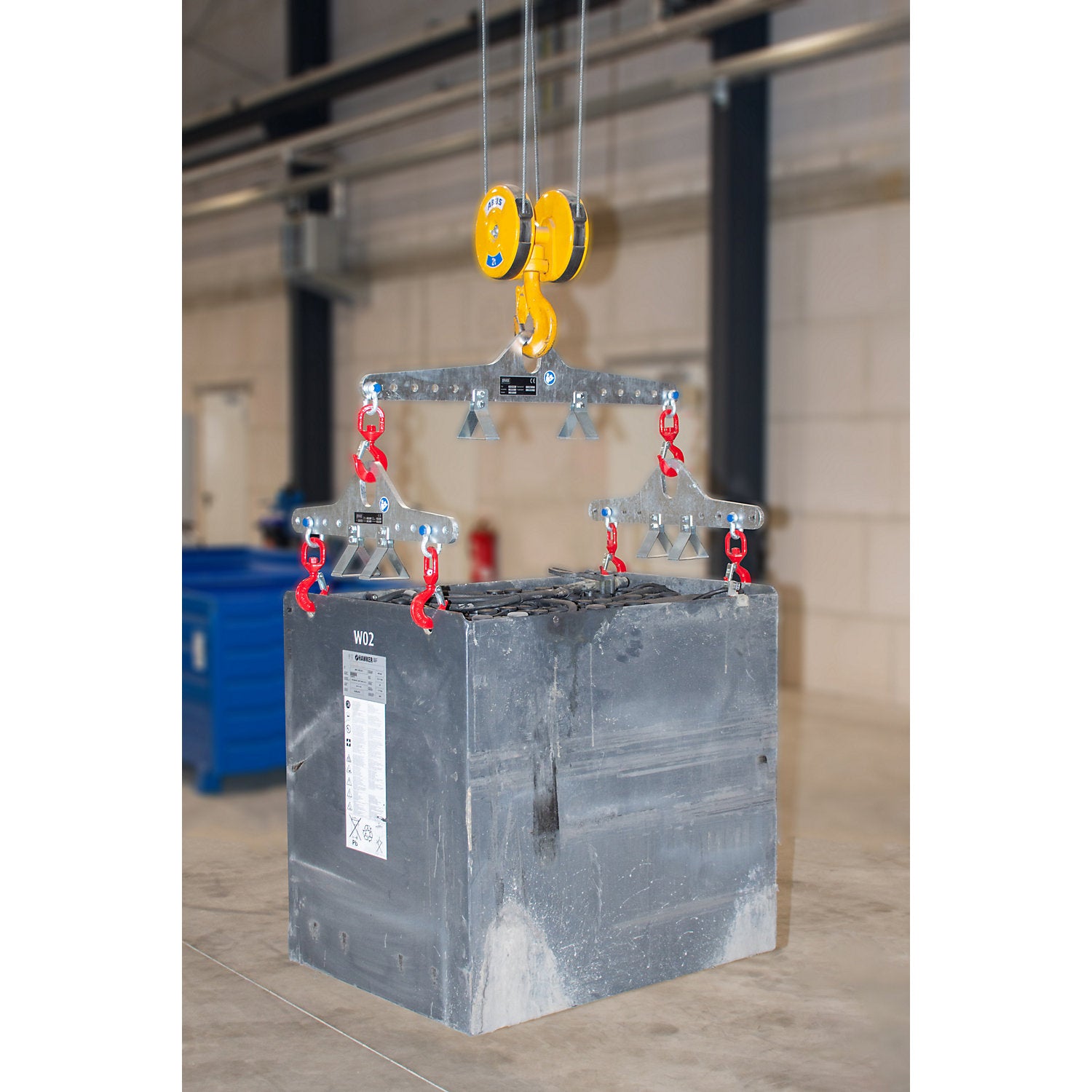

• Fast transport of loads, workpieces or machine components by crane without load swing
• Load support equipment manufactured in accordance with EN 13155.
