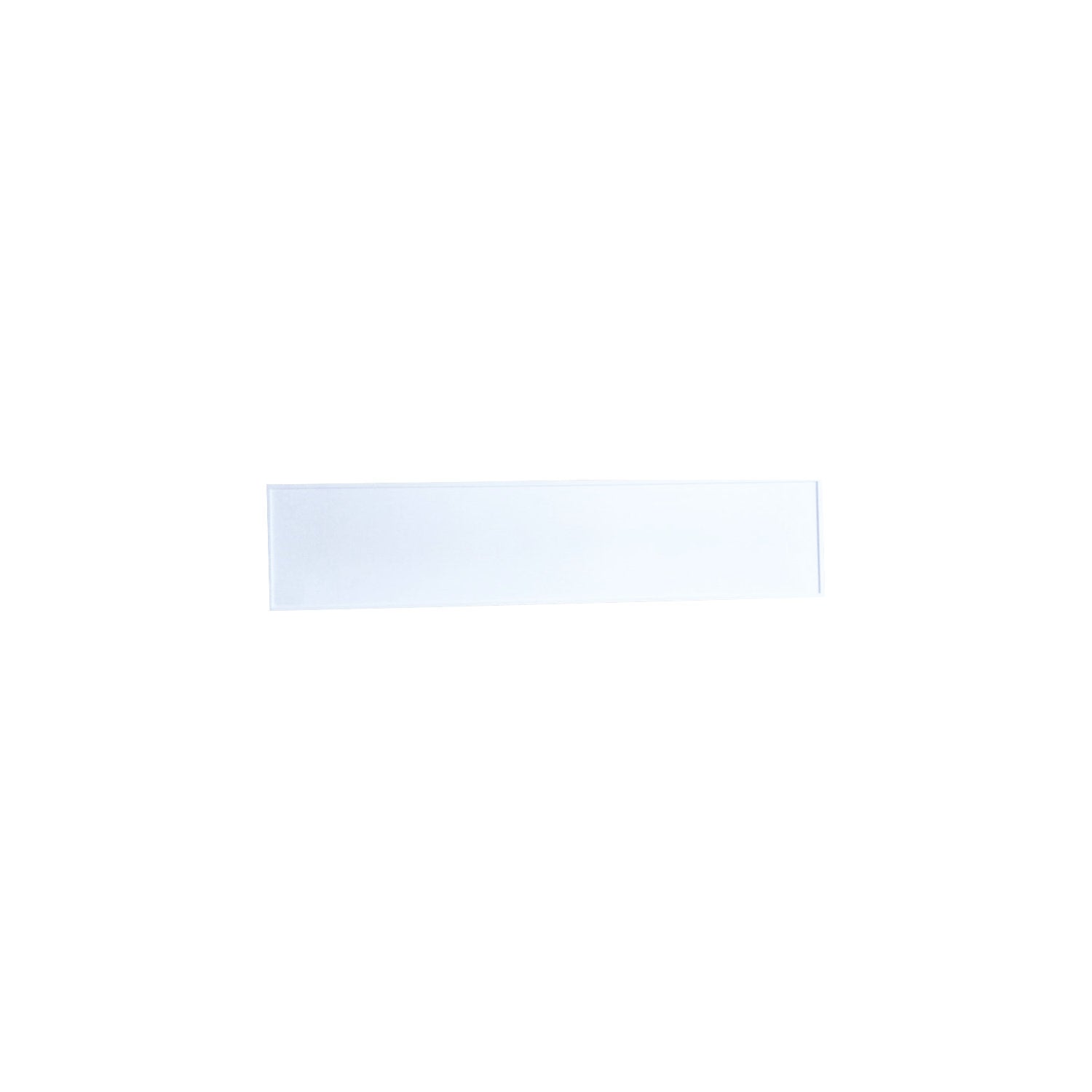

Infrared panel heater, with thermostat, 160 W, for room sizes up to 3 m².

Estimated delivery: 36 days

Infrared panel heater, with thermostat, 160 W, for room sizes up to 3 m²

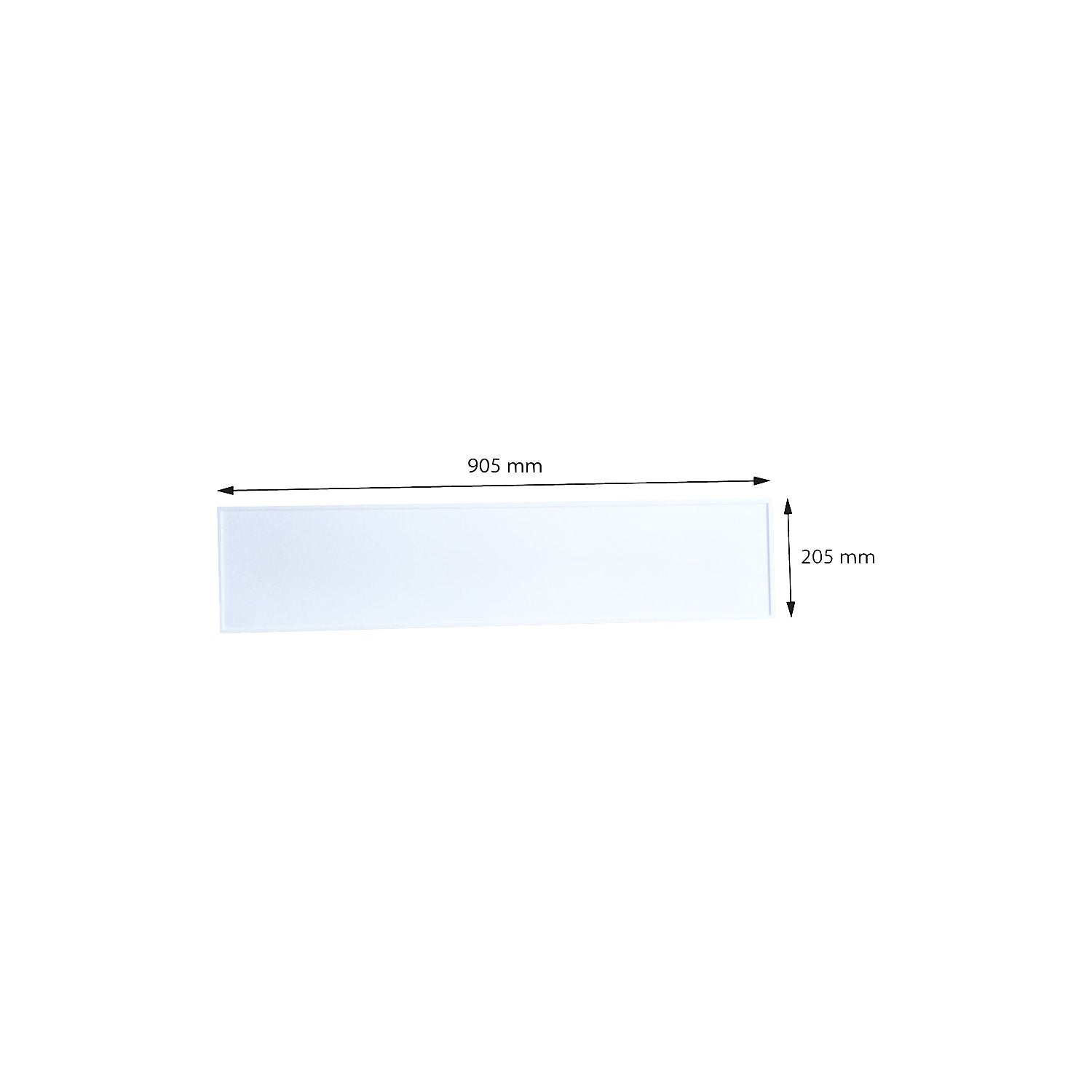

• Width = 22 mm
• Length = 205 mm
• Height = 905 mm
• Max. air volume = 0 m³/h
• Noise level = 0 dB(A)
• Nominal thermal capacity = - kW
• Mains voltage = 230 V / 50 Hz
• Power consumption = 160 watt
• Room size = 3 m²
• Protection type = IP54
• Cable length = 1900 mm
• Colour = white
• Material = aluminium
• Product type = heaters
• Customs tariff number = 85162999
• Country of origin = CHN
• Gross weight = 3.125 kg
• Weight = 1.8 kg
• Sustainability = Recyclable, CO 2 footprint calculated
• Clean, quiet and dust free ambient climate
• Very short and consistent heating phase
• Reduction of air circulation
• Low purchase and maintenance costs
• Easy wall mounting and little space required
• These heating panels are the most advanced solution in a timeless and slim design for efficient, comfortable and cost effective heating, and represent a high heating capacity, reliable workmanship and excellent quality
• The heating element is made of high quality Carbon Crystal and makes a high efficiency possible
• This ensures that the heat energy is generated exactly where it is needed
• Thermal insulation at the back prevents heat loss
• The thermal energy radiates effectively to the front and creates a pleasant room climate
• Thanks to this design, the room temperature can be kept 1 - 2 °C lower while maintaining the same level of comfort
• This will reduce your heating costs noticeably
• The heating panels can be used as an additional heater for cold snaps
• They can be perfectly integrated into any room
• Warmth and well-being in new and old buildings, halls or hobby rooms, in conservatories, wood huts or holiday homes, during renovations in the attic or cellar, in flats, offices, workshops, shops, showrooms and sales rooms
• Simply mount the heating plate on the wall, and connect the thermostat and the heating panel
• Different models of the thermostats can be ordered separately (see Accessories)
• Surface: white IR coating (RAL 9002), material at rear: aluminium, frame: white aluminium, heating element: Carbon Crystal, surface temperature: 75 - 95 °C, overheating protection: yes, LED power indicator light at the front, electrical efficiency: 98%
• The infrared panel heater comes complete with a thermostat
• The thermostat is a digital socket activated according to temperature, for automatic regulation of electric heating systems
• Advantages: - a different programme for every day of the week - option of setting two temperature levels (comfort, saving) - simple operation and programming - programmed temperature can be changed at short notice - function to switch off the consumer (OFF) for good - temperature regulated in increments of 0.5 °C - display with overview - buffer battery Technical data for the thermostat: Power supply: 230 V / 50 Hz Hysteresis: fixed (0.5 °C) Temperature changes per day: 4 Min. programming time: 30 min Temperature range that can be set: 3 °C to 40 °C Temperature adjustment in increments of: 0.5 °C Minimum display: 0.1 °C Measuring accuracy: 1 °C Switching element: relay Output: 16 A Backup battery: yes (NiMH 2.4 V, > 50 hours) Protection class: IP20 Operating temperature: 0 °C to 40 °C According to the ErP Directive, the infrared panel heaters may only be used as an auxiliary heater in combination with a room thermostat with a timer and a ventilation duct sensor, or only for occasional use
• One thermostat is supplied with each heating panel.
