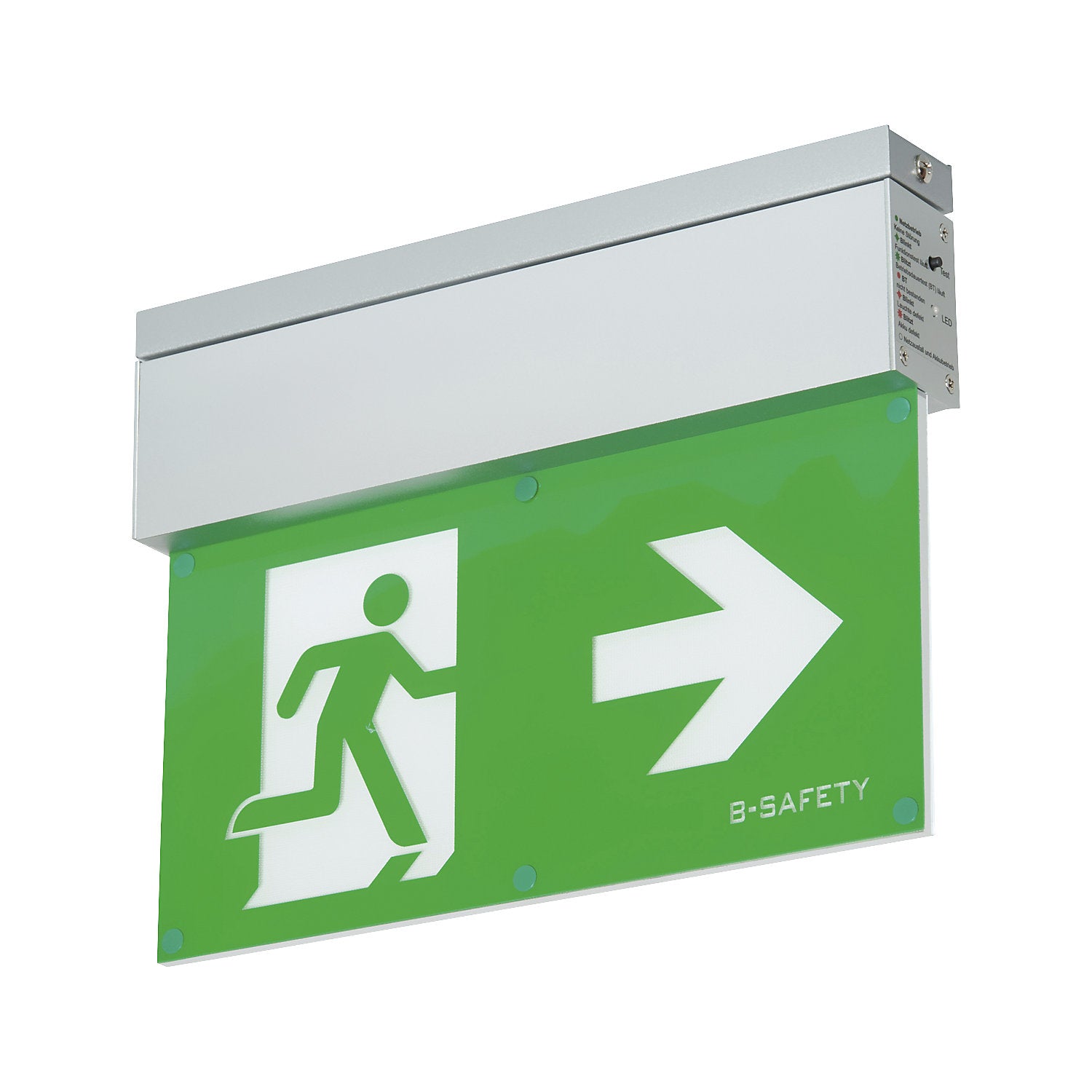

Emergency exit sign light, L-LUX STANDARD, ceiling mounting.

Estimated delivery: 38 days

Emergency exit sign light, L-LUX STANDARD, ceiling mounting

• Supplied = pre-assembled, final assembly by customer
• Type of mounting = ceiling mounting
• Recognition range = 27 m
• Battery version = LiFePO4 3.2 V / 1.5 Ah
• Operating time = 1 - 8 hrs
• Protection type = IP20
• Bulb = LED
• Power = 3,1 watt
• Mains voltage = 230 V / 50 - 60 Hz
• Length = 345 mm
• Width = 327 mm
• Height = 67 mm
• Housing material = aluminium
• Colour = aluminium
• Product type = emergency lights
• Customs tariff number = 94054239
• Country of origin = CHN
• Gross weight = 1.79 kg
• Weight = 1.38 kg
• Sustainability = CO 2 footprint calculated
• Vandalism proof due to impact resistant polycarbonate housing
• Continuous operation or standby mode
• Includes 1 standard set of signs in accordance with DIN EN ISO 7010
• Modern design
• Various mounting options to choose from
• L-LUX STANDARD emergency exit light for clear escape route marking The L-LUX STANDARD emergency exit light combines a modern appearance with automatic function monitoring
• In this way, it supports reliable escape route marking while blending discreetly into different areas of the building
• The integrated AUTOTEST function carries out required tests automatically
• A multi-colour status LED clearly signals the current operating status of the light
• In addition, the integrated test button enables targeted manual monitoring
• Faults or functional deviations can thus be detected early, while the effort for recurring visual inspections is reduced
• A toggle switch inside the emergency exit light allows selection between maintained and non-maintained mode
• In maintained mode, the emergency sign is continuously illuminated
• In non-maintained mode, the marking activates as soon as the regular power supply fails
• In this way, the operating mode can be adapted to the respective safety and usage concept
• The scope of delivery includes a standard set of signs made of polycarbonate film in accordance with DIN EN ISO 7010
• Included are the pictograms for emergency exit, escape route right, escape route left and escape route straight ahead
• The emergency signs are mounted directly onto the PMMA pane
• This enables clear escape route marking in accordance with the required direction
• An impact-resistant polycarbonate housing protects the light from damage caused by external influences
• The vandal-resistant construction is particularly suitable for publicly accessible and highly frequented buildings
• Typical locations of use are office and administrative buildings, schools, hotels, shops, clinics, event venues and other areas with designated escape and rescue routes.
