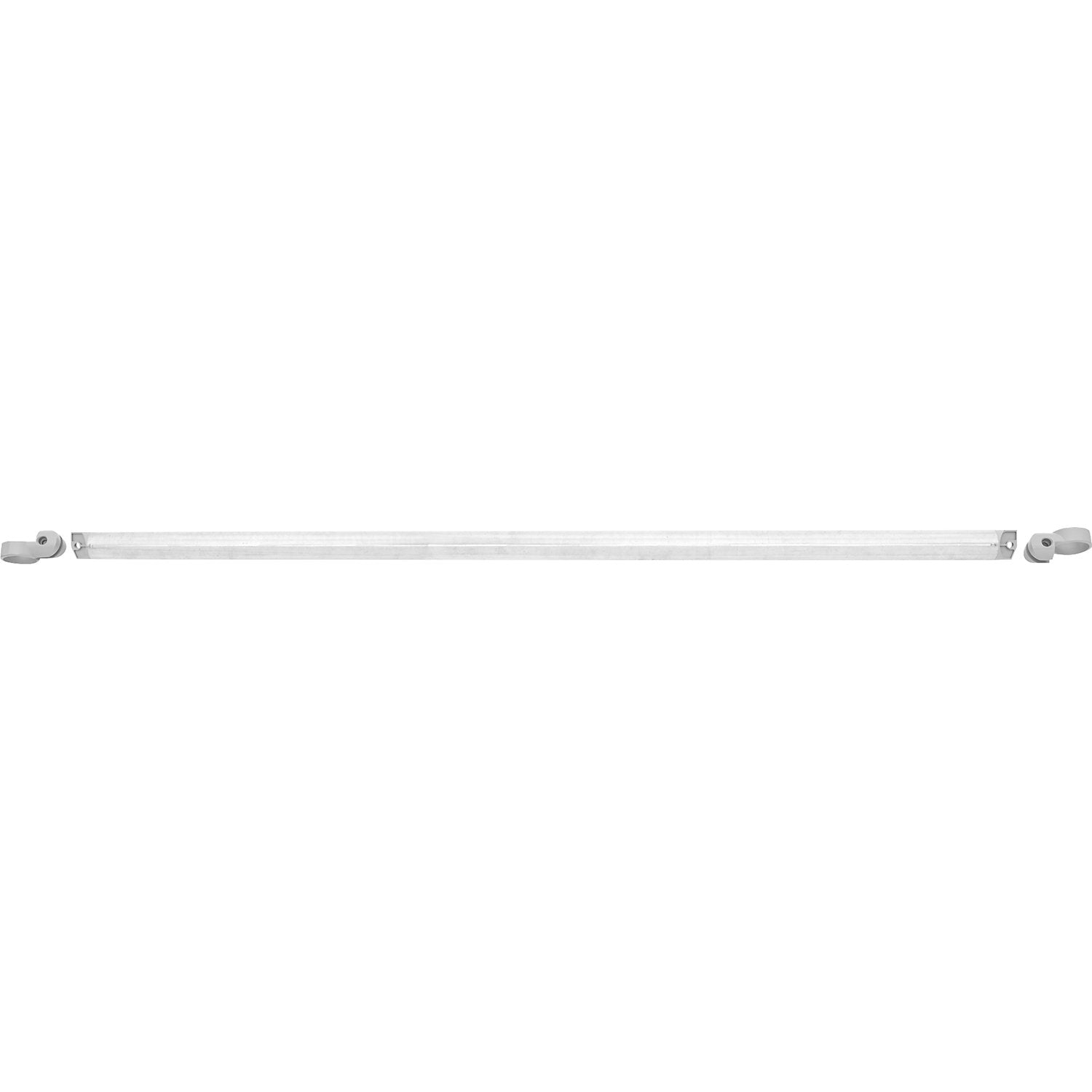

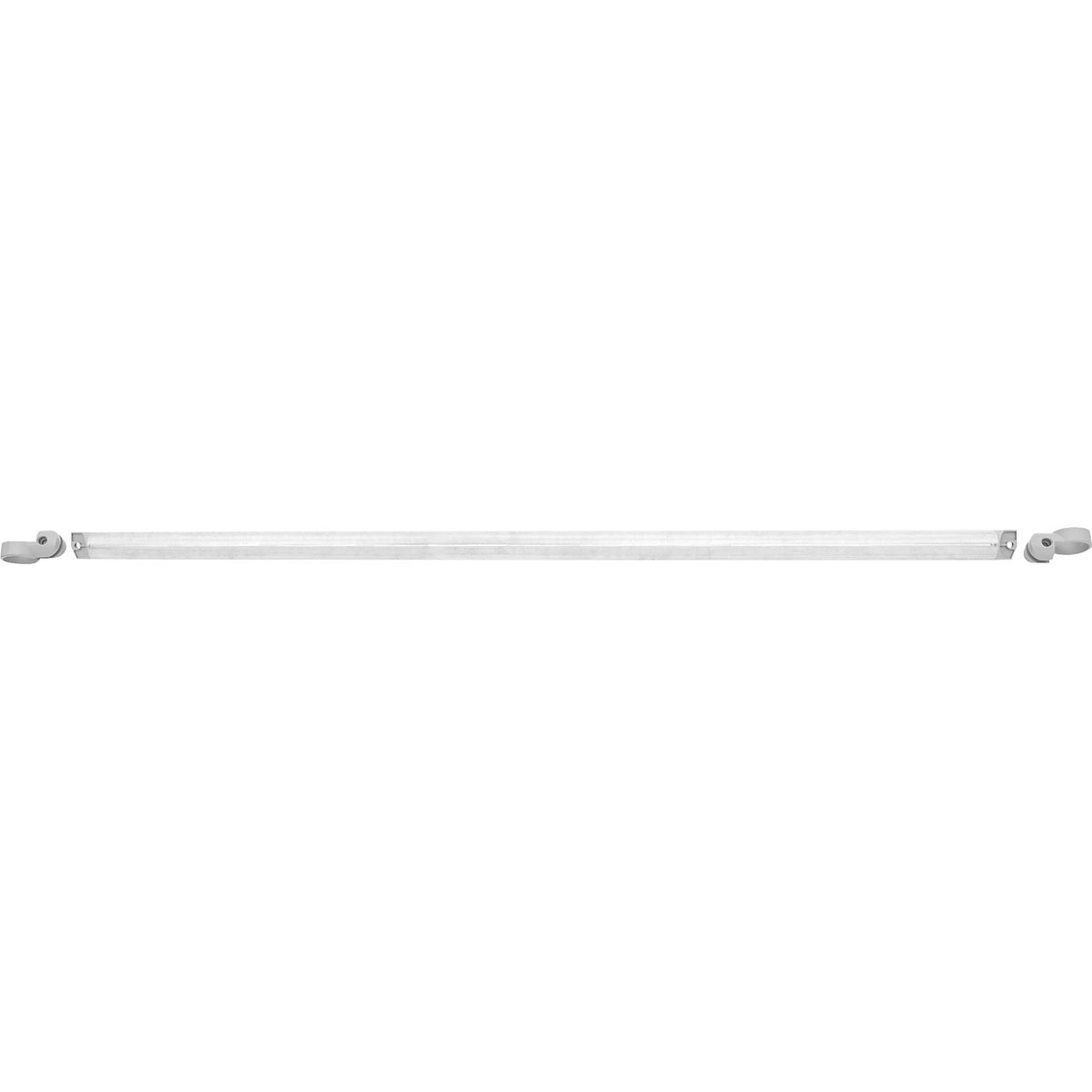

Railing system, cross pipe Ø 48 mm, zinc plated, length 1000 mm.

Estimated delivery: 41 days

Railing system, cross pipe Ø 48 mm, zinc plated, length 1000 mm

• Supplied = flat pack
• Material = tubular steel, galvanised
• Colour = zinc plated
• Type of mounting = for screw connection
• Length = 1000 mm
• Height = 1000 mm
• Model = cross-pipe
• Finish = zinc plated
• Tube diameter = 48 mm
• Product type = system railings
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 3.32 kg
• Weight = 3.2 kg
• Sustainability = CO 2 footprint calculated
• Delivered flat pack - easy self-assembly
• Can be set at any angle up to 90°
• Rises of up to 45° can be bridged
• TÜV-TESTED in accordance with DGUV 208-061
• Flexible modular system
• Cross tubes infinitely height adjustable
• Includes clamps/stainless steel screws
• The durable railing system is suitable for use in demanding environments
• The sturdy construction and high adaptability enable secure cordoning off across a wide variety of application areas
• The guard railing is designed as a flexible modular system and can be extended as required
• This creates a tailored barrier for individual requirements
• The variably adjustable connecting elements allow any horizontal angle between 90° and 270° as well as vertical angles up to 45°
• This high flexibility allows height compensation on uneven ground or bridging gradients and ensures continuous safety without interruptions
• Thanks to the easy-to-assemble model, the individual elements can be connected quickly
• The simple assembly saves time and reduces installation effort

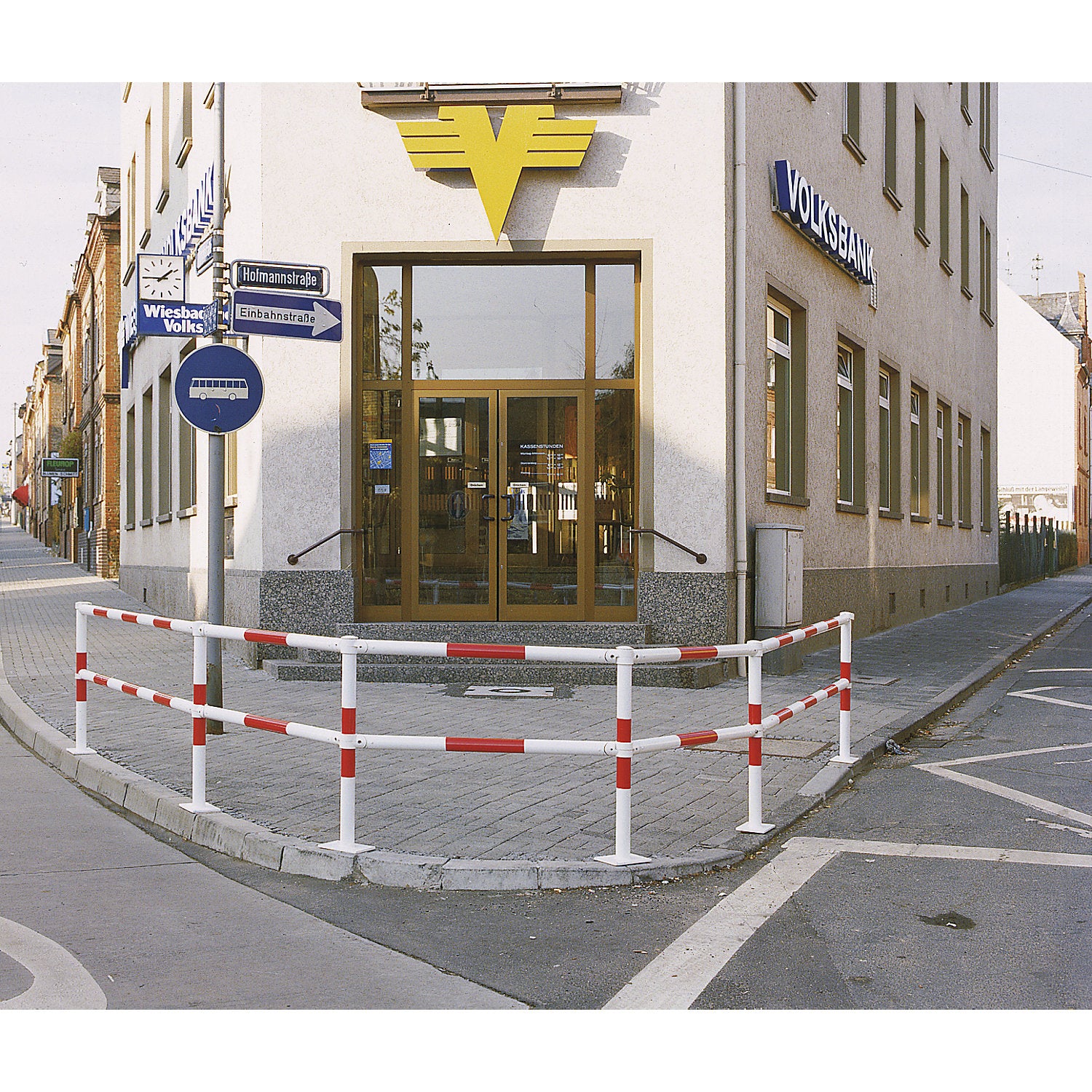

• The railing system is suitable for securing operational traffic routes as well as public roads and squares
• It serves to clearly separate roadways and types of traffic, such as around public transport stops
• Also functioning as a pedestrian chicane or pedestrian guidance system, the barrier ensures structured workflows and increased safety in heavily frequented areas
• The cross tubes, available in various lengths, are hot dip galvanised or provided with an additional safety paint finish in red/white or yellow/black

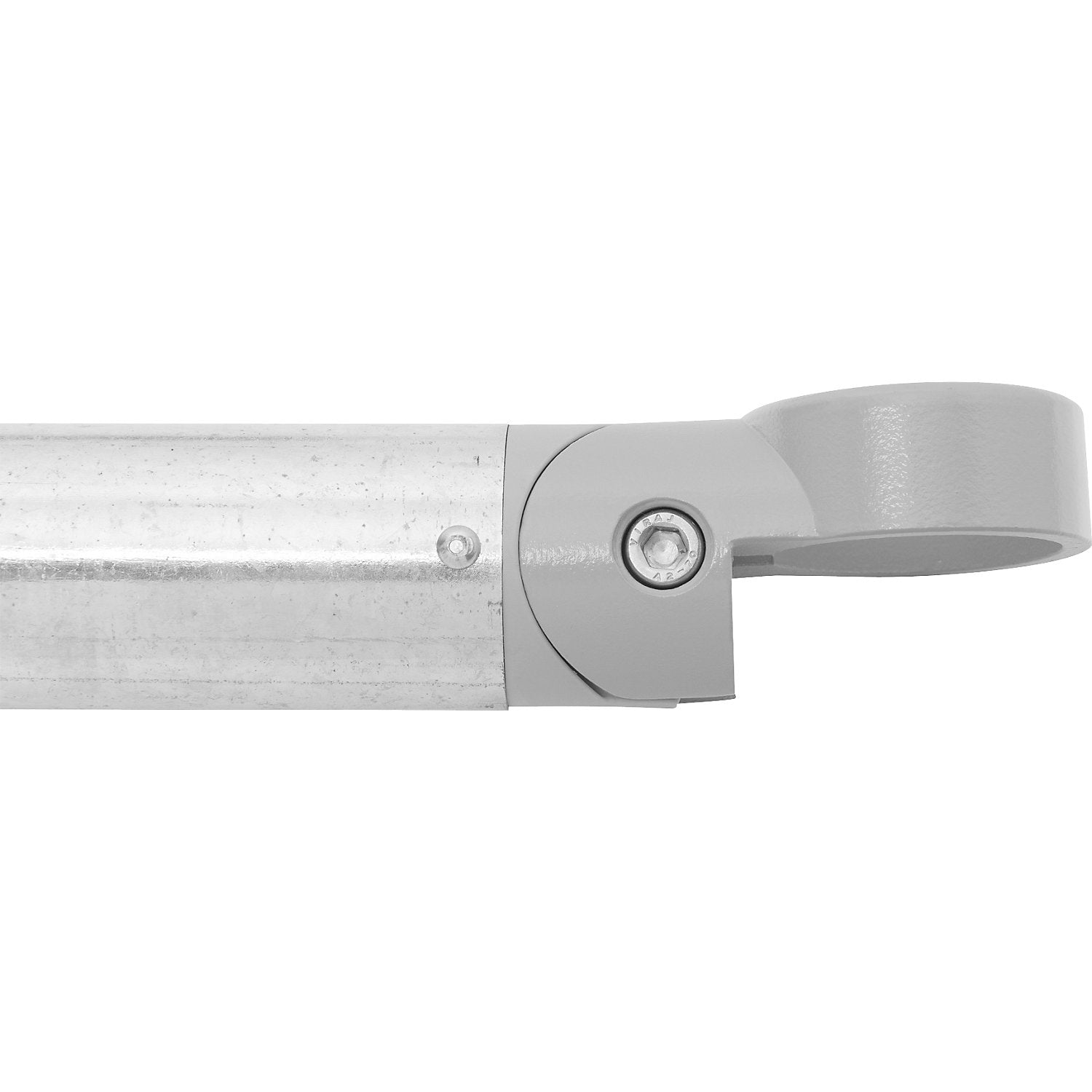

• The clamps are made of aluminium, and the connecting parts (inside the cross tube) of plastic
• For this reason, the tubes are not electrically conductive
• The clamping screws are made of V2A steel (stainless steel).
