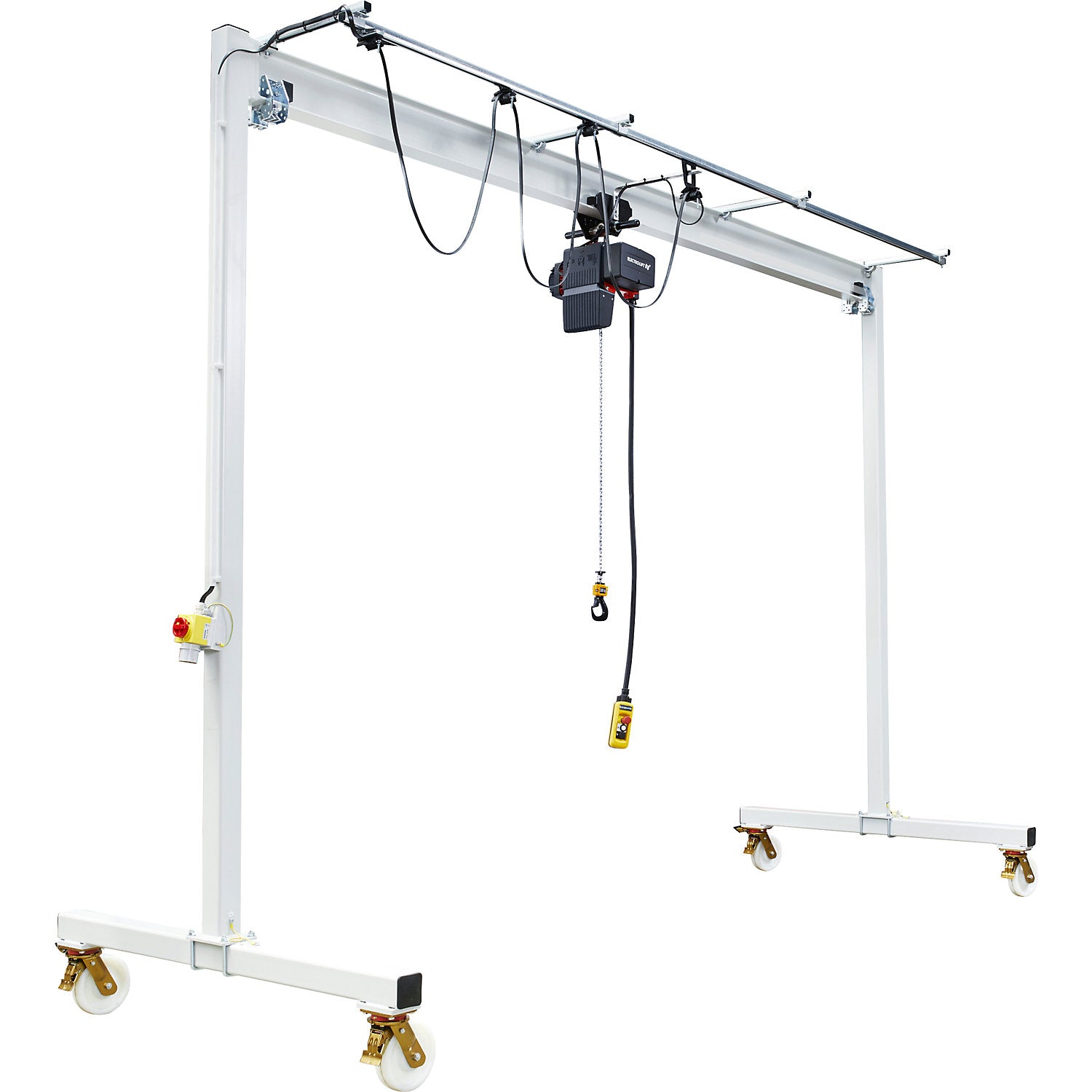

Steel mobile gantry crane PA, electric chain hoist and manual drive trolley, max. load 1000 kg, clearance width 6000 mm.

Estimated delivery: 51 days

Steel mobile gantry crane PA, electric chain hoist and manual drive trolley, max. load 1000 kg, clearance width 6000 mm

• Supplied = pre-assembled, final assembly by customer
• Max. load = 1000 kg
• Design of mobile gantry crane = crane with electric chain hoist and manual drive dolly
• Material = steel
• Track width = 6165 mm
• Clear width = 6000 mm
• Overall height from - to = 3280 mm
• Side support width = 1670 mm
• Max. lifting height = 2427 m
• Main lift = 4 m/min
• Precise lift = 1 m/min
• Operating voltage = 400 V / 50 Hz
• Control voltage = 24 V
• Weight = 487 kg
• Wheel fittings = 4 swivel castors with wheel stops, 2 with double stops
• Feature = mobile
• Colour = light grey RAL 7035
• Flange width = 120 mm
• Width = 6330 mm
• Max. hoist weight = 90 kg
• Product type = mobile gantry cranes
• Customs tariff number = 84261900
• Country of origin = DEU
• Gross weight = 527 kg
• Weight = 487 kg
• Sustainability = CO 2 footprint calculated
• Mobile crane for flexible and changing workplaces
• Compact design allows use in confined spaces
• Four swivel castors with parking brake, two with double stop

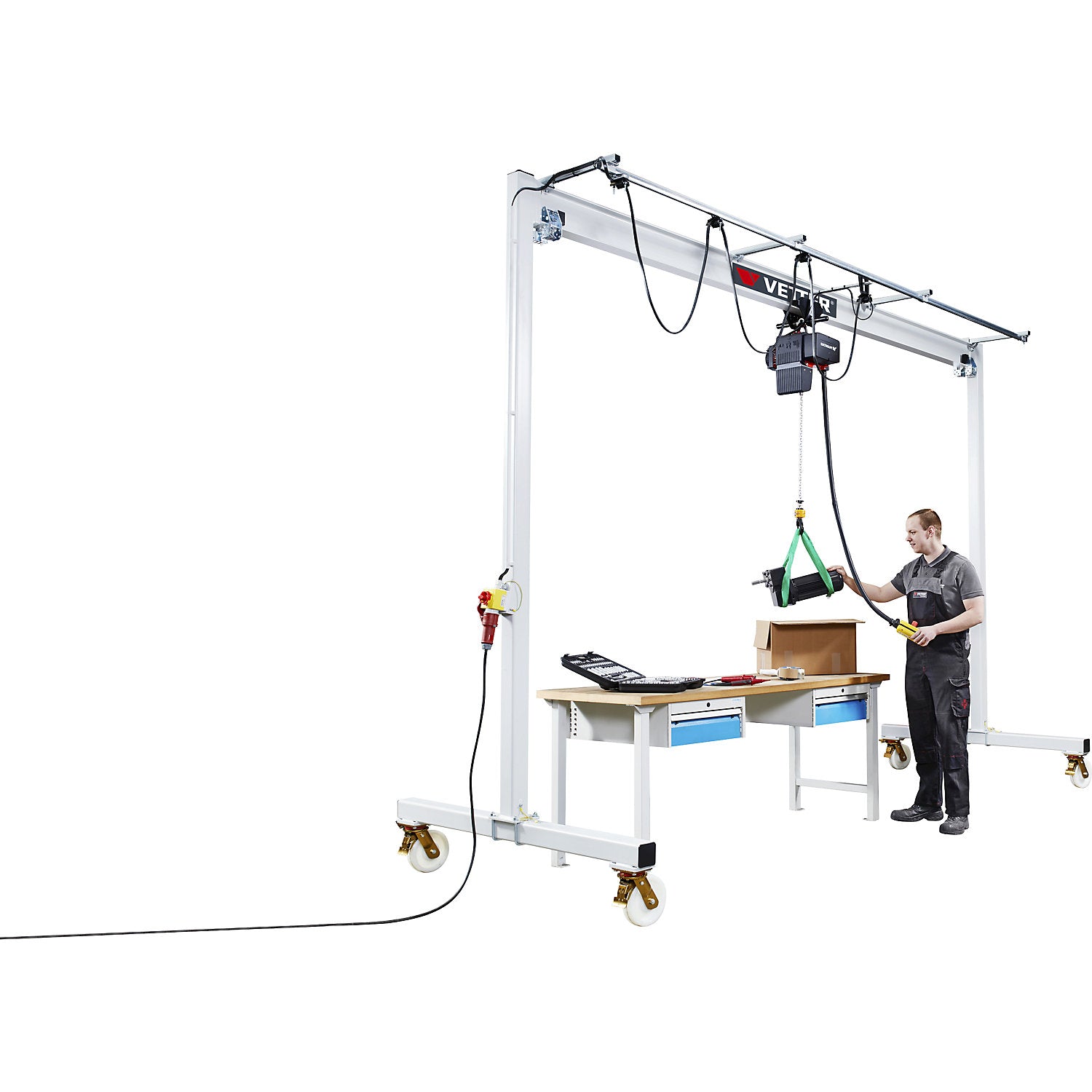

• This mobile gantry crane with 4 swivel castors with wheel stops, 2 with double stops, can be used in changing workplaces, wherever loads only need to be transported occasionally
• They can be raised and transported away effortlessly, e.g. when repairing machinery or performing installation work
• Because it is easy to dismantle, this crane is particularly suitable for use wherever there is a need to take action quickly
• The support height and crane track length can be adapted to the space available
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return.
