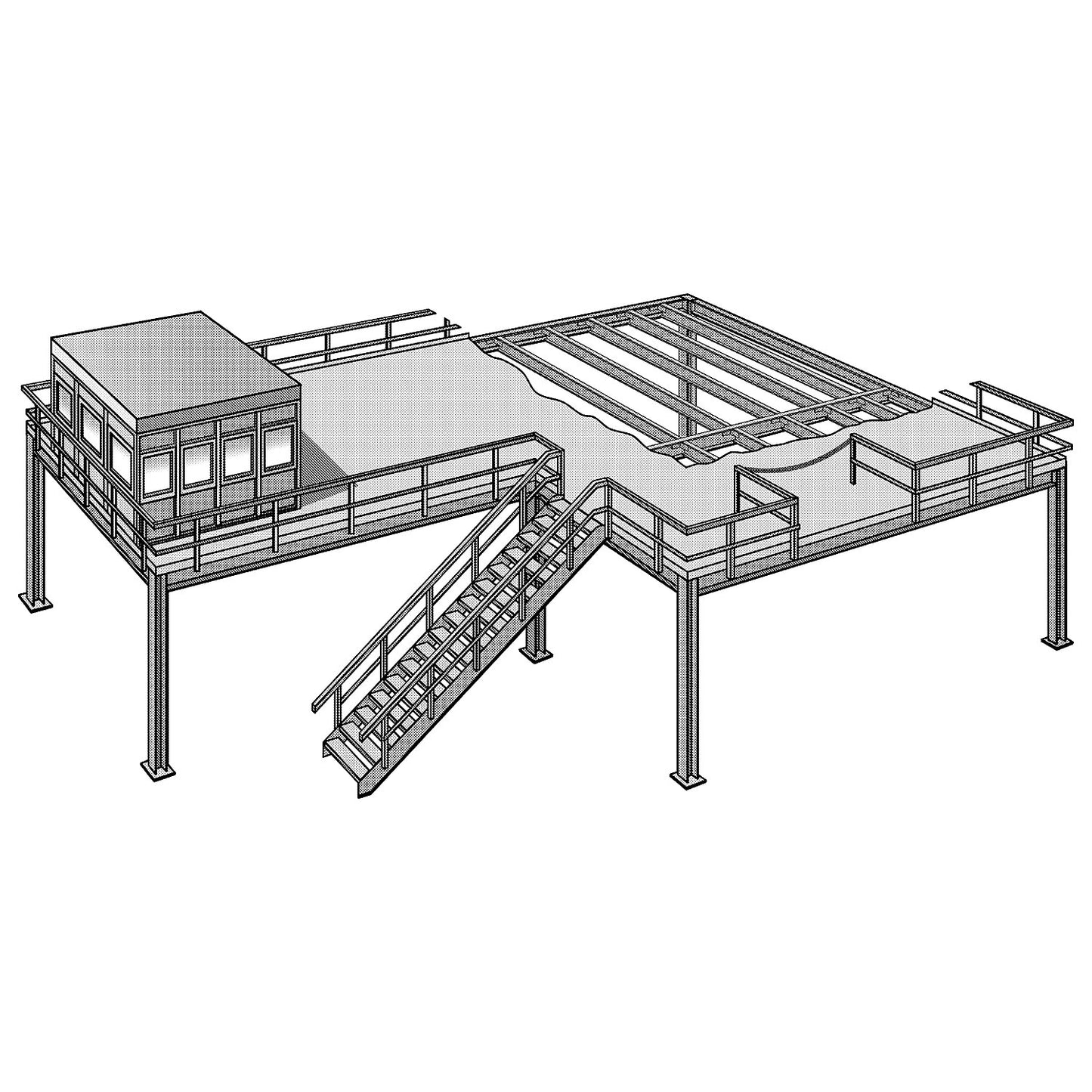

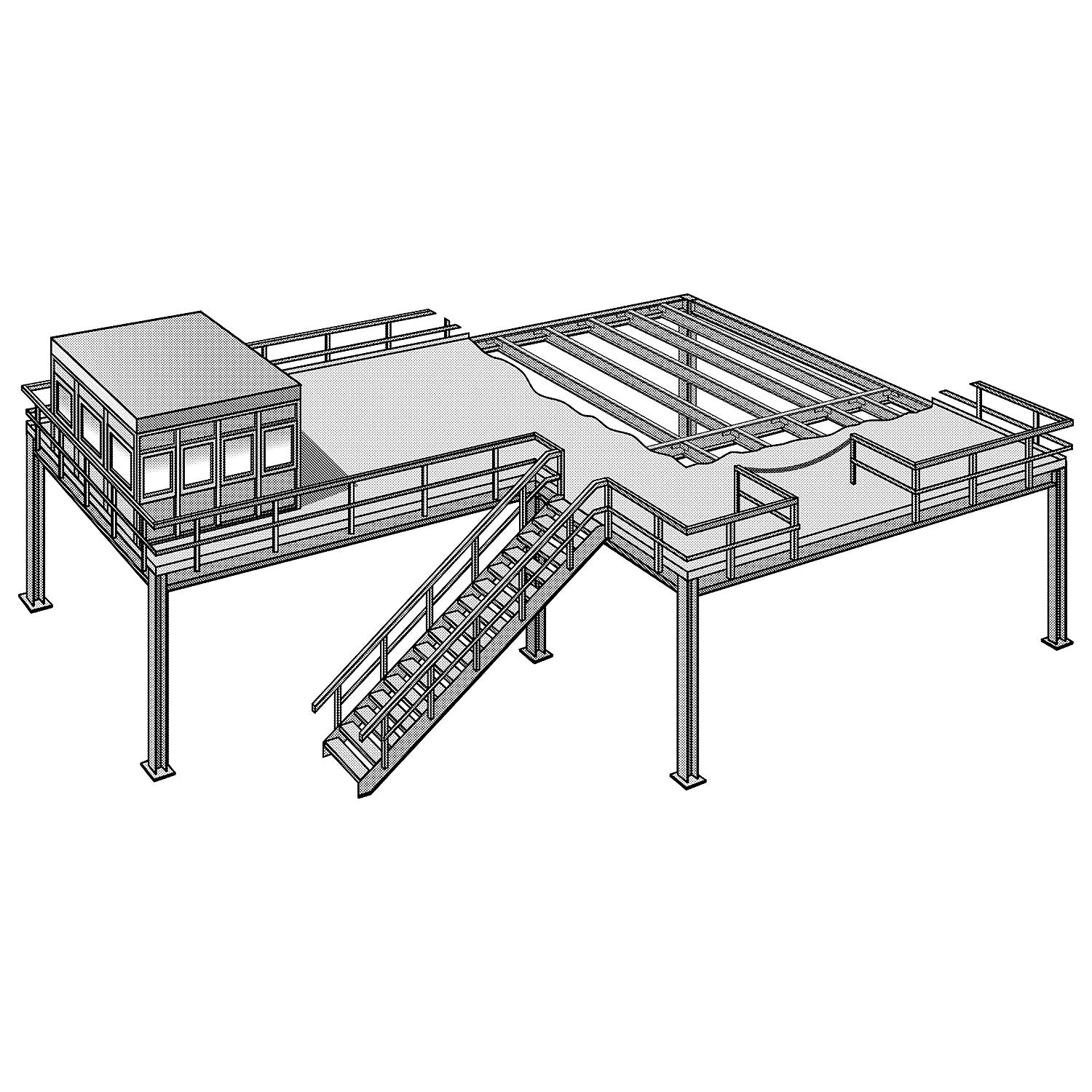

Mezzanine floor, standard shelf unit, max. surface load 500 kg/m², platform 5000 x 4000 mm.

Estimated delivery: 101 days

Mezzanine floor, standard shelf unit, max. surface load 500 kg/m², platform 5000 x 4000 mm

• Supplied = flat pack
• Material = uprights and beams made of hot rolled steel, purlins made of cold rolled profiles
• Finish = powder coated
• Model = standard unit
• Available colours = flame red RAL 3000, gentian blue RAL 5010, reseda green RAL 6011, light grey RAL 7035
• Design = screw connection
• Max. load = 500 kg/m²
• Platform = 5000x4000 mm
• Product type = mezzanine floors
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 1175 kg
• Weight = 1100 kg
• Sustainability = CO 2 footprint calculated
• Create new storage, working and office space
• The platform can be configured to suit the local conditions - and takes the accident prevention guidelines into account
• Bolted construction makes moving easy
• Modular, can be expanded at any time
• Material and construction Uprights and beams made of hot rolled steel
• Purlins made of cold rolled profiles
• The purlins are hooked-in to the beams so that no height is lost
• Floor covering Made of standard P4 chipboard panels, 38 mm thick
• Untreated on both sides
• With tongue and groove connection
• Surface High quality powder coating
• Choose from four standard colours: reseda green RAL 6011, gentian blue RAL 5010, flame red RAL 3000 or light grey RAL 7035
• Please specify the desired colour when ordering and the desired height of the module
• Standard heights: 2500 mm, 3000 mm, 3500 mm
• Other heights available at extra cost
• Other colours, mezzanine floors with load test certificate and professional on site installation available on request.
