Drum tipper, with chain loop and for use with a crane, zinc plated.

Estimated delivery: 56 days

Drum tipper, with chain loop and for use with a crane, zinc plated

• Supplied = assembled
• Finish = zinc plated
• Colour = zinc plated
• Max. fork cross section = 150x60 mm
• Distance across forks = 650 mm
• Height = 1010 mm
• Length = 650 mm
• Width = 1020 mm
• Max. load = 360 kg
• Forklift pocket spacing = 330 mm
• Fork pocket dimensions = 200x85 mm
• Material = steel
• Weight = 85 kg
• Product type = drum tippers
• Customs tariff number = 84312000
• Country of origin = ---
• Gross weight = 85 kg
• Weight = 85 kg
• Sustainability = CO 2 footprint calculated. 360° turning range for versatile tipping and emptying
• Drum holder with rotary mechanism
• Controlled tipping process via a continuous chain
• Can also be used for crane operation
• Secure drum fixing with eccentric clamp
• For 200 l steel drums
• Drum tipper for pick-up, transport and dosed emptying of 200 l steel drums The drum tipper with continuous chain and crane attachment enables safe pick-up, transport and controlled emptying of 200-litre steel drums with a diameter of 590 mm (+10/-25 mm)
• The robust drum handling device is suitable for steel bung drums and steel lid drums and can be used with both a forklift truck and a crane
• The drum bracket features a turning mechanism with a 360° turning range
• This allows the drum contents to be emptied specifically in the desired direction
• The tipping process is controlled via a continuous chain
• Controlled operation enables precise tipping and turning of the drum without having to move the container manually
• An eccentric clamp holds the drum securely in the bracket
• The sturdy mounting structure offers versatile application options for in-house transport

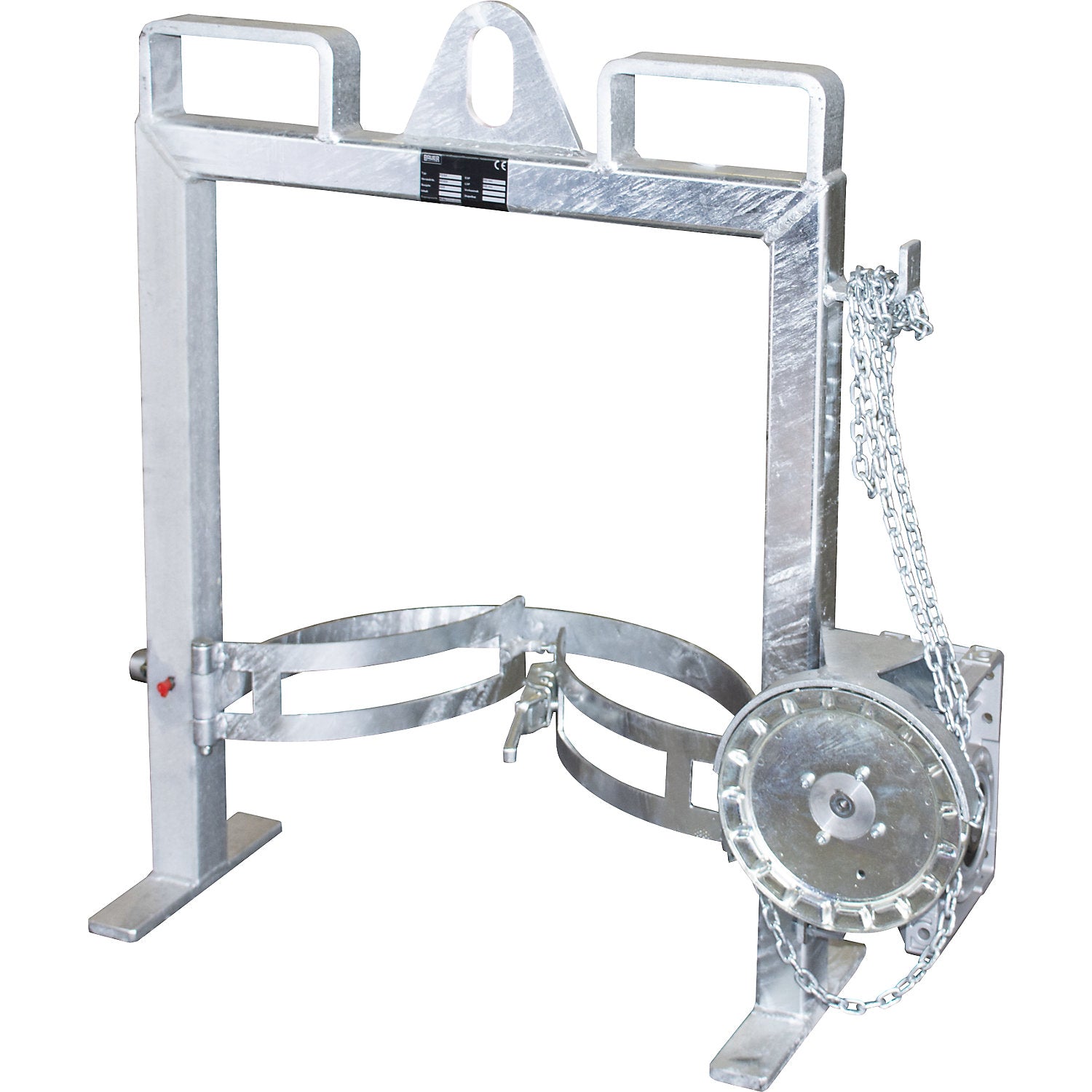

• The steel base frame is equipped with drive-in brackets for pick-up with a forklift truck and with a safety mechanism to prevent accidental slipping

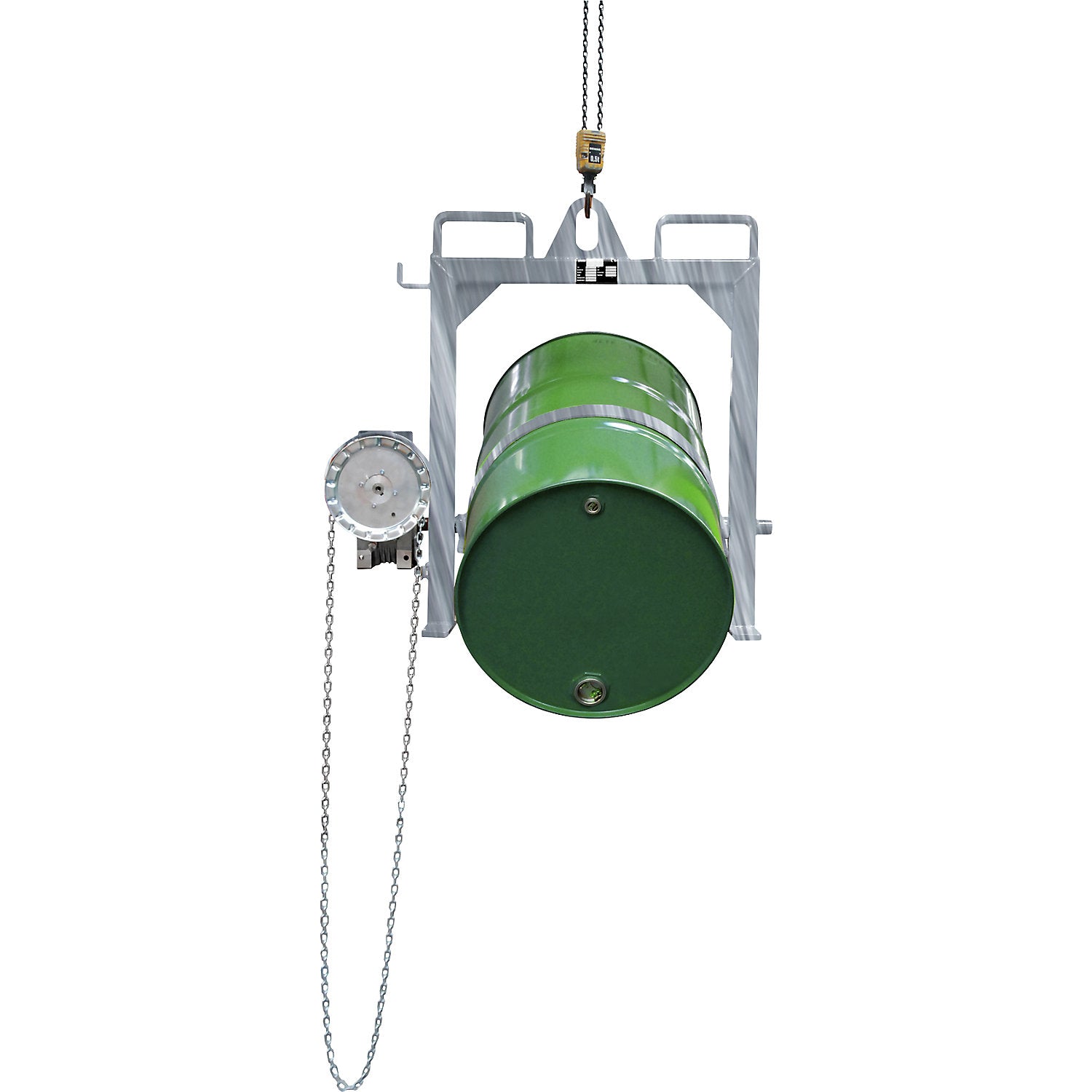

• In addition, a crane eye makes the tipper suitable for use with a crane as well
• With a max. load of 360 kg, the drum tipper is also suitable for filled 200-litre drums
• The drum tipper is available with an optional painted surface in yellow orange RAL 2000 or in a zinc plated model.
