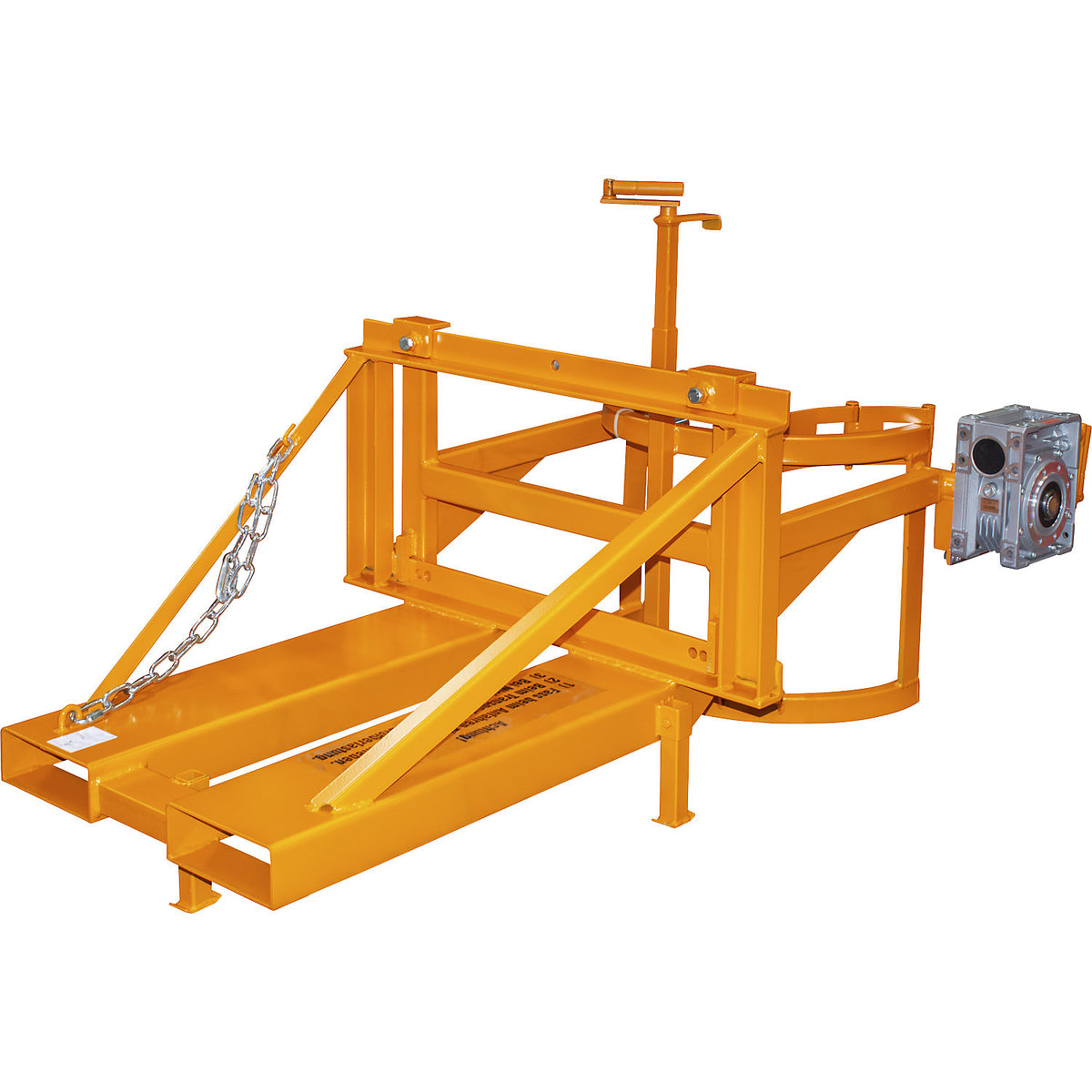

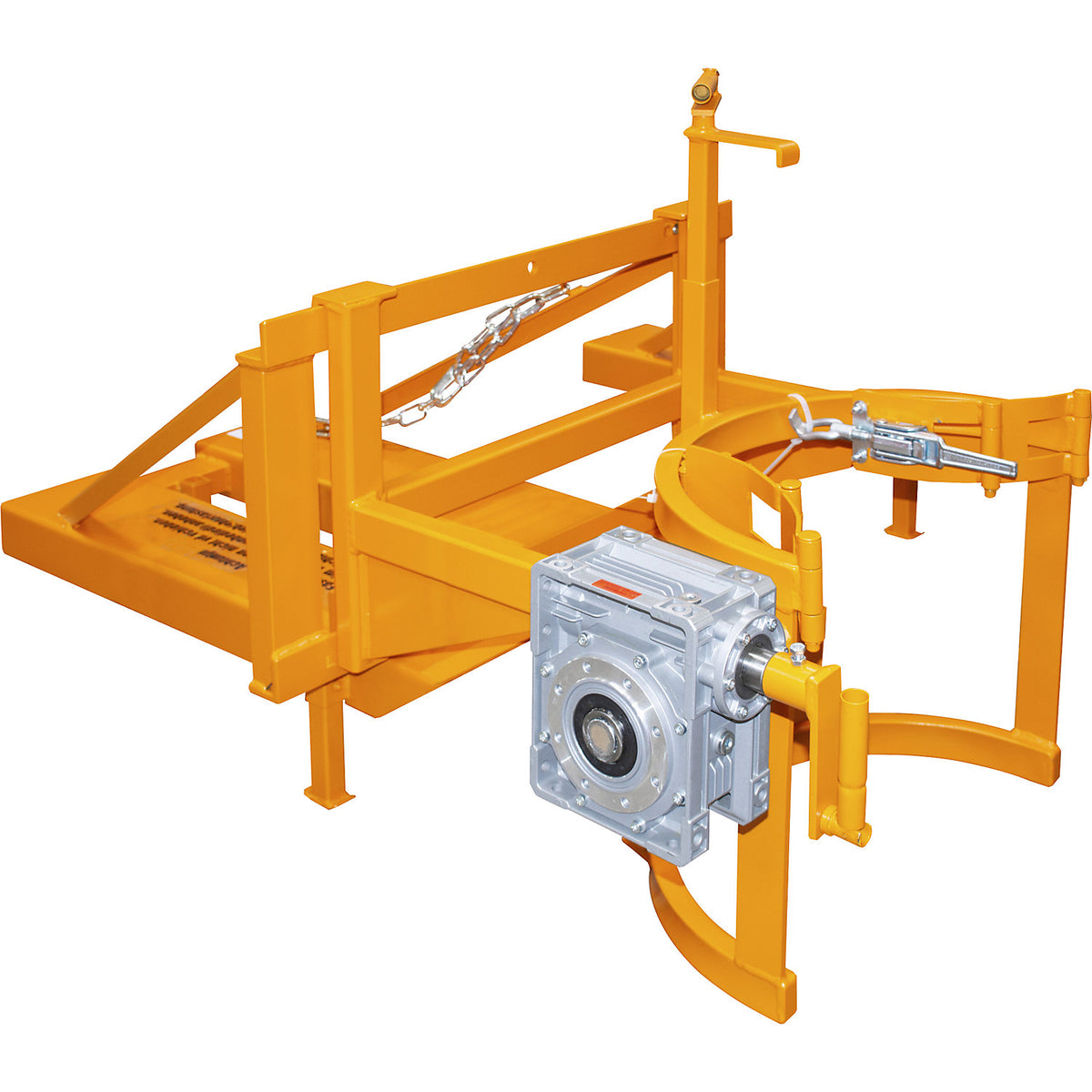

Drum tipper, with rotary mechanism and hand crank, yellow orange.

Estimated delivery: 56 days

Drum tipper, with rotary mechanism and hand crank, yellow orange

• Supplied = assembled
• Finish = painted
• Colour = yellow orange RAL 2000
• Max. fork cross section = 150x60 mm
• Distance across forks = 650 mm
• Height = 890 mm
• Length = 1940 mm
• Width = 1095 mm
• Max. load = 360 kg
• Forklift pocket spacing = 530 mm
• Fork pocket dimensions = 170x75 mm
• Material = steel
• Weight = 129 kg
• Product type = drum tippers
• Customs tariff number = 84312000
• Country of origin = ---
• Gross weight = 129 kg
• Weight = 129 kg
• Sustainability = CO 2 footprint calculated. 270° rotation range for versatile emptying
• Drum holder with rotary mechanism
• With screw-on rotary mechanism
• Tipping via hand crank
• Secure drum fixing via eccentric clamp and sturdy forklift pick-up
• Suitable for steel and plastic drums from 110 to 220 litres

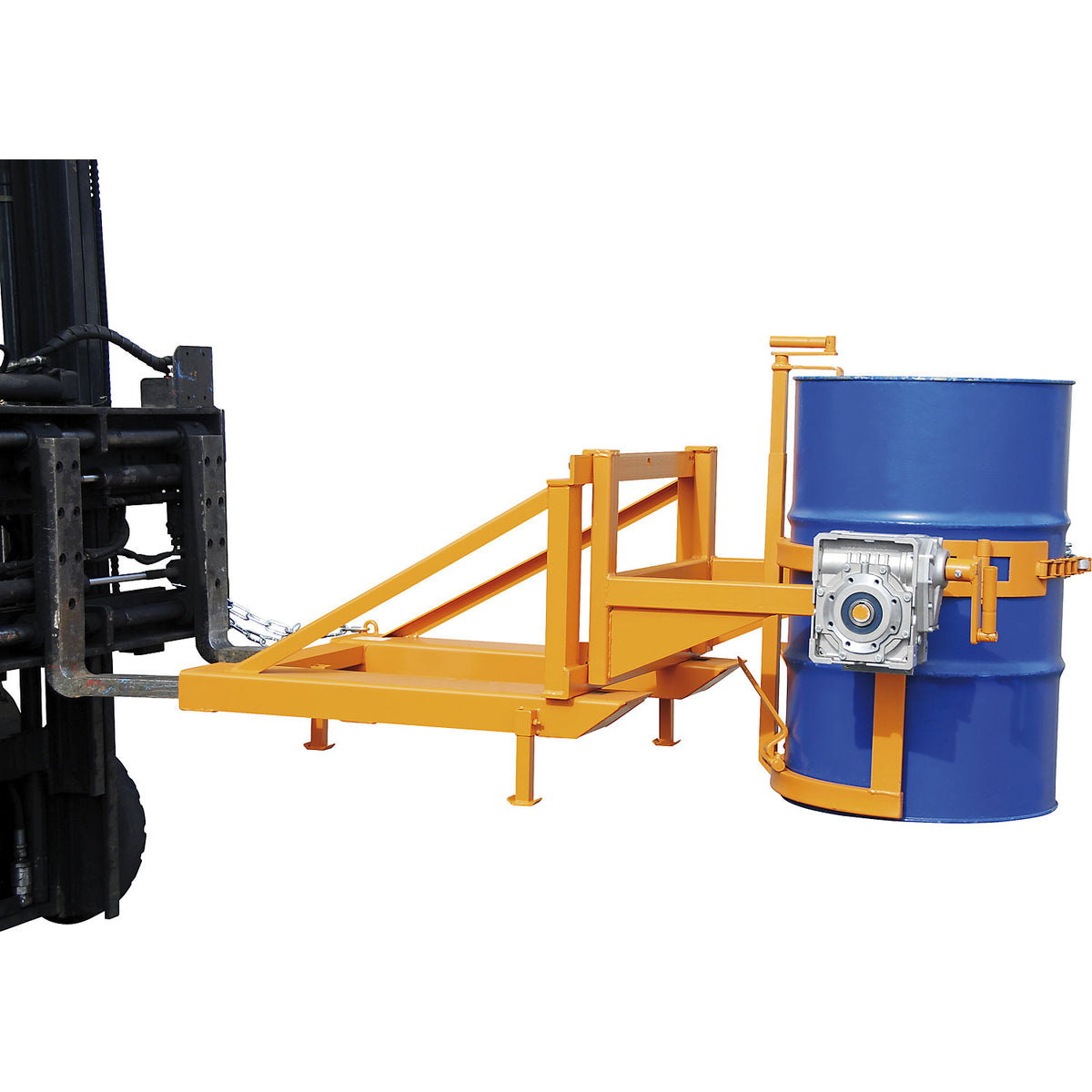

• The drum tipper with turning device and hand crank enables the safe picking up, transport and controlled emptying of steel and plastic drums
• The stacker attachment is suitable for steel bung drums, steel lid drums, rolling hoop drums, plastic L-ring drums, plastic double L-ring drums and plastic lid drums with a capacity of 110 to 220 litres and a diameter of 490 to 590 mm
• This supports efficient workflows in warehouse, production and disposal operations
• The bolt-on turning device offers a 270° rotation range
• The drum contents can thus be emptied specifically in the desired direction
• Tipping is carried out via a hand crank
• Manual operation enables controlled and precise positioning of the drum without the contents spilling out in an uncontrolled manner
• The drum holder with turning mechanism is securely closed via an eccentric clamp
• As a result, the drum remains reliably fixed during pick-up, transport and tipping
• A self-locking gearbox prevents unintentional reverse rotation and increases operational safety
• The sturdy steel base frame is designed for pick-up with a forklift truck
• A safety device protects against unintentional slipping off the vehicle
• With a max. load of 360 kg, the drum tipper is also suitable for heavy, filled drums
• The forklift pockets are designed for fork arms with a cross-section of 150 x 60 mm and a clear distance of 650 mm
• The drum tipper is available with an optional painted surface in yellow orange RAL 2000 or in a zinc plated model.
