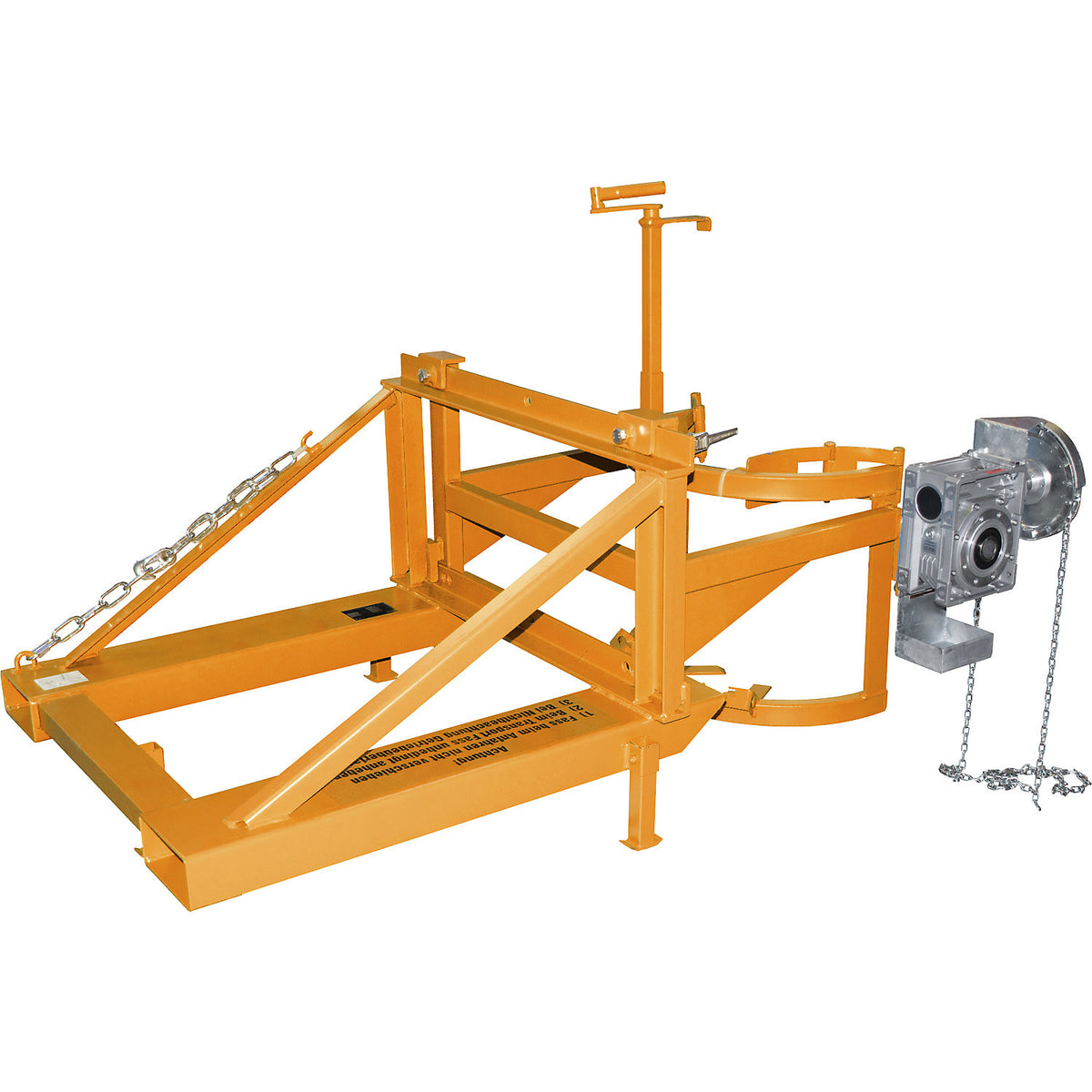

Drum tipper, with rotary mechanism and chain loop, yellow orange.

Estimated delivery: 56 days

Drum tipper, with rotary mechanism and chain loop, yellow orange

• Supplied = assembled
• Finish = painted
• Colour = yellow orange RAL 2000
• Max. fork cross section = 150x60 mm
• Distance across forks = 650 mm
• Height = 890 mm
• Length = 1940 mm
• Width = 1140 mm
• Max. load = 360 kg
• Forklift pocket spacing = 530 mm
• Fork pocket dimensions = 170x75 mm
• Material = steel
• Weight = 135 kg
• Product type = drum tippers
• Customs tariff number = 84312000
• Country of origin = ---
• Gross weight = 135 kg
• Weight = 135 kg
• Sustainability = CO 2 footprint calculated. 270° rotation range
• Drum holder with rotary mechanism
• With screw-on rotary mechanism
• Tipping process with continuous chain
• Drum holder with eccentric lock
• For steel and plastic drums from 110 - 220 litres
• The drum tipper with rotating device and endless chain enables the safe lifting, transport and controlled emptying of steel and plastic drums
• The stacker attachment is suitable for steel bung drums, steel lid drums, rolling hoop drums, plastic L-ring drums, plastic double L-ring drums and plastic lid drums with a capacity of 110 to 220 litres and a diameter of 490 to 590 mm
• As a result, it supports efficient workflows in warehouses, production and disposal
• The bolted-on rotating device offers a 270° rotation range
• This allows the drum contents to be emptied specifically in the desired direction
• The tipping process takes place via an endless chain and can be carried out in a controlled and gradual manner
• This makes turning and dispensing the drum contents easier
• The drum holder with rotating mechanism is securely closed via an eccentric clamp
• The drum remains reliably secured during lifting, transport and tipping
• A self-locking gearbox prevents unintentional reverse rotation and increases safety during emptying

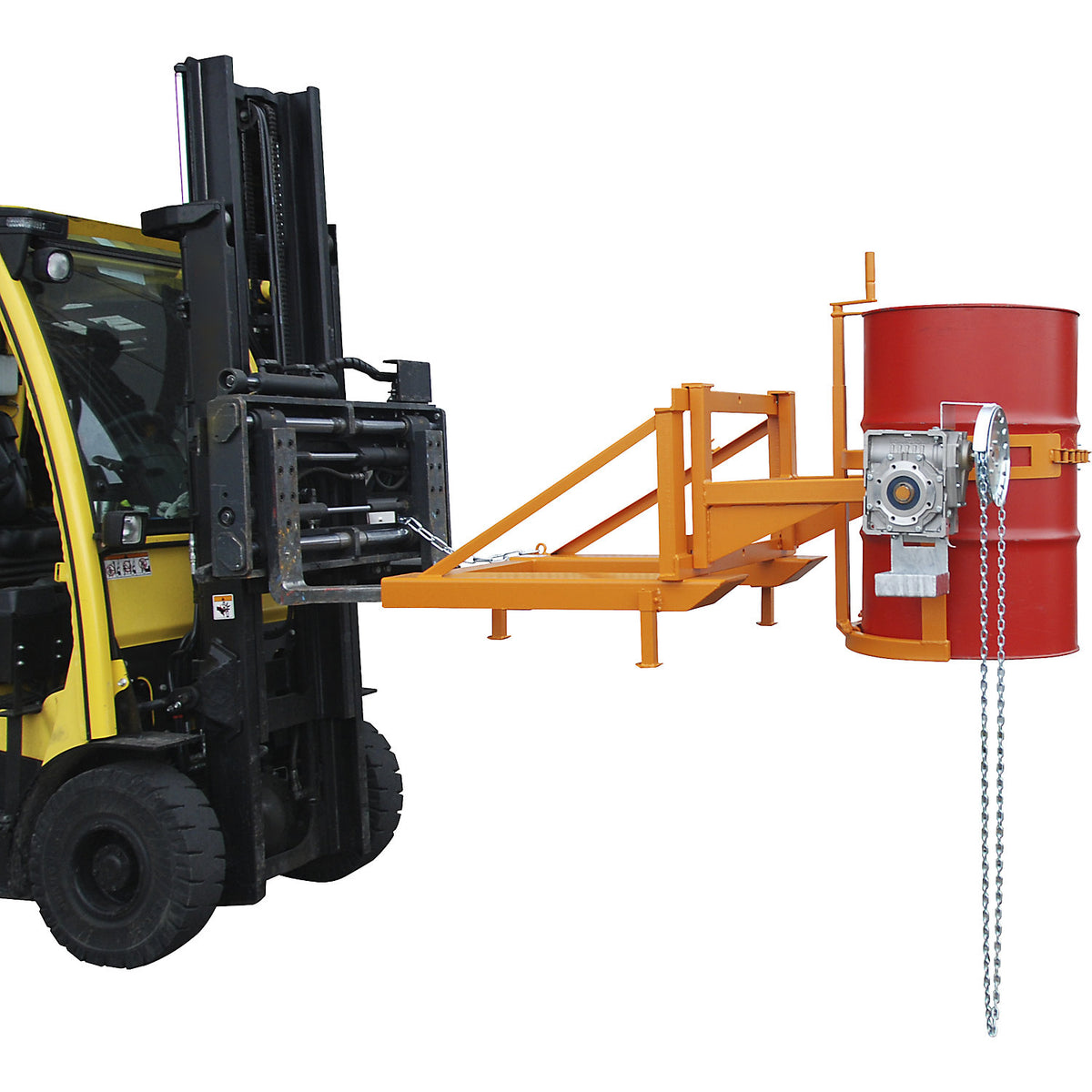

• The sturdy steel base frame is designed for use with a forklift truck
• A safety mechanism protects against accidental slipping
• With a max. load of 360 kg, the drum tipper is suitable for heavy, filled drums
• The forklift pockets are designed for fork arms with a cross-section of 150 x 60 mm and a clear distance of 650 mm
• The drum tipper is available with an optional painted surface in yellow orange RAL 2000 or in a zinc plated model.
