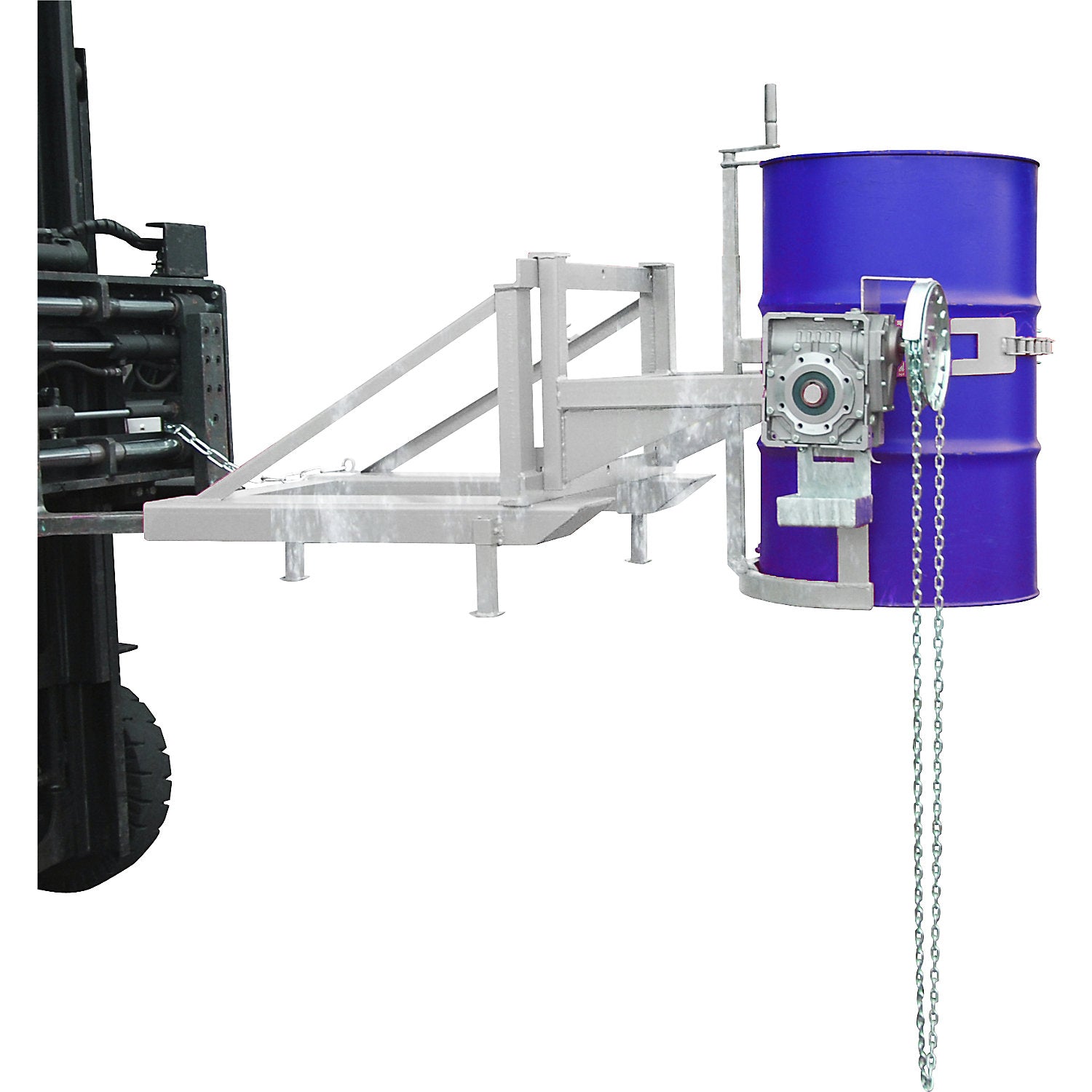

Drum tilting unit, with rotary mechanism and chain loop, zinc plated.

Estimated delivery: 49 days

Drum tilting unit, with rotary mechanism and chain loop, zinc plated

• Supplied = assembled
• Finish = zinc plated
• Colour = zinc plated
• Max. fork cross section = 150x60 mm
• Distance across forks = 650 mm
• Height = 890 mm
• Length = 1940 mm
• Width = 1140 mm
• Max. load = 360 kg
• Model = for forklift operation
• Weight = 144 kg
• Forklift pocket spacing = 530 mm
• Fork pocket dimensions = 170x75 mm
• Material = steel
• Product type = drum tippers
• Customs tariff number = 84312000
• Country of origin = ---
• Gross weight = 144 kg
• Weight = 144 kg
• Sustainability = CO 2 footprint calculated
• With bolted on rotary mechanism
• Tipping process with chain loop
• Drum holder with cam type lock
• For steel and plastic drums from 110 - 220 litres. 270° rotation
• Drum holder with rotary mechanism
• Drum tipper for use with a stacker for picking up and emptying steel bung drums, steel lidded drums, rolling hoop drums, plastic L-ring drums, plastic double L-ring drums and plastic lidded drums with a capacity from 110 to 220 litres
• For drum Ø 490 - 590 mm
• Stable base frame, protected from accidental slippage
• Self-locking gearbox.
