ASSISTENT AS post mounted jib crane, without electric chain hoist, max. load 250 kg, reach 5 m.

Estimated delivery: 52 days

ASSISTENT AS post mounted jib crane, without electric chain hoist, max. load 250 kg, reach 5 m

• Supplied = flat pack
• Swivel range = 270°
• Design of rotary crane = crane without electric chain hoist
• Flange width = 120 mm
• Overall height = 2845 mm
• Height of lifting gear = 433 mm
• Reach = 5000 mm
• Crane jib bottom edge = 2500 mm
• Colour = daffodil yellow RAL 1007
• Material = steel
• Product type = post mounted jib cranes
• Customs tariff number = 84261100
• Country of origin = DEU
• Gross weight = 435.2 kg
• Weight = 435 kg
• Sustainability = CO 2 footprint calculated
• Compact design, ideally suited for low rooms
• High quality craftsmanship
• Flexible assembly with several related products
• The versatile workplace crane is ideally suited for low and narrow workshops with little space
• Regardless of whether it is used in a hall or outdoors, the individual post height and the stabiliser length means it adapts perfectly to your needs
• With a swivel range of 270°, it can quickly and easily move loads or machine components to the closest workplace
• Constructed according to EN directives and EU machine guidelines for light industrial use
• Included in delivery: Standard electrical system with lockable mains cut-off switch and power supply to hoist
• Cable holding bracket up to 3 m jib length, round trailing cable for min. jib length of 4 m
• Dolly buffers on front and back
• Securing bolt system VAS2
• Detailed documentation is included in delivery

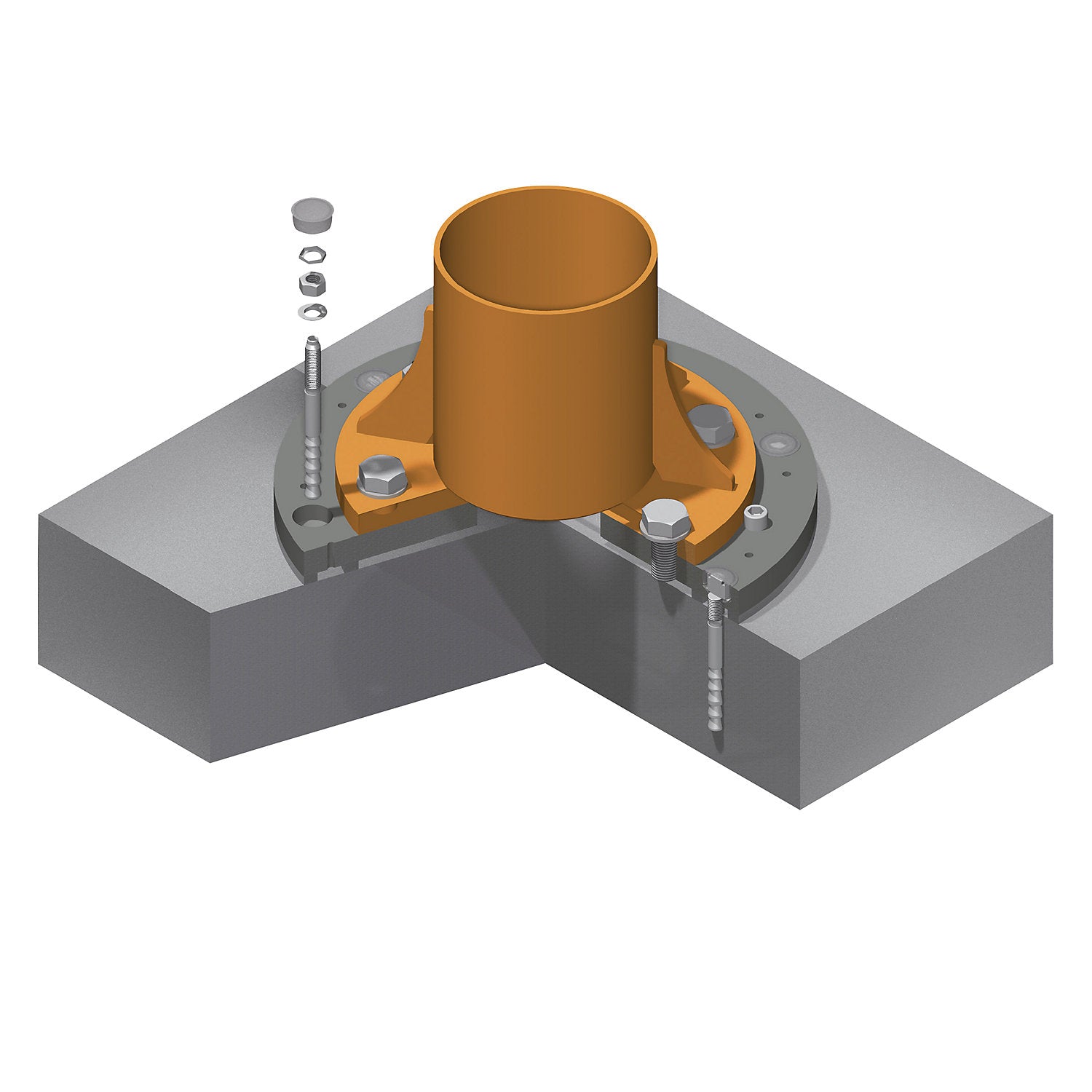

• Securing bolt system VAS2: For direct mounting to B25 concrete floors, min. thickness 170 mm
• Can be put into service immediately after assembly - no base casting required on even floor
• Uneven flooring (up to 10 mm) compensated by underlay
• Includes recessed plugs - no tripping hazard
• Does not include chassis and electric chain hoist
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return
• You couldn't find the right model? Other load capacities, reaches, overall heights, paint coats and mounting systems available on request.
