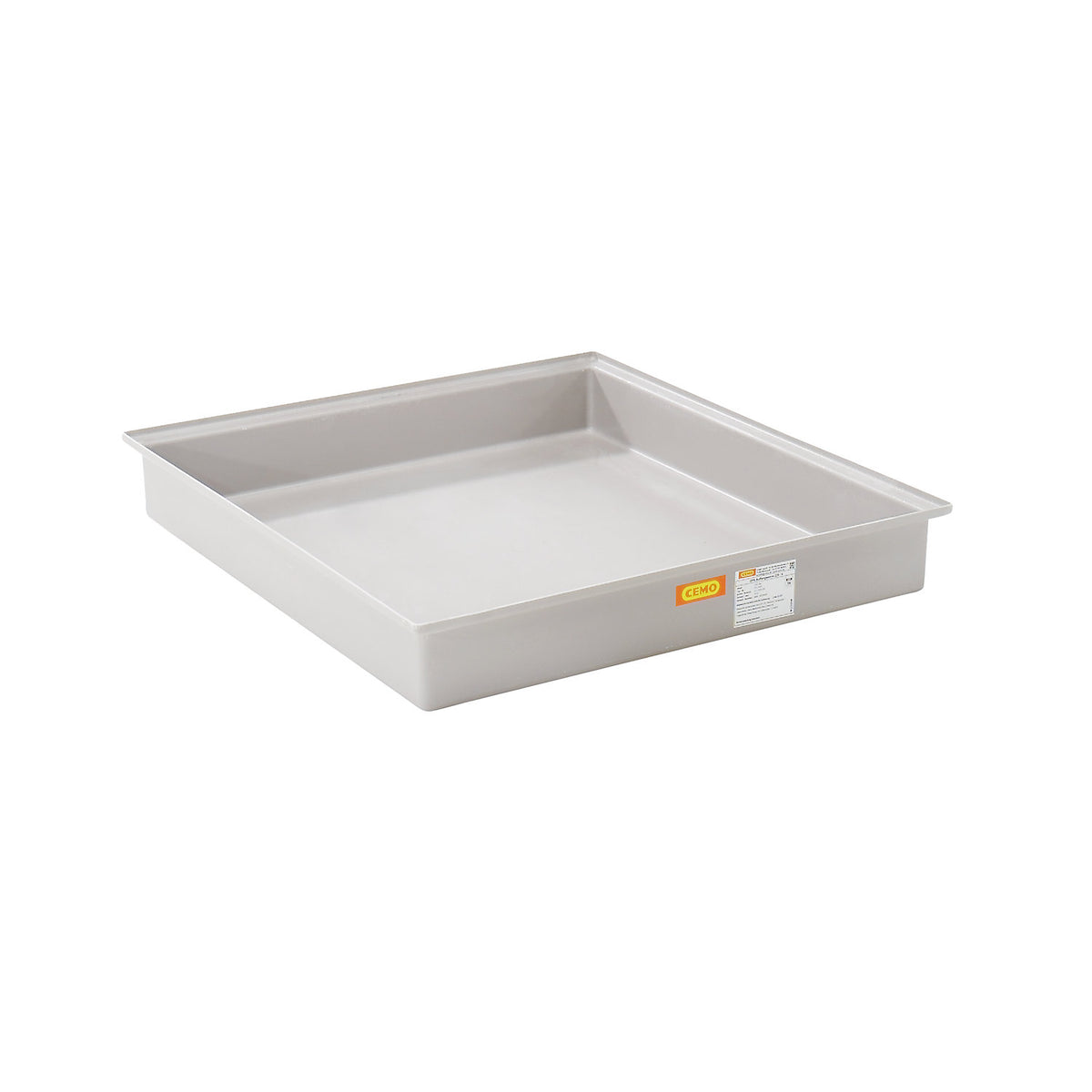

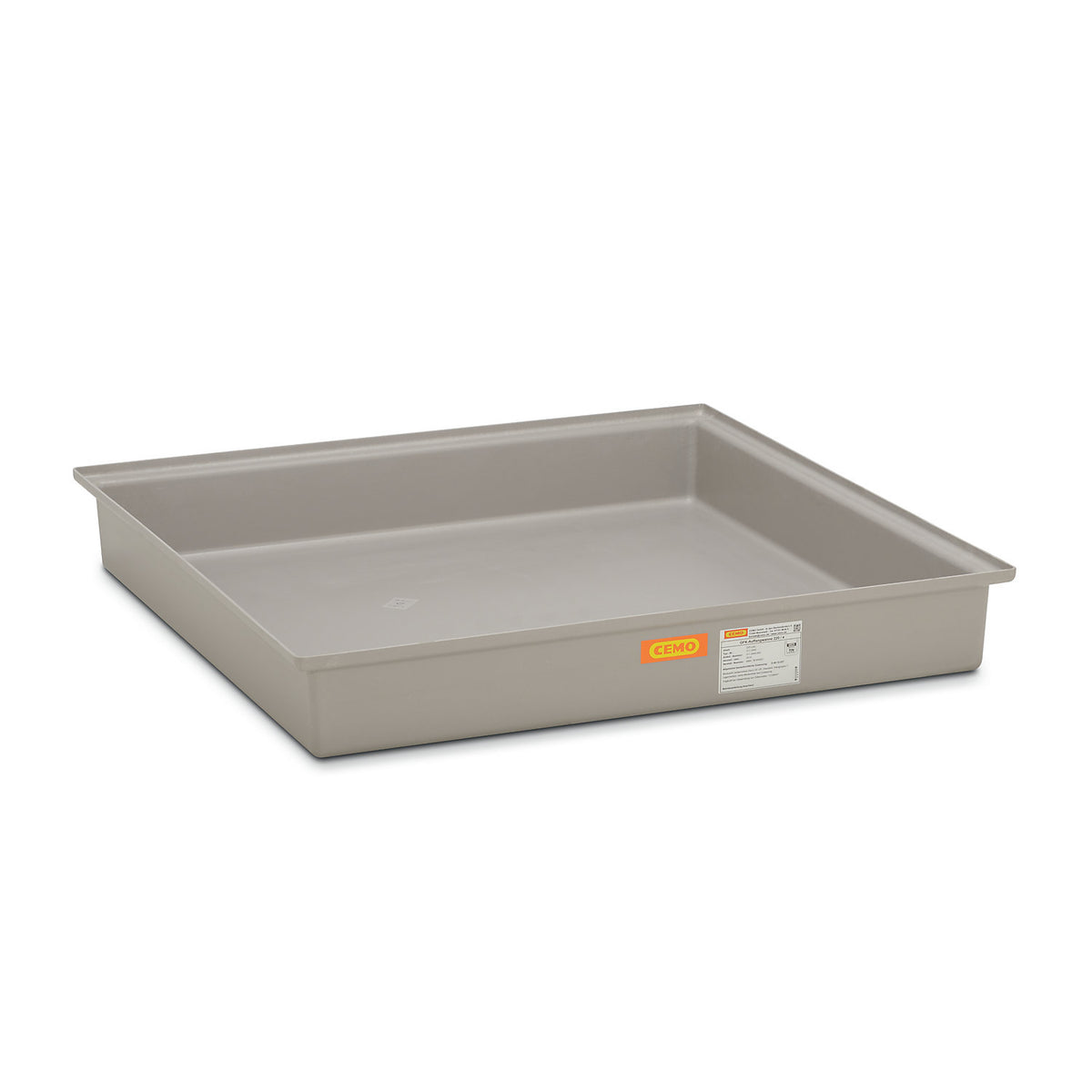

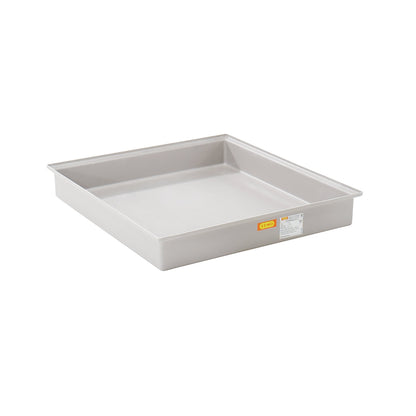

GRP base sump tray, with certification, 4 x 200 l drums, without grate.

Estimated delivery: 47 days

GRP base sump tray, with certification, 4 x 200 l drums, without grate

• Supplied = assembled
• Type of grate = without
• Sump capacity = 220 l
• Drum capacity = 4x200 l
• Length = 1280 mm
• Width = 1280 mm
• Height = 180 mm
• Colour = grey
• Material = glass fibre reinforced plastic
• Max. load = 1300 kg
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• For media = water hazardous dangerous goods, chemicals, acids and alkalis, oils
• Hazard class = for the storage of water hazardous liquids in GHS categories 1 - 4 as well as flammable liquids
• Customs tariff number = 39259080
• Country of origin = DEU
• Gross weight = 24.5 kg
• Weight = 18 kg
• Sustainability = CO 2 footprint calculated
• Highly resistant to oils, chemicals, acids and alkaline solutions, emulsions and cleaning agents with pH level up to 8
• Made of glass fibre reinforced plastic, corrosion resistant, can be placed directly on the ground
• Low overall height, easy drum handling
• For the storage of water-hazardous liquids in GHS categories 1 - 4
• For the storage of flammable liquids (flash point >55 °C)
• National technical approval Z-40.12-227 of the DIBt, Berlin
• The GRP floor sump tray, with approval, offers reliable protection for storing hazardous liquids
• The corrosion-resistant shallow tray made of glass-fibre reinforced plastic can be placed directly on the floor and also used in an interconnected floor-covering system
• The robust material is highly resistant to oils, chemicals, acids, alkalis, emulsions and cleaning agents up to a pH value of 8
• This makes the plastic sump tray suitable for a variety of operational applications and ensures it remains resilient even with regular contact with aggressive media
• The low overall height makes loading and removing drums easier
• Containers can thus be positioned easily and in a controlled manner in the sump tray
• At the same time, the shallow tray can be placed directly on the floor
• An additional pallet or substructure is not required for installation
• For larger storage areas, several trays can be combined with one another across the entire surface
• Leaking liquids are collected within the tray area
• This reduces the risk of floor contamination and makes inspection of the storage area easier
• The plastic sump tray thereby supports structured and safe hazardous materials storage in production areas, workshops and storage rooms
• The GRP floor sump tray is suitable for the storage of water-hazardous liquids of GHS categories 1 - 4 as well as flammable liquids (flash point >55 °C)
• The general technical approval Z-40.12-227 from the DIBt, Berlin, supports compliant use
• Suitable for operations where drums and other liquid containers are stored safely, in a space-saving manner and directly on the floor.
