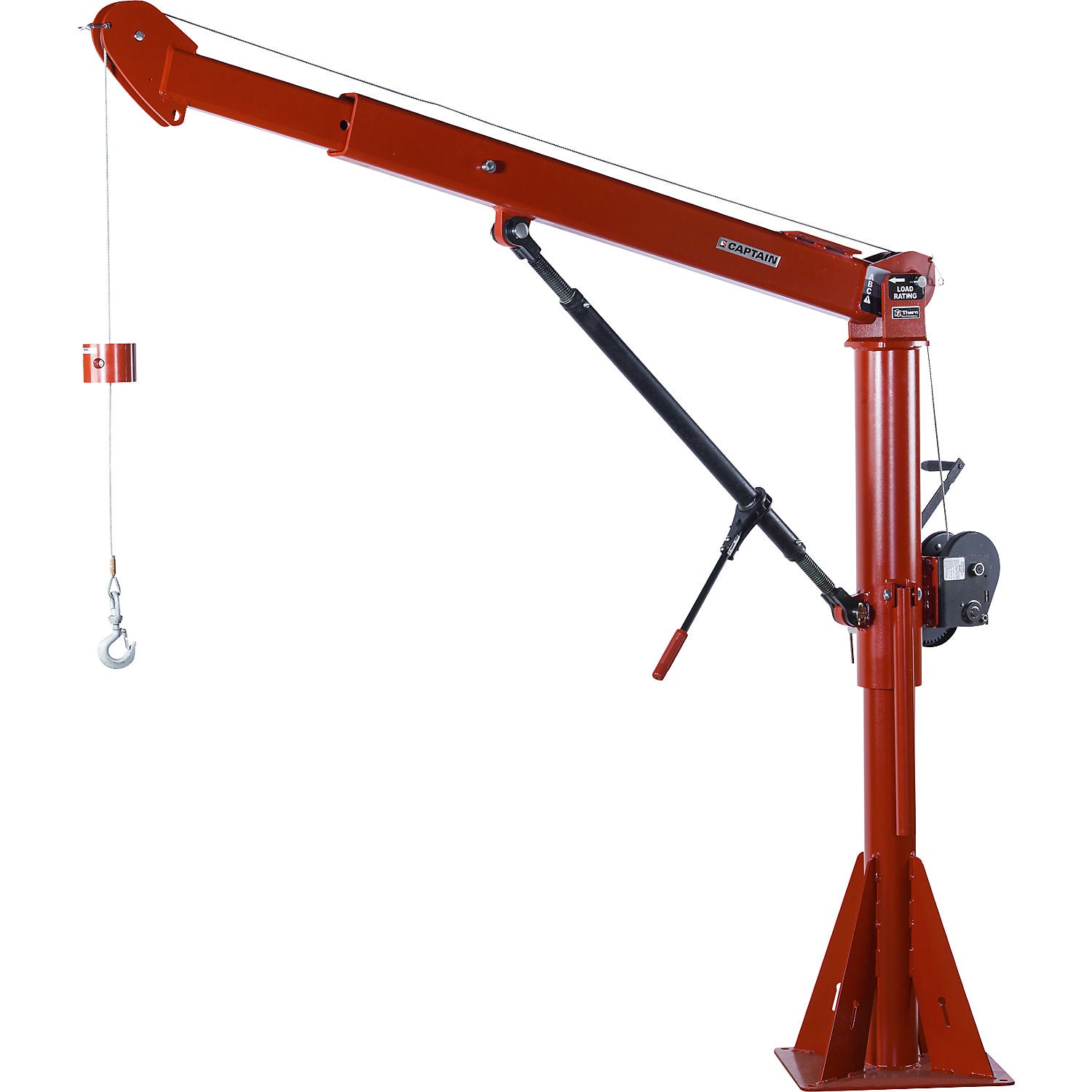

Capitan 2500 stationary davit crane, stationary, max. load 1270 kg.

Estimated delivery: 41 days

Capitan 2500 stationary davit crane, stationary, max. load 1270 kg

• Supplied = pre-assembled, final assembly by customer
• Max. load = 1270 kg

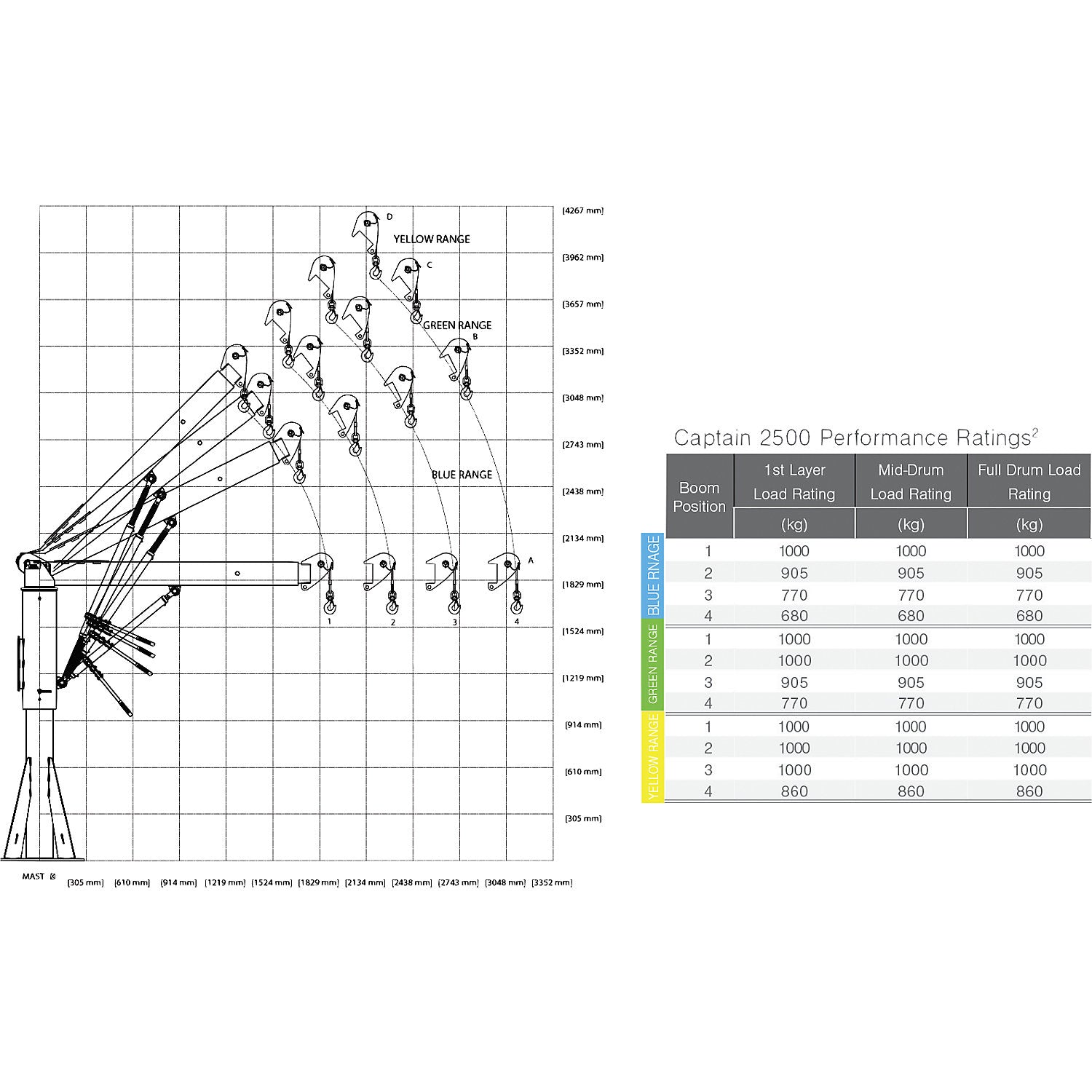

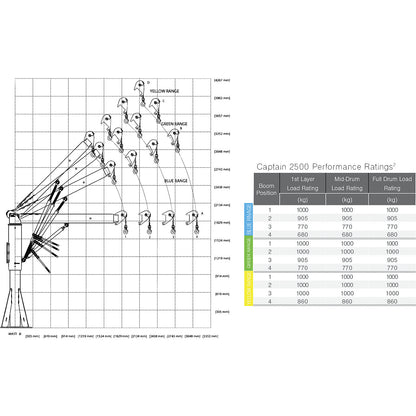

• Max. load (at jib length mm) = 1346 mm - 1270 kg, 1625 mm - 1180 kg, 1905 mm - 1000 kg, 2209 mm - 860 kg
• Colour = red
• Width = 3098 mm
• Height = 3810 mm
• Length = 3098 mm
• Lifting height max. cantilever arm extended = 3810 mm
• Max. crane arm length = 3098 mm
• Min. crane arm length = 1346 mm
• Finish = painted
• Max. hook height with max. crane arm angle = 3810 mm
• Max. hook height with min. crane arm angle = 1825 mm
• Weight = 291 kg
• Material = steel
• Product type = slewing cranes
• Customs tariff number = 84263000
• Country of origin = USA
• Gross weight = 395 kg
• Weight = 291 kg
• Sustainability = CO 2 footprint calculated
• Large range
• Swivels 360°
• Telescopic crane arm with 4 easily adjustable operating positions
• Adjustable crane arm angle adjustable by means of ratchet tensioner
• Robust and suitable for stationary use in demanding environments
• Supplied complete with: crane with painted base, manual wire rope winch with zinc plated spur gear transmission, stainless steel rope with load hook, Ø 9.5 mm, length 13.5 m
• Without a set of bolts for mounting (see Accessories).
