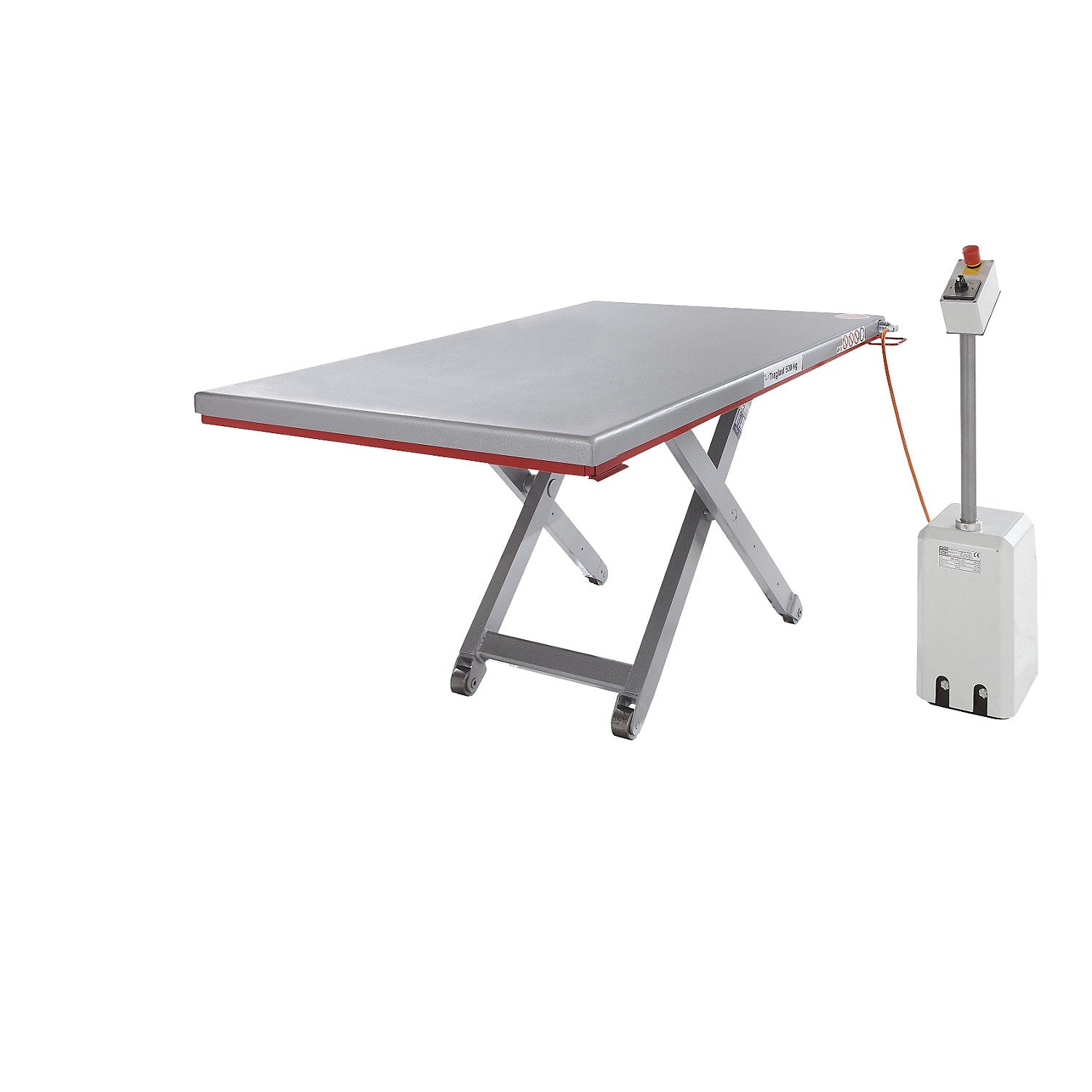

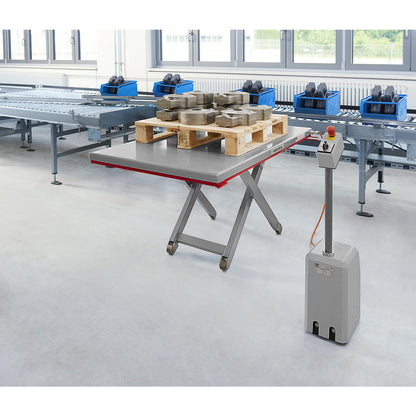

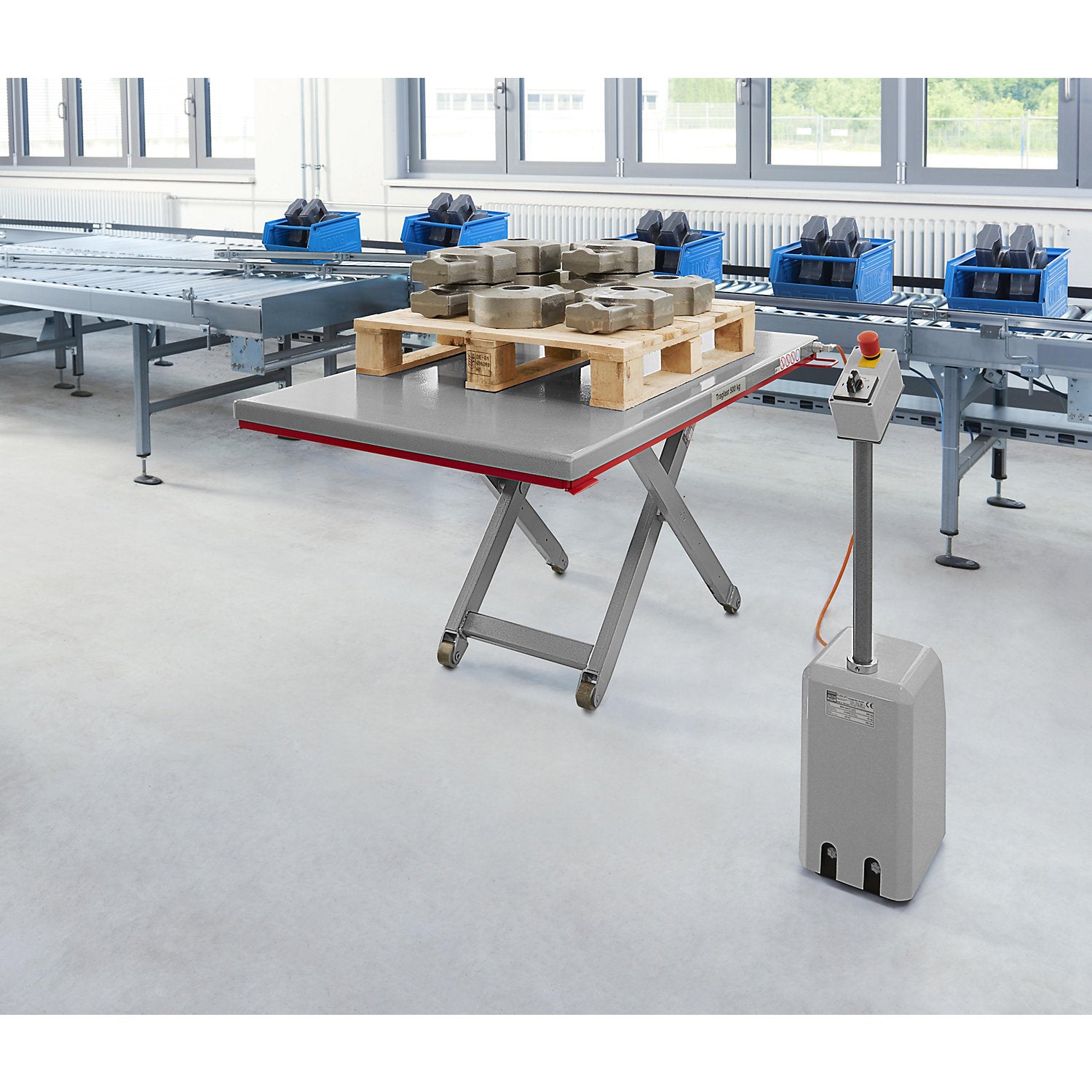

Low profile lift table, G series, max. load 1500 kg, lifting range 90 - 850 mm, LxW 1600 x 900 mm, 400 V 3-phase.

Estimated delivery: 51 days

Low profile lift table, G series, max. load 1500 kg, lifting range 90 - 850 mm, LxW 1600 x 900 mm, 400 V 3-phase

• Supplied = assembled
• Max. load = 1500 kg
• Lifting range = 90 - 850 mm
• Platform design = closed
• Lifting time = 25 sec
• Operating voltage = 400 V 3-phase AC
• Lift drive = compact hydraulics
• Platform colour = hammer tone silver
• Platform material = sheet metal
• Material = ST 52 tool steel
• Finish = painted
• Frame colour = hammer tone silver
• Fittings = with 4 rollers in base
• Lifting capacity at full load in 1 shift operations = max. 20 cycles per hour
• Lifting capacity at full load in multiple-shift operations = max. 10 cycles per hour
• Platform width = 900 mm
• Platform length = 1600 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = DEU
• Gross weight = 315 kg
• Weight = 290 kg
• Sustainability = CO 2 footprint calculated
• Made in Germany by FLEXLIFT
• For Euro pallets, industrial pallets, mesh pallets
• All-round foot clearance without a floor frame for top ergonomics
• Portable compact hydraulic power unit with manual operation on the stand
• Closed platform
• Ideally suited for loose items, crates, boxes and stacks of paper
• Supplied with 4 castors for transport as standard
• Loaded with pallets using counterbalance forklift or with optional ramp element and pallet truck
• Premium quality hydraulic components
• Non-electric foot protection contact rail, completely hydraulic operation
• Extraordinarily stable! Solid full steel scissor mechanism made of ST-52 tool steel
• The entire drive technology and the hydraulic cylinders are protected from shock and dirt by a 5 or 6 mm thick sheet metal platform
• High quality 2 layer paint finish in Hammerite silver
• Compliant with the Machinery Directive, EN 1570-1
• Mobile delivery, also stationary upon request
• Fix point bearing upon request, please specify when ordering
• Options available at no extra cost: Hand control with 3 m cable or foot switch
• Stationary model can also be made mobile by means of a fixed point bearing
• Alternatively using 4 fixed castors. 10 year guaranteed provision with replacement parts for all FLEXLIFT lifting tables
• On request: Other dimensions, lifting heights, max. loads, reduced lifting time, zinc plated or made of V2A stainless steel, ribbed sheet steel platform, ATEX compliant explosion protection.
