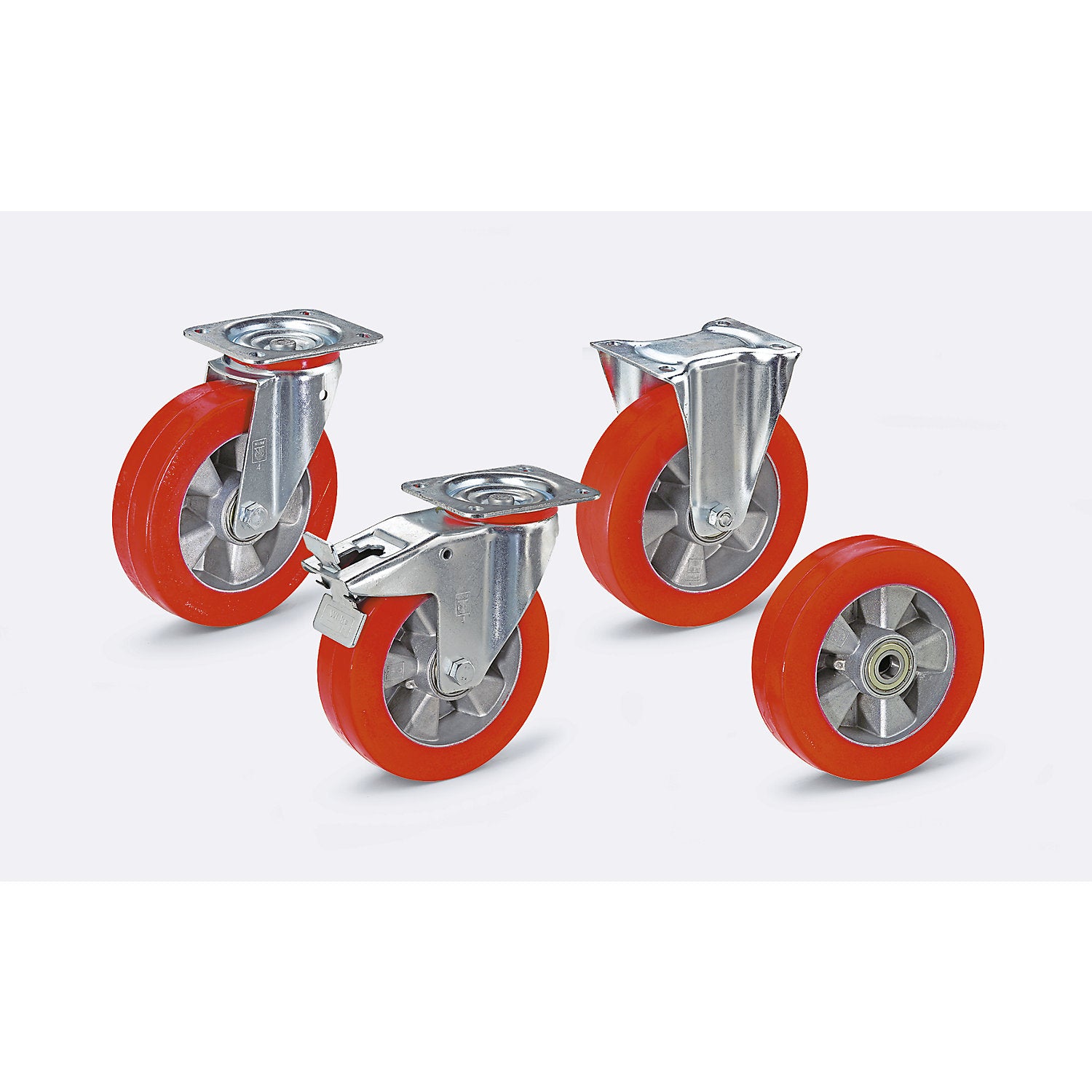

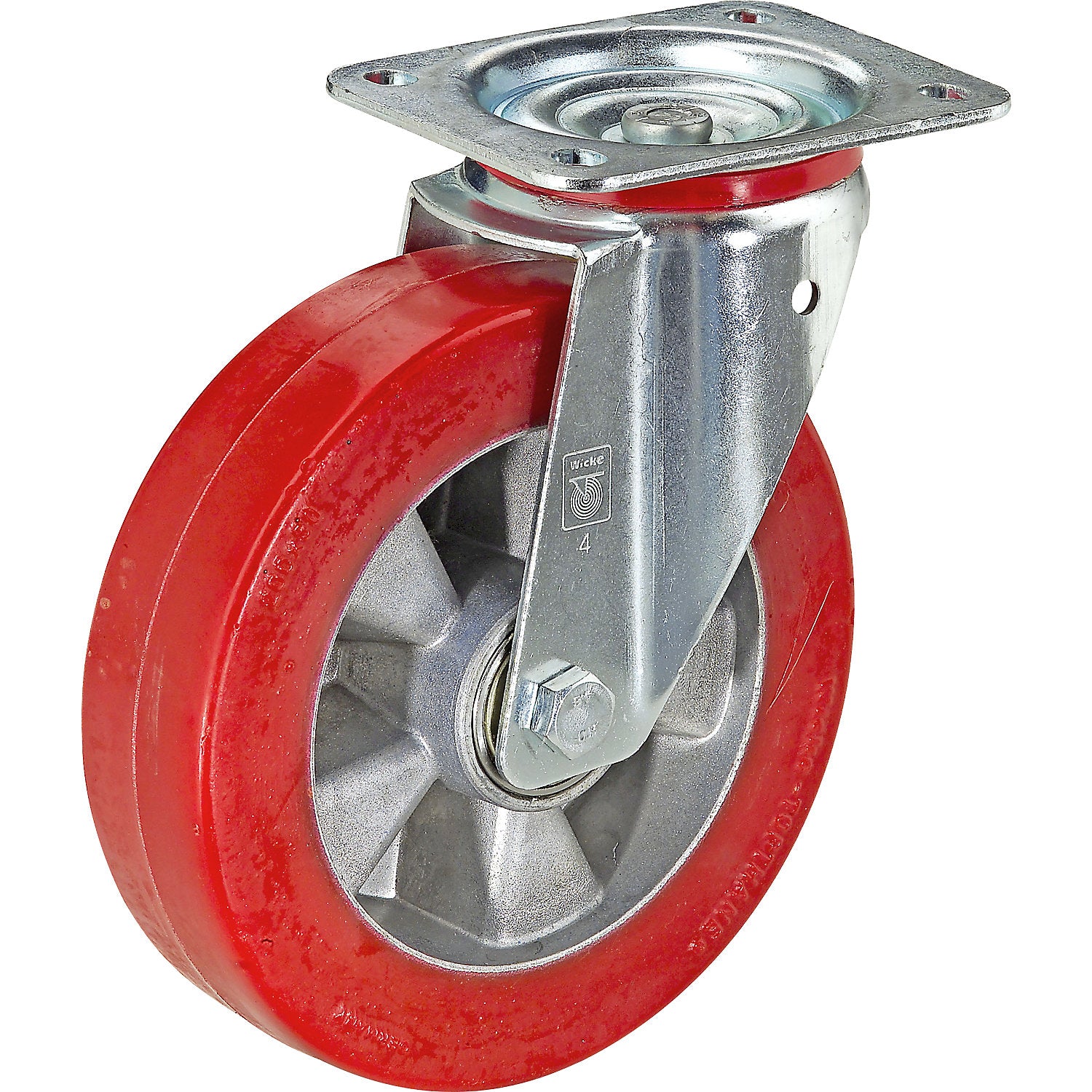

Polyurethane tyre on aluminium rim, wheel Ø x width 200 x 50 mm, swivel castor.

Estimated delivery: 29 days

Polyurethane tyre on aluminium rim, wheel Ø x width 200 x 50 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 200 mm
• Structure = swivel castor
• Wheel material = polyurethane (PU) - elastic
• Material of rim = aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 300 kg
• Wheel width = 50 mm
• Overall height = 235 mm
• Wheel bearing = ball bearing
• Temperature resistance = -5 °C to +80 °C
• Swivel castor offset = 54 mm
• Screw hole diameter = 11 mm
• Hub length = 60 mm
• Hub bore = 20 mm
• Fixed castor plate dimensions = 135x114 mm
• Swivel castor plate dimensions = 135x110 mm
• Screw hole spacing = 105x75 - 80 mm
• Housing surface = zinc plated
• Shore hardness = 75 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 4.32 kg
• Weight = 3.2 kg
• Sustainability = CO 2 footprint calculated
• On aluminium rim
• Non-marking due to special composition
• Hardwearing and cut resistant
• Hardness 75 Shore A
• Temperature resistant from -5 °C to +80 °C

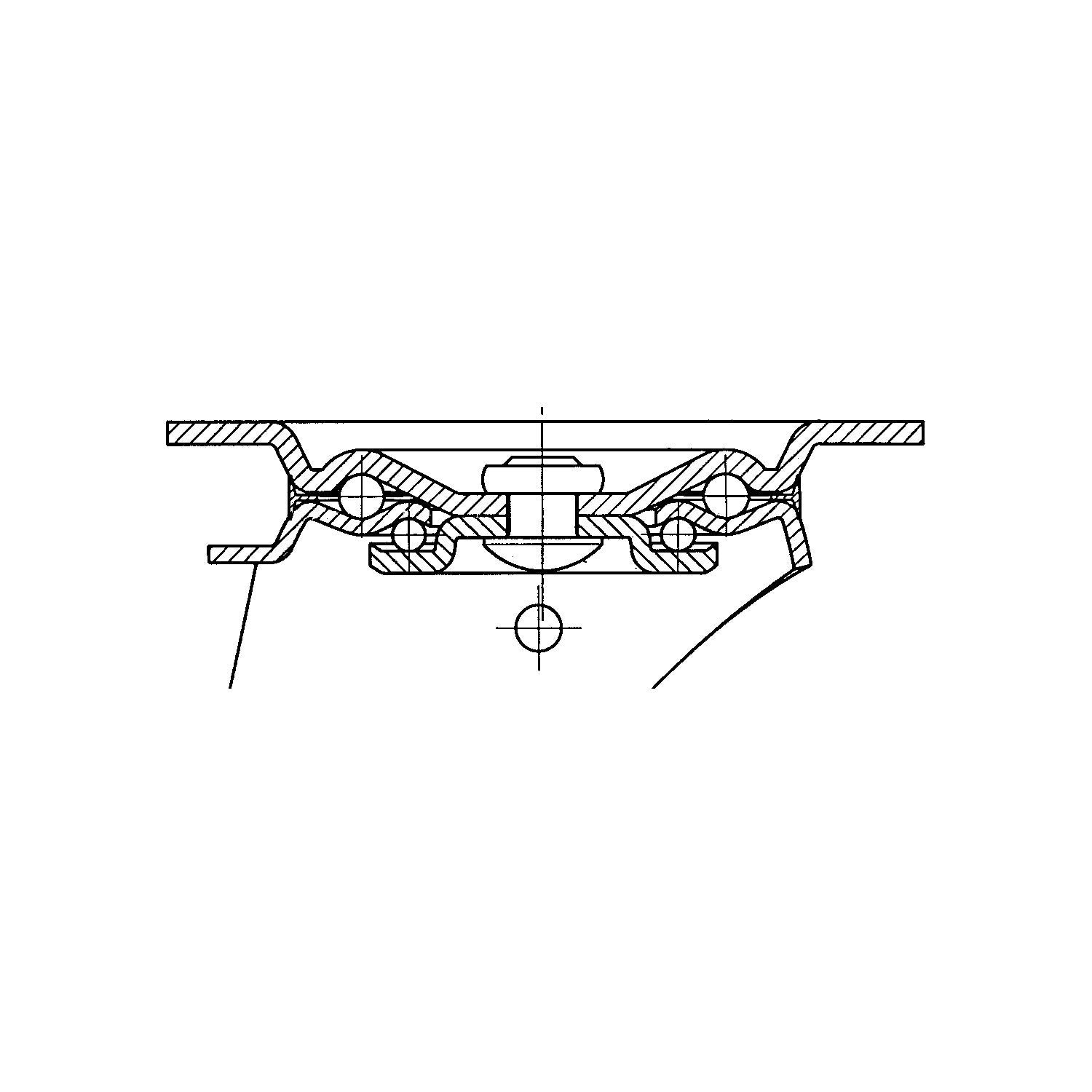

• Swivel bearing with double ball race, swivel bearing protection.
