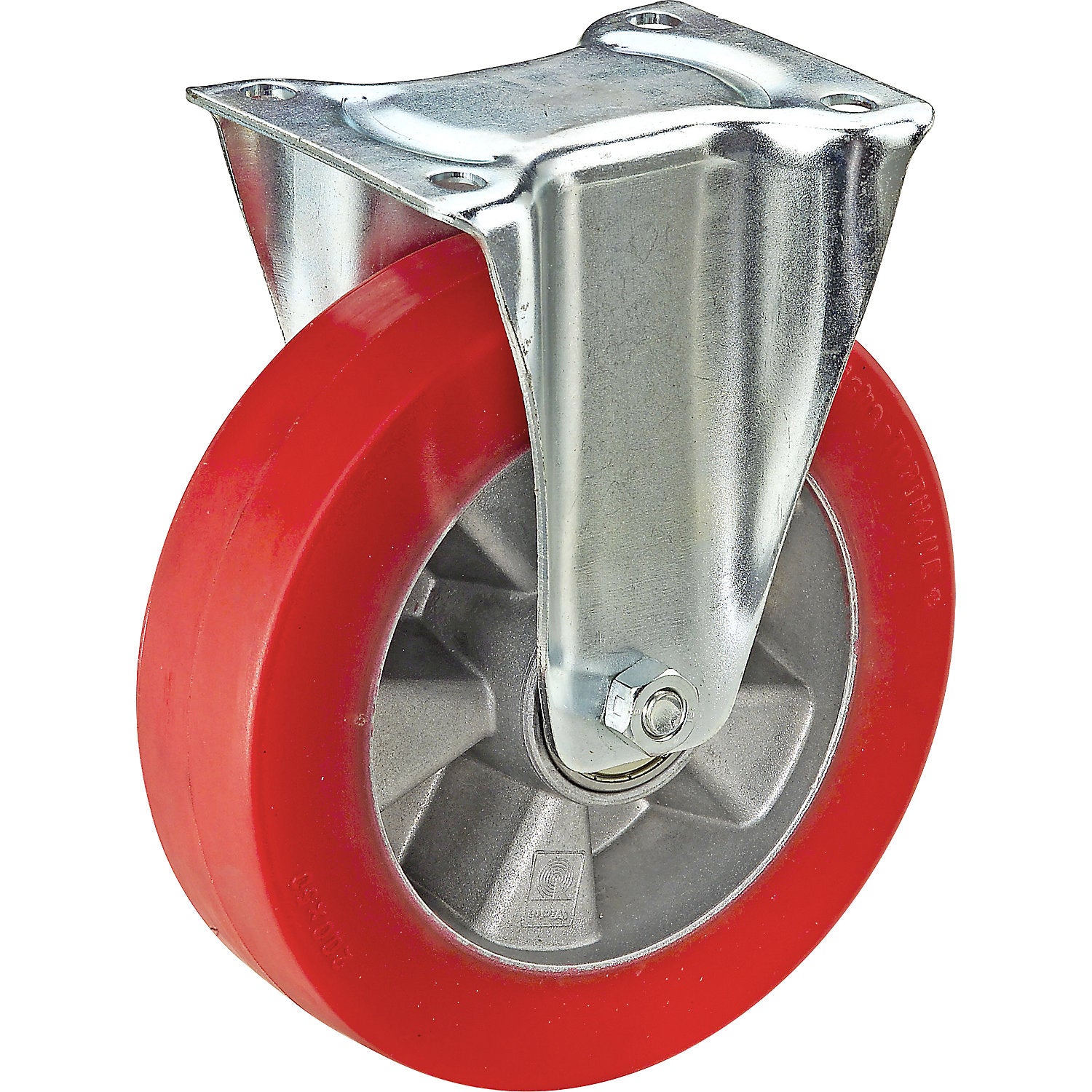

Polyurethane tyre on aluminium rim, wheel Ø x width 100 x 40 mm, fixed castor, max. load 200 kg.

Estimated delivery: 29 days

Polyurethane tyre on aluminium rim, wheel Ø x width 100 x 40 mm, fixed castor, max. load 200 kg

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = fixed castor
• Wheel material = polyurethane (PU) - elastic
• Material of rim = aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 200 kg
• Wheel width = 40 mm
• Overall height = 125 mm
• Wheel bearing = ball bearing
• Temperature resistance = -5 °C to +80 °C
• Screw hole diameter = 9 mm
• Hub length = 40 mm
• Hub bore = 12 mm
• Fixed castor plate dimensions = 102x87 mm
• Swivel castor plate dimensions = 105x80 mm
• Screw hole spacing = 80x60 - 76 mm
• Housing surface = zinc plated
• Shore hardness = 75 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 1.22 kg
• Weight = 1 kg
• Sustainability = CO 2 footprint calculated
• On aluminium rim
• Non-marking due to special composition
• Hardwearing and cut resistant
• Hardness 75 Shore A
• Temperature resistant from -5 °C to +80 °C

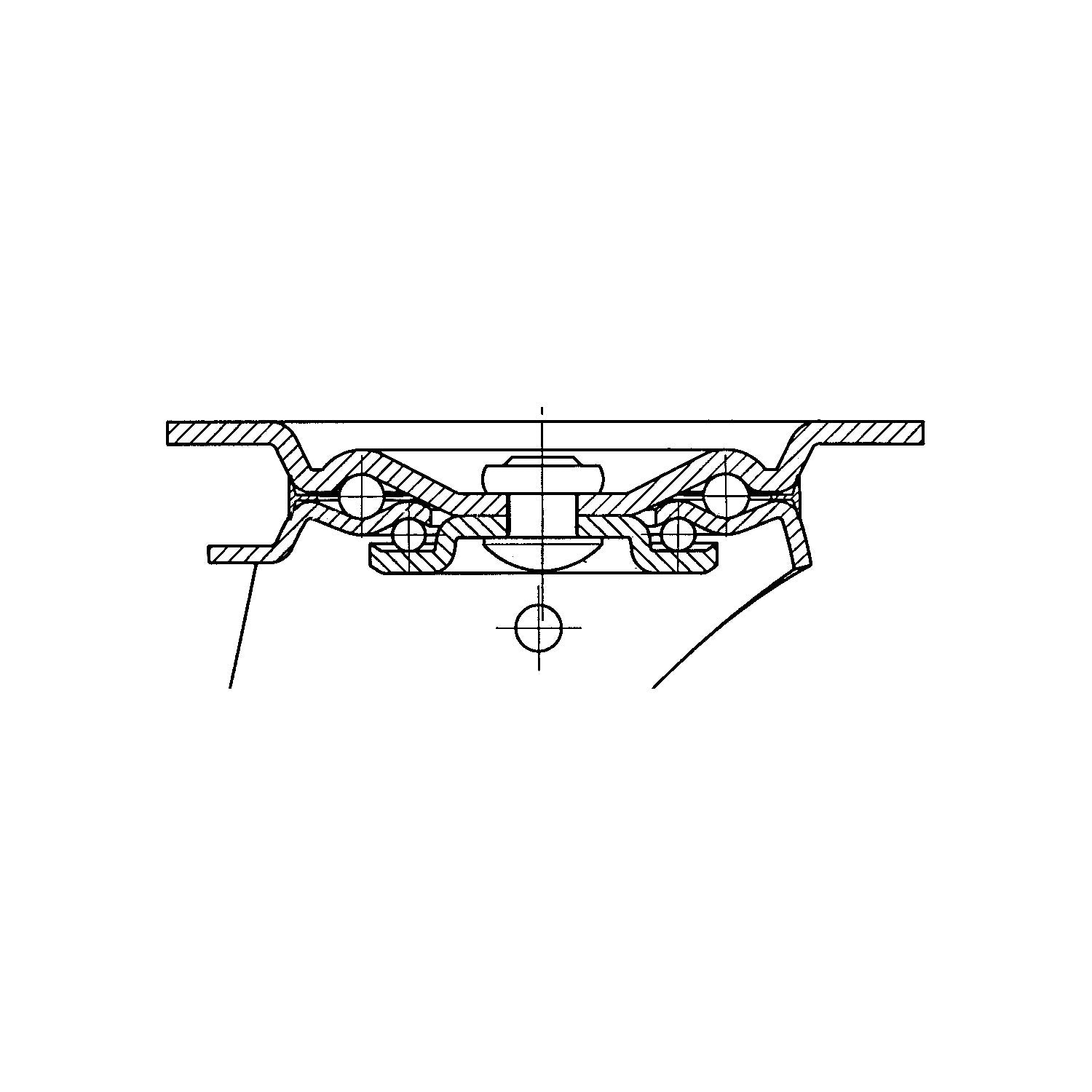

• Swivel bearing with double ball race, swivel bearing protection.
