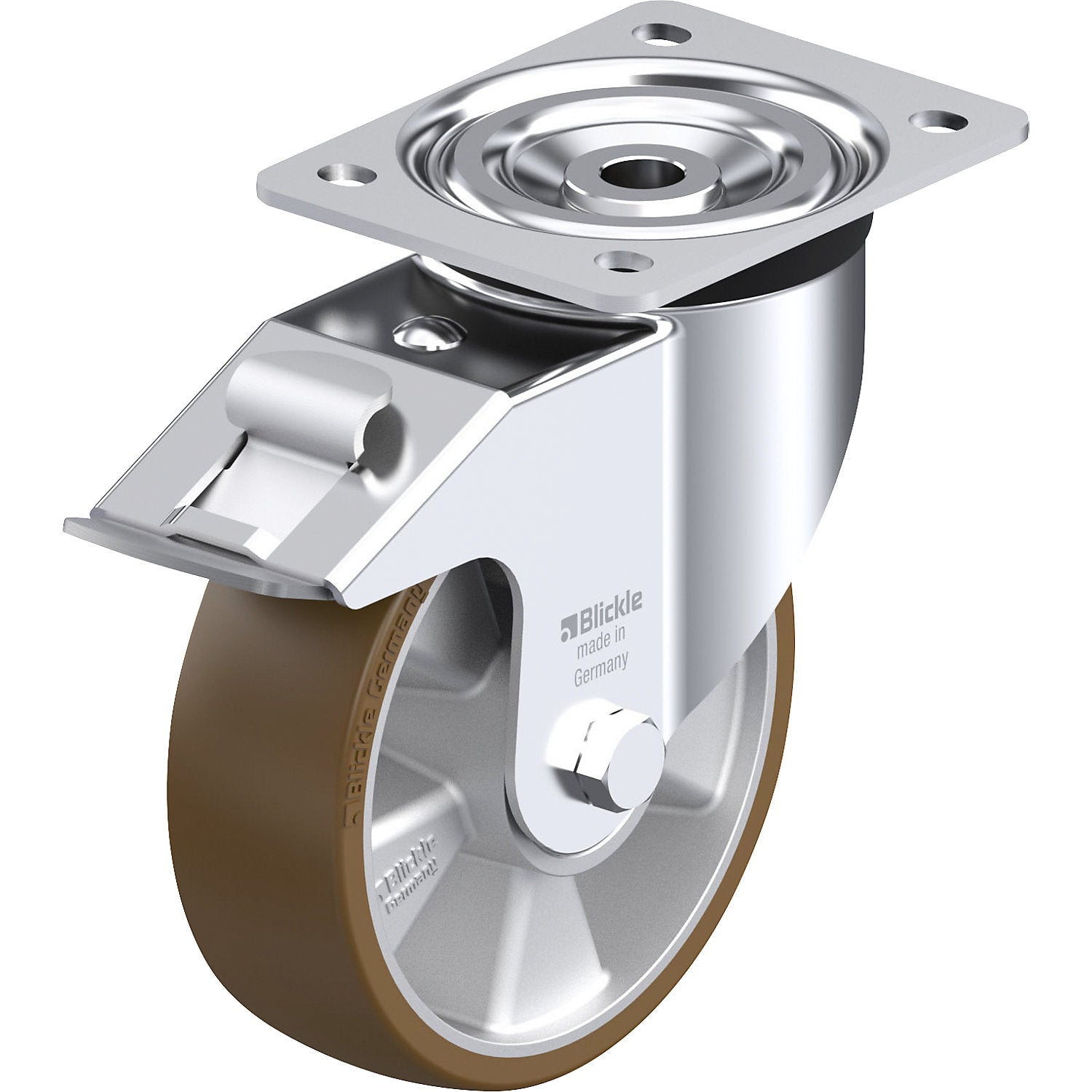

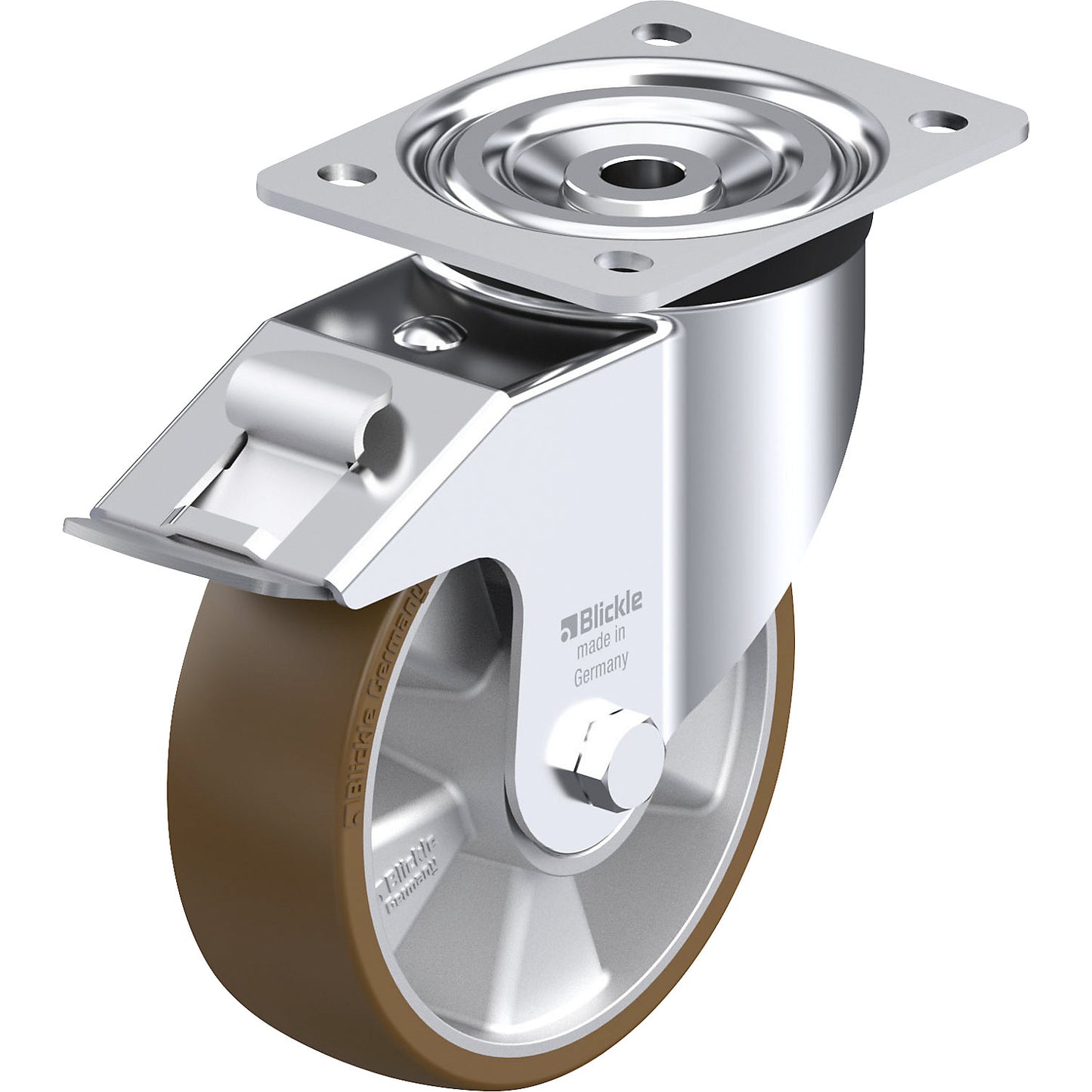

L-ALB-FI sheet steel swivel castor, wheel Ø x width 160 x 50 mm, max. load 400 kg.

Estimated delivery: 34 days

L-ALB-FI sheet steel swivel castor, wheel Ø x width 160 x 50 mm, max. load 400 kg

• Supplied = assembled
• Wheel diameter = 160 mm
• Structure = swivel castor with wheel stop
• Wheel material = polyurethane
• Material of rim = cast aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 400 kg
• Wheel width = 50 mm
• Overall height = 195 mm
• Wheel bearing = ball bearing
• Model = transport castors
• Swivel castor plate dimensions = 140x110 mm
• Shore hardness = 92 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 3.24 kg
• Weight = 2.94 kg
• Sustainability = CO 2 footprint calculated
• Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Double ball bearing in the ring bearing
• Stable centre bolt (from wheel Ø 150 mm)
• Ring bearing seal
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Tread: high quality Blickle Besthane® polyurethane elastomer, non-marking
• Wheel body: die cast aluminium, silver grey
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 °C, reduced max. load above +40 °C
• Sheet steel swivel castor, medium duty model, with mounting plate, with stop-fix stop, heavy duty wheel with Blickle Besthane® polyurethane tread, with aluminium wheel body.
