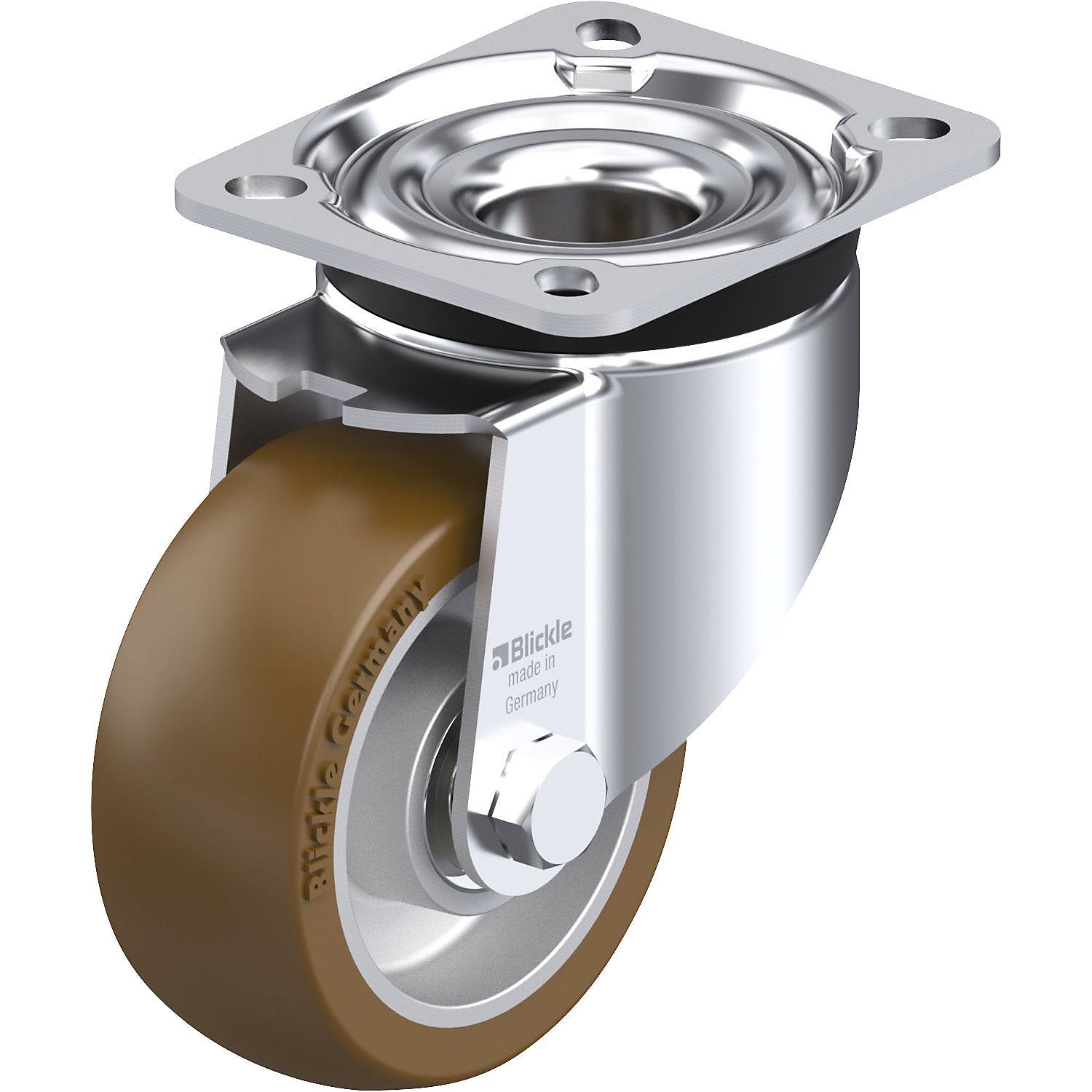

LK-ALB 101K-1 sheet steel swivel castor, wheel Ø 100 mm, max. load 350 kg, plate dimensions 100 x 85 mm.

Estimated delivery: 34 days

LK-ALB 101K-1 sheet steel swivel castor, wheel Ø 100 mm, max. load 350 kg, plate dimensions 100 x 85 mm

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = polyurethane
• Material of rim = cast aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 350 kg
• Wheel width = 40 mm
• Overall height = 130 mm
• Wheel bearing = ball bearing
• Model = transport castors
• Swivel castor plate dimensions = 100x85 mm
• Shore hardness = 92 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 1.48 kg
• Weight = 1.18 kg
• Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• With heavy wheel body, model with centre bar
• Double ball bearing in the ring bearing
• Stable centre bolt (from wheel Ø 125 x 50 mm)
• Ring bearing seal
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Tread: high quality Blickle Besthane® polyurethane elastomer, non-marking
• Wheel body: die cast aluminium, silver grey
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 °C, reduced max. load above +40 °C
• Sheet steel swivel castor, heavy model, with mounting plate, heavy duty wheel with Blickle Besthane® polyurethane tread, with aluminium wheel body.
