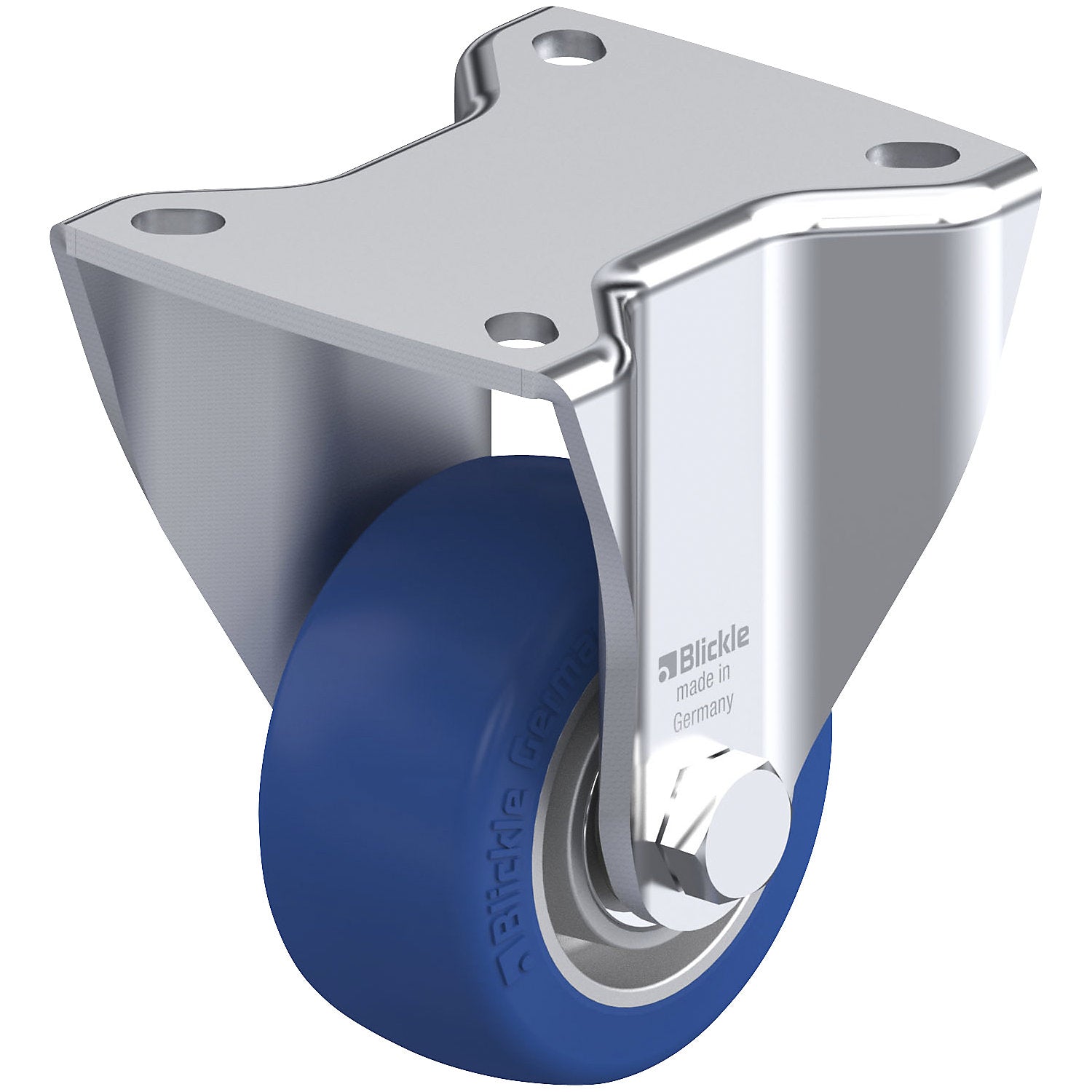

BH-ALBS fixed sheet steel castor, wheel Ø 80 mm, max. load 230 kg, plate dimensions 100 x 85 mm.

Estimated delivery: 34 days

BH-ALBS fixed sheet steel castor, wheel Ø 80 mm, max. load 230 kg, plate dimensions 100 x 85 mm

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = fixed castor
• Wheel material = polyurethane
• Material of rim = cast aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 230 kg
• Wheel width = 40 mm
• Overall height = 120 mm
• Wheel bearing = ball bearing
• Model = transport castors
• Fixed castor plate dimensions = 100x85 mm
• Shore hardness = 75 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 1.22 kg
• Weight = 0.92 kg
• Sustainability = CO 2 footprint calculated
• Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Heavy fork and base plate
• Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
• Wheel body: die cast aluminium, silver grey
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 °C, reduced max. load above +40 °C
• Fixed sheet steel castor, heavy duty model, with mounting plate.
