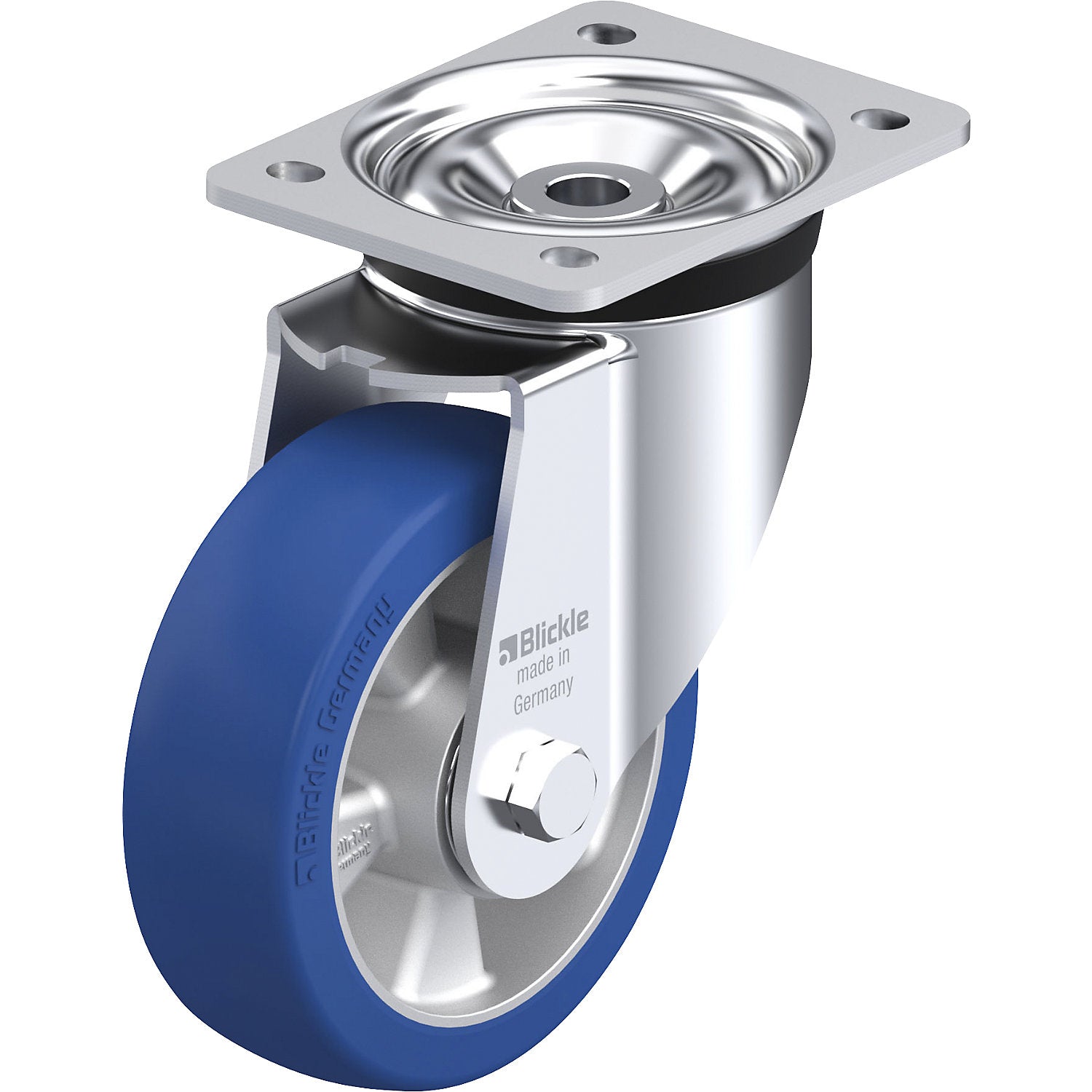

LK-ALBS sheet steel swivel castor, wheel Ø 150 mm, max. load 500 kg, plate dimensions 140 x 110 mm.

Estimated delivery: 34 days

LK-ALBS sheet steel swivel castor, wheel Ø 150 mm, max. load 500 kg, plate dimensions 140 x 110 mm

• Supplied = assembled
• Wheel diameter = 150 mm
• Structure = swivel castor
• Wheel material = polyurethane
• Material of rim = cast aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 500 kg
• Wheel width = 50 mm
• Overall height = 197 mm
• Wheel bearing = ball bearing
• Model = heavy duty castors
• Swivel castor plate dimensions = 140x110 mm
• Shore hardness = 75 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 3.13 kg
• Weight = 2.83 kg
• Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Double ball bearing in the ring bearing
• Stable centre bolt (from wheel Ø 125 x 50 mm)
• Ring bearing seal
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
• Wheel body: die cast aluminium, silver grey
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 °C, reduced max. load above +40 °C
• Sheet steel swivel castor, heavy model, with mounting plate.
