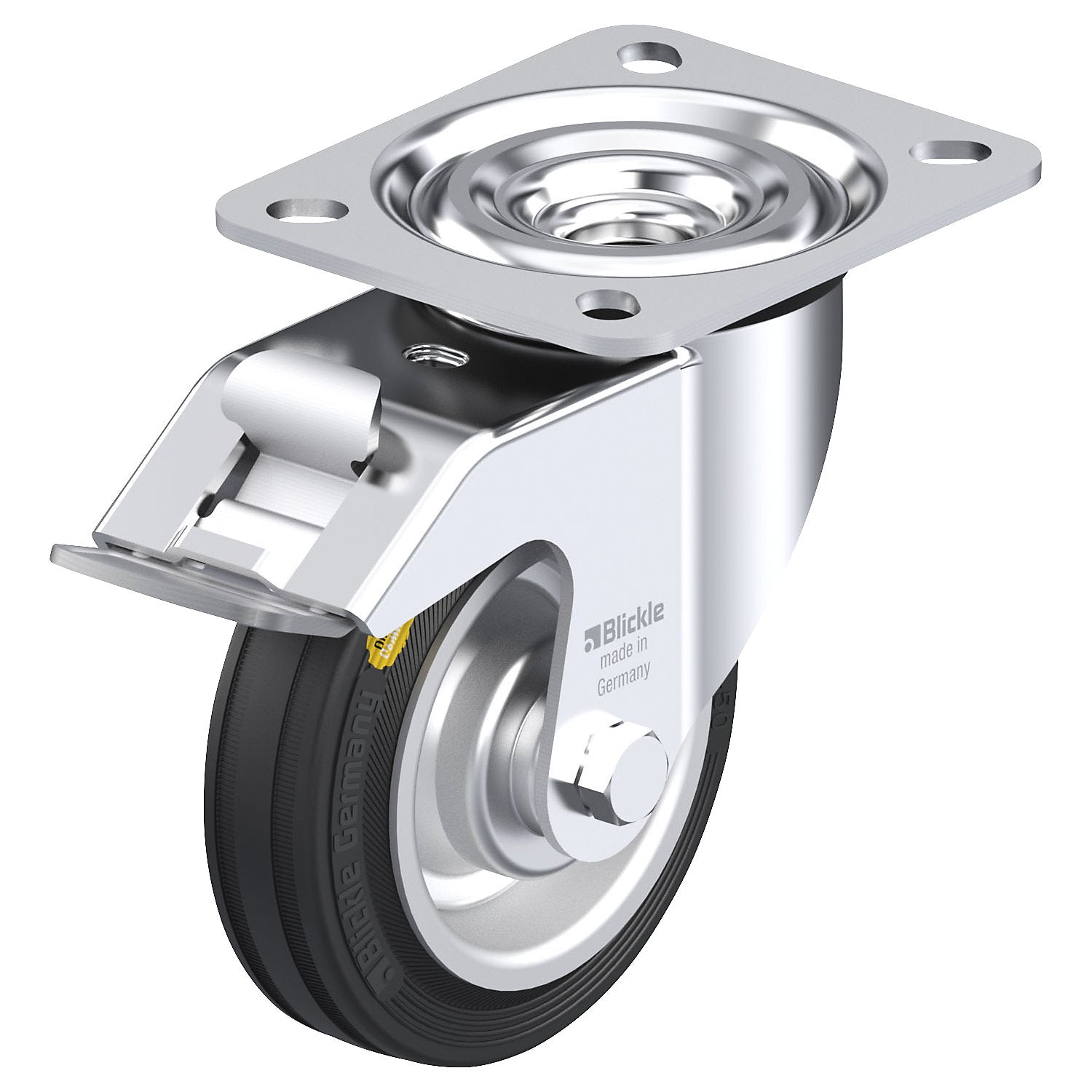

L-RD 100R-FI sheet steel swivel castor, wheel Ø x width 100 x 30 mm, max. load 100 kg.

Estimated delivery: 34 days

L-RD 100R-FI sheet steel swivel castor, wheel Ø x width 100 x 30 mm, max. load 100 kg

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor with wheel stop
• Wheel material = rubber
• Material of rim = sheet steel
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 100 kg
• Wheel width = 30 mm
• Overall height = 125 mm
• Wheel bearing = roller bearing
• Model = transport castors
• Swivel castor plate dimensions = 100x85 mm
• Shore hardness = 65 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 1.34 kg
• Weight = 1.04 kg
• Sustainability = CO 2 footprint calculated
• Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Double ball bearing in the ring bearing
• Stable centre bolt (from wheel Ø 150 mm)
• Ring bearing seal
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Tyres: two component ''Blickle Comfort'' solid rubber, hardness 65 Shore A, black
• Sturdy rim construction with steel pipe hub, centrally pressed, electrolytically zinc plated
• Chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -25 °C to +80 °C, reduced max. load above +60 °C
• Sheet steel swivel castor, medium duty model, with mounting plate, with stop-fix stop, wheel with two component solid rubber tyres, Blickle Comfort, with sheet steel rim.
