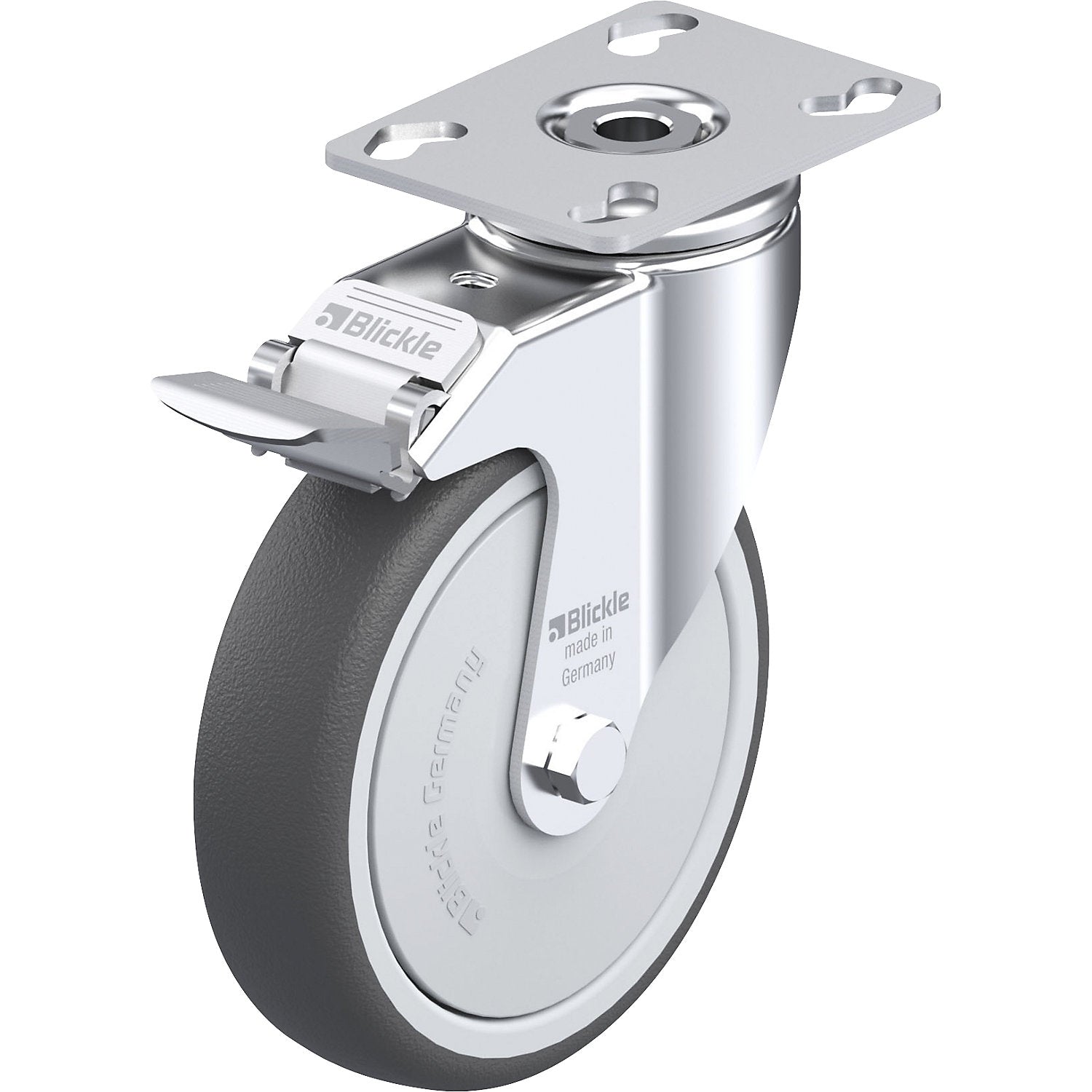

LKPA-PATH-FI light duty swivel castor, max. load 120 kg, wheel Ø 125 mm, overall height 161 mm.

Estimated delivery: 34 days

LKPA-PATH-FI light duty swivel castor, max. load 120 kg, wheel Ø 125 mm, overall height 161 mm

• Supplied = assembled
• Wheel diameter = 125 mm
• Structure = swivel castor with wheel stop
• Wheel material = polyurethane
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 120 kg
• Wheel width = 32 mm
• Overall height = 161 mm
• Wheel bearing = ball bearing
• Model = light duty castors
• Swivel castor plate dimensions = 90x66 mm
• Shore hardness = 94 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 1.21 kg
• Weight = 0.91 kg
• Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Temperature resistance: -20 °C to +70 °C, reduced max. load above +35 °C
• Double ball bearing in the ring bearing
• Stable centre bolt
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Steel locking lever
• Tread: high quality thermoplastic polyurethane (TPU), non-staining
• Wheel body: high quality nylon 6, does not break, silver grey
• With plastic thread guard, large
• Very high chemical resistance to many aggressive media
• Light duty swivel castor with mounting plate, with stop-fix stop
• Wheel with thermoplastic polyurethane tread, with nylon wheel body, with plastic thread guard, large.
