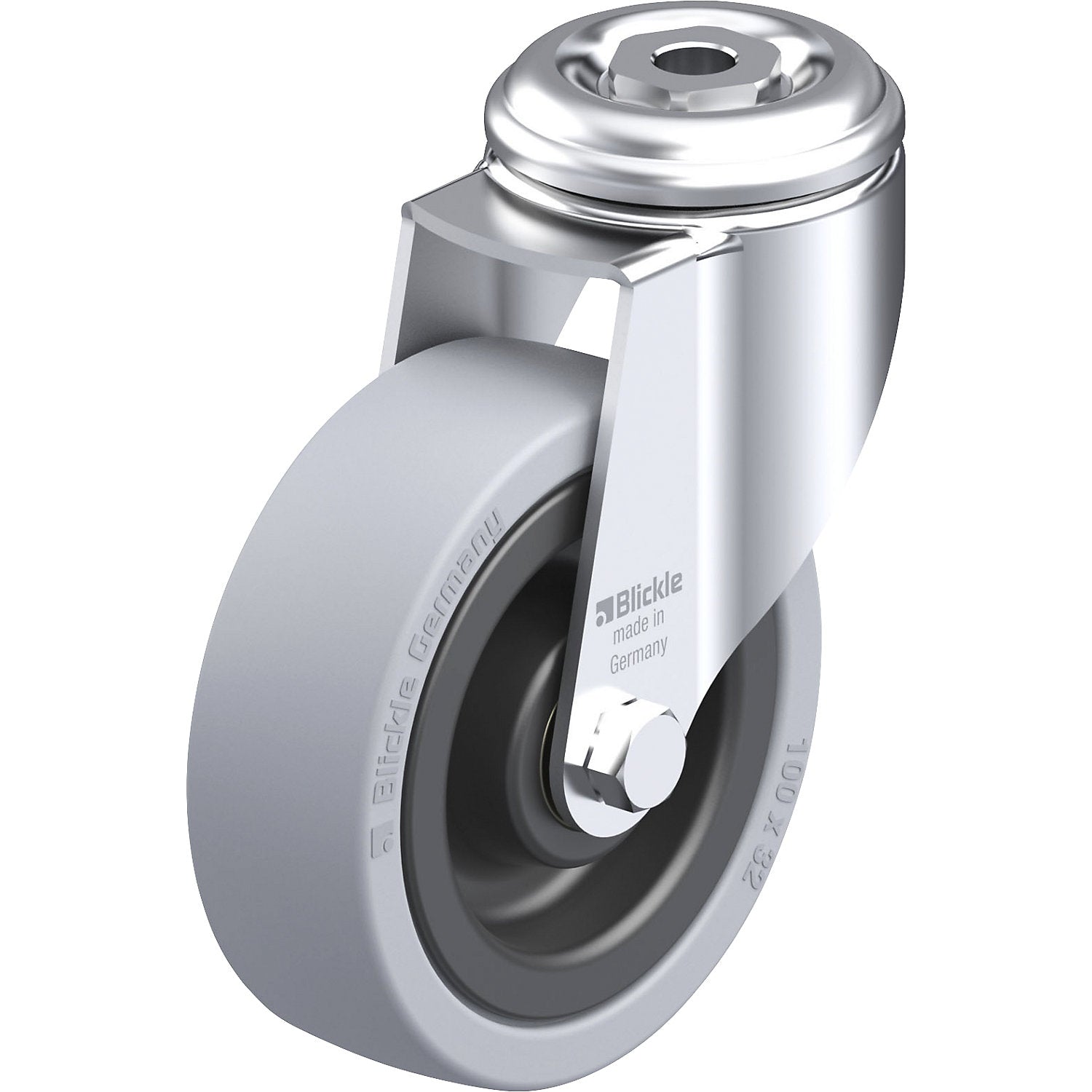

LKRA-VPA light duty swivel castor, plate dimensions 57 mm, wheel Ø 100 mm, max. load 110 kg.

Estimated delivery: 34 days

LKRA-VPA light duty swivel castor, plate dimensions 57 mm, wheel Ø 100 mm, max. load 110 kg

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = rubber
• Material of rim = nylon
• Type of mounting = with bolt hole
• Housing material = steel
• Max. load at 4 km/h = 110 kg
• Wheel width = 32 mm
• Overall height = 133 mm
• Wheel bearing = ball bearing
• Model = light duty castors
• Swivel castor plate dimensions = 57 mm
• Shore hardness = 80 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 0.96 kg
• Weight = 0.66 kg
• Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Double ball bearing in the ring bearing
• Stable centre bolt
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Steel locking lever
• Tyres: high quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
• Rim: high quality nylon 6 or polypropylene for the related electrically conductive product
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +60 °C, reduced max. load above +30 °C
• Light duty swivel castor with bolt hole.
