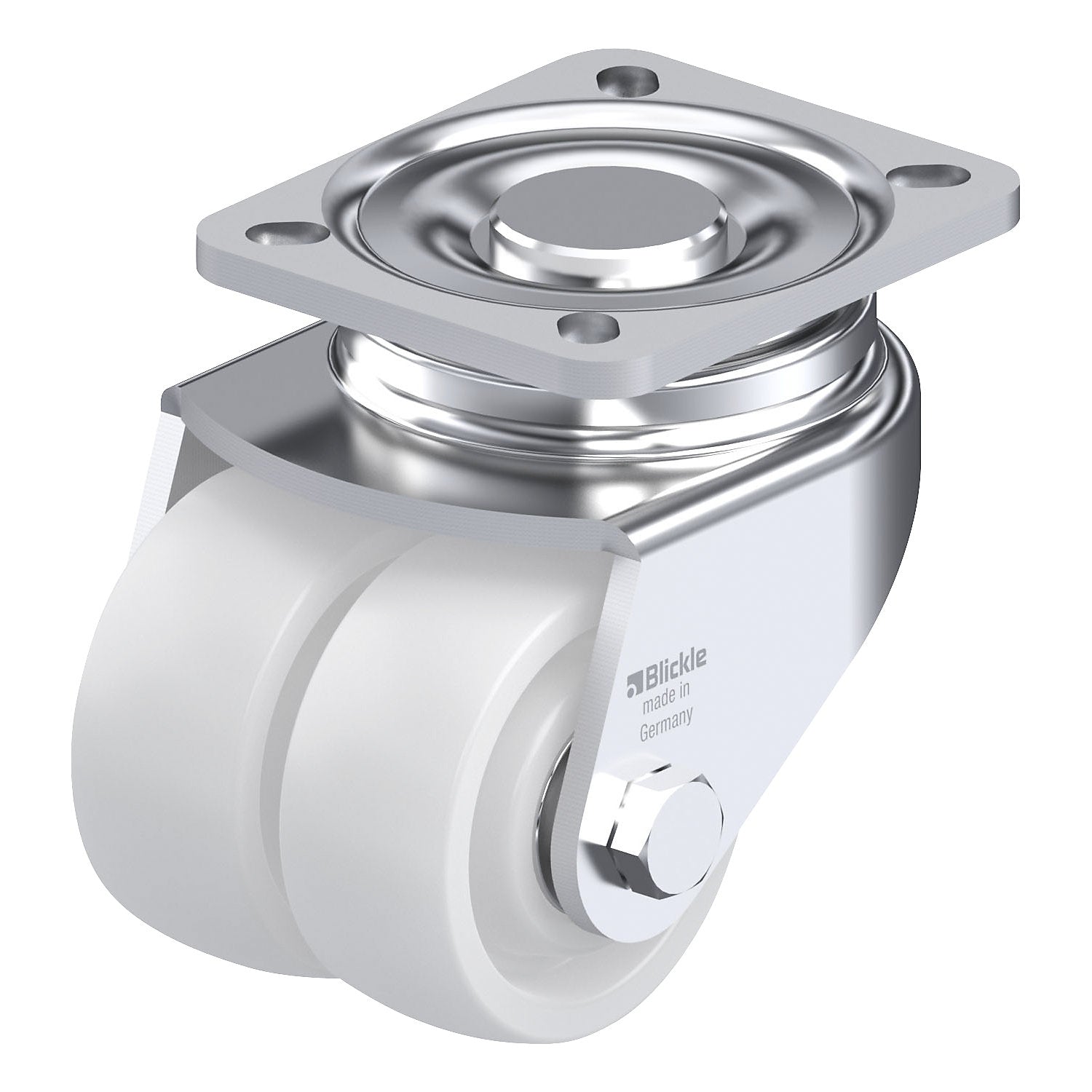

LHD-SPO 75K sheet steel double swivel castor, wheel Ø x width 75 x 32 mm, max. load 540 kg.

Estimated delivery: 34 days

LHD-SPO 75K sheet steel double swivel castor, wheel Ø x width 75 x 32 mm, max. load 540 kg

• Supplied = assembled
• Wheel diameter = 75 mm
• Structure = swivel castor
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 540 kg
• Wheel width = 32 mm
• Overall height = 110 mm
• Wheel bearing = ball bearing
• Model = heavy duty castors
• Swivel castor plate dimensions = 100x85 mm
• Shore hardness = 70 Shore D
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 2.11 kg
• Weight = 1.81 kg
• Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Heavy fork and base plate
• Double ball bearing in the ring bearing
• Very stable centre bolt, screwed and secured
• Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
• High quality nylon, does not break, very robust, heavy model
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +80 °C, reduced max. load above +35 °C
• Sheet steel double swivel castor, heavy duty model, with mounting plate.
