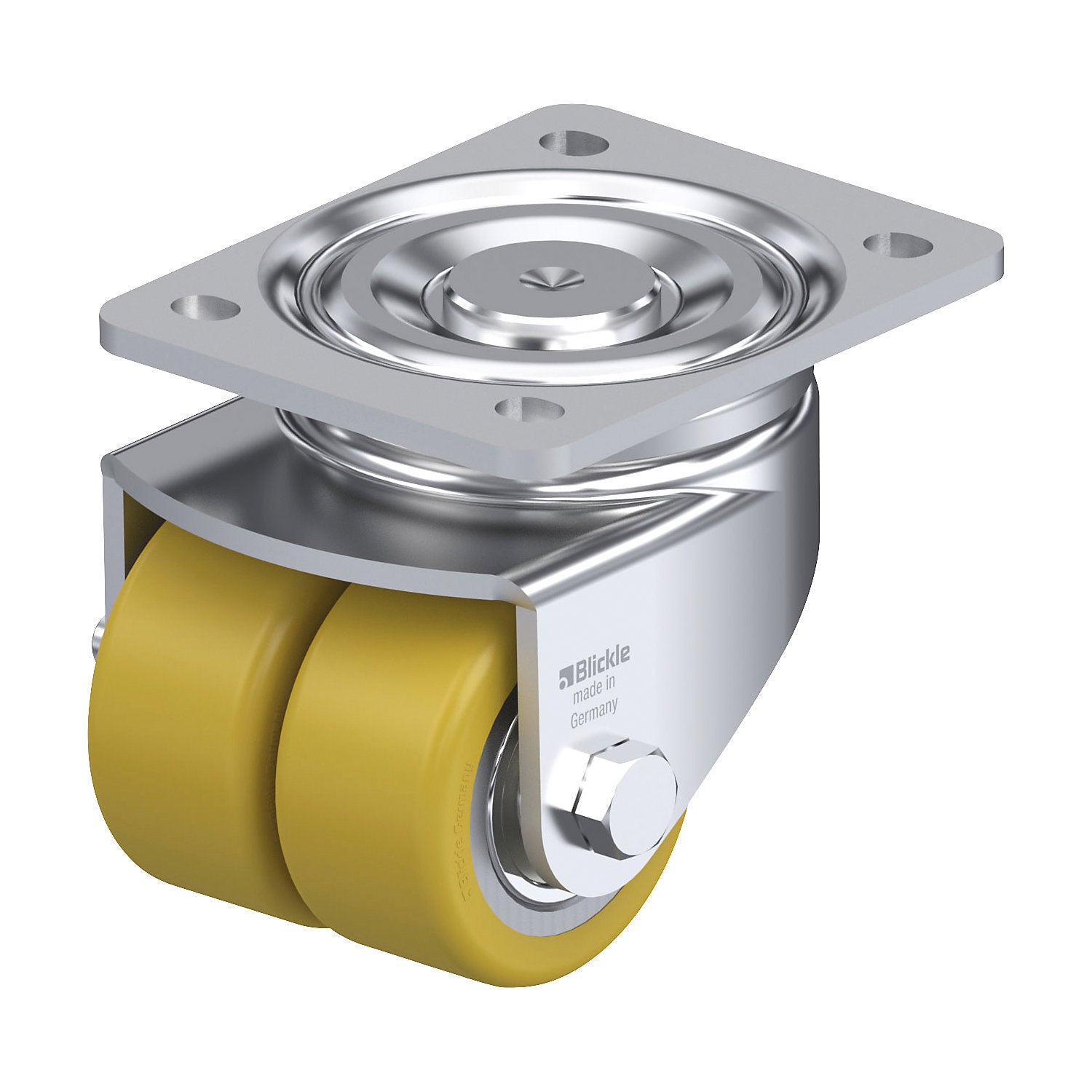

LHD-VSTH sheet steel double swivel castor, wheel Ø x width 80 x 40 mm, max. load 500 kg.

Estimated delivery: 34 days

LHD-VSTH sheet steel double swivel castor, wheel Ø x width 80 x 40 mm, max. load 500 kg

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = swivel castor
• Wheel material = polyurethane
• Material of rim = steel
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 500 kg
• Wheel width = 40 mm
• Overall height = 115 mm
• Wheel bearing = ball bearing
• Model = heavy duty castors
• Swivel castor plate dimensions = 140x110 mm
• Shore hardness = 92 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 3.99 kg
• Weight = 3.69 kg
• Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Heavy fork and base plate
• Double ball bearing in the ring bearing
• Very stable centre bolt, screwed and secured
• Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
• Tread: high quality Blickle Extrathane® polyurethane elastomer, non-marking
• Wheel body: steel
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 °C, reduced max. load above +40 °C
• Sheet steel double swivel castor, heavy duty model, with mounting plate, heavy duty wheel with Blickle Extrathane® polyurethane tread, with steel wheel body.
