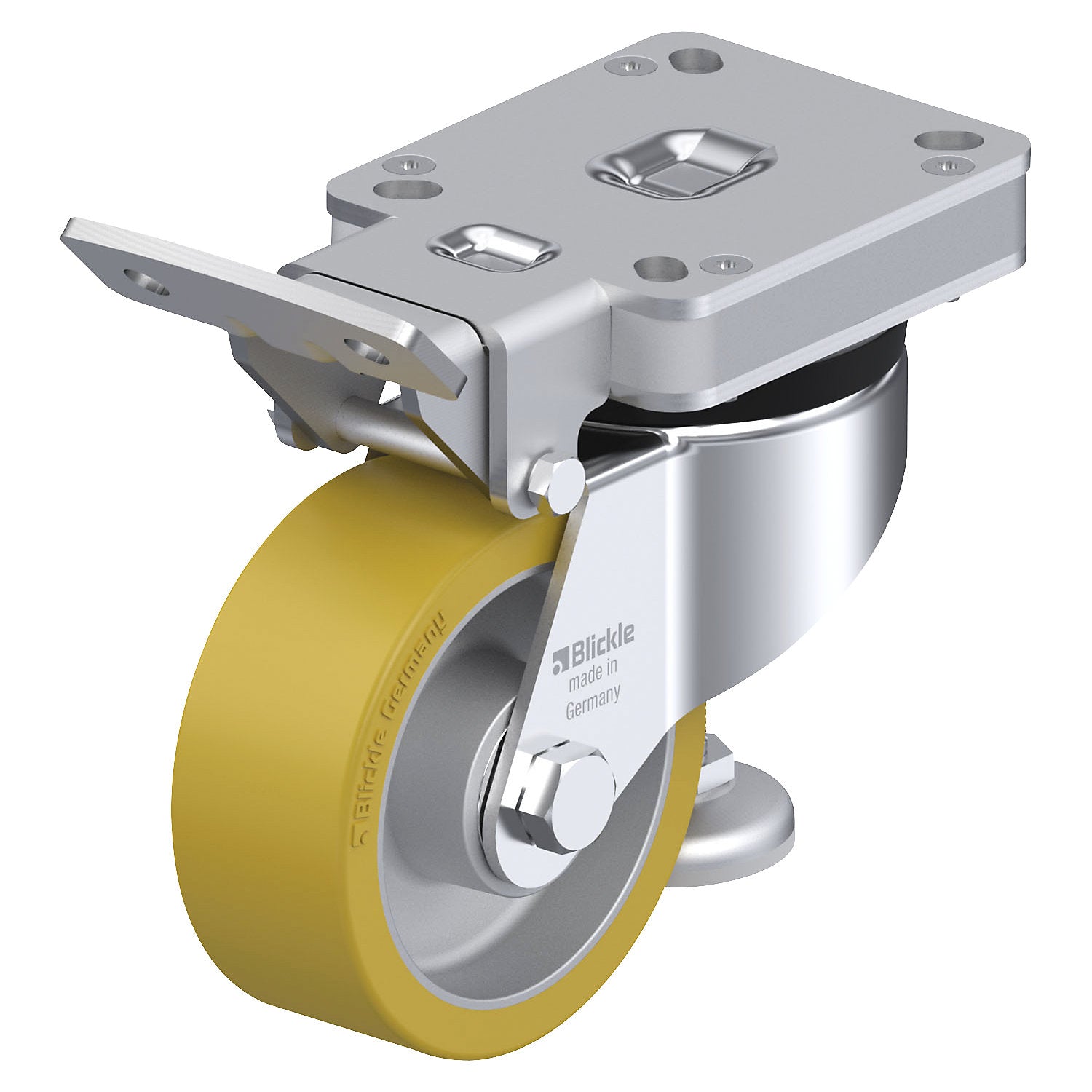

HRLK-ALTH levelling castor, plate dimensions 100 x 85 mm, wheel Ø 100 mm, max. load 230 kg.

Estimated delivery: 34 days

HRLK-ALTH levelling castor, plate dimensions 100 x 85 mm, wheel Ø 100 mm, max. load 230 kg

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = polyurethane
• Material of rim = cast aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 230 kg
• Wheel width = 40 mm
• Overall height = 140 mm
• Wheel bearing = ball bearing
• Model = levelling castors
• Shore hardness = 92 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 2.77 kg
• Weight = 2.47 kg
• Sustainability = CO 2 footprint calculated
• Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Temperature resistance: -20 °C to +70 °C, reduced max. load above +35 °C
• Double ball bearing in the ring bearing
• Ring bearing seal
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Steel stop foot with rubber lining
• Height adjustment by means of operating lever
• Tread: high quality Blickle Extrathane® polyurethane elastomer, non-marking
• Wheel body: die cast aluminium, silver grey
• High chemical resistance to many aggressive media
• Levelling castors with fixed operating lever and integrated stop foot, with mounting plate, heavy duty wheel with Blickle Extrathane® polyurethane tread, with aluminium wheel body.
