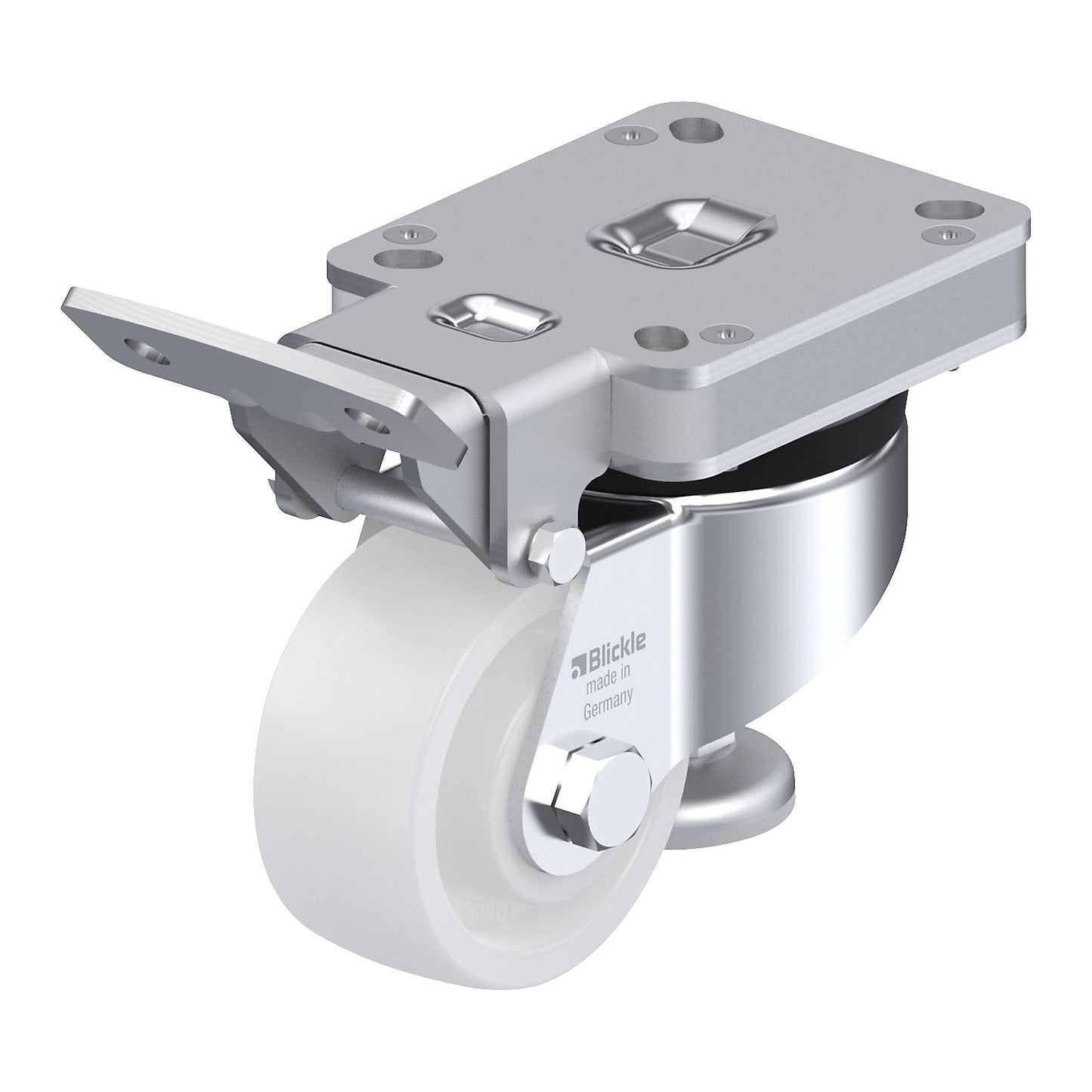

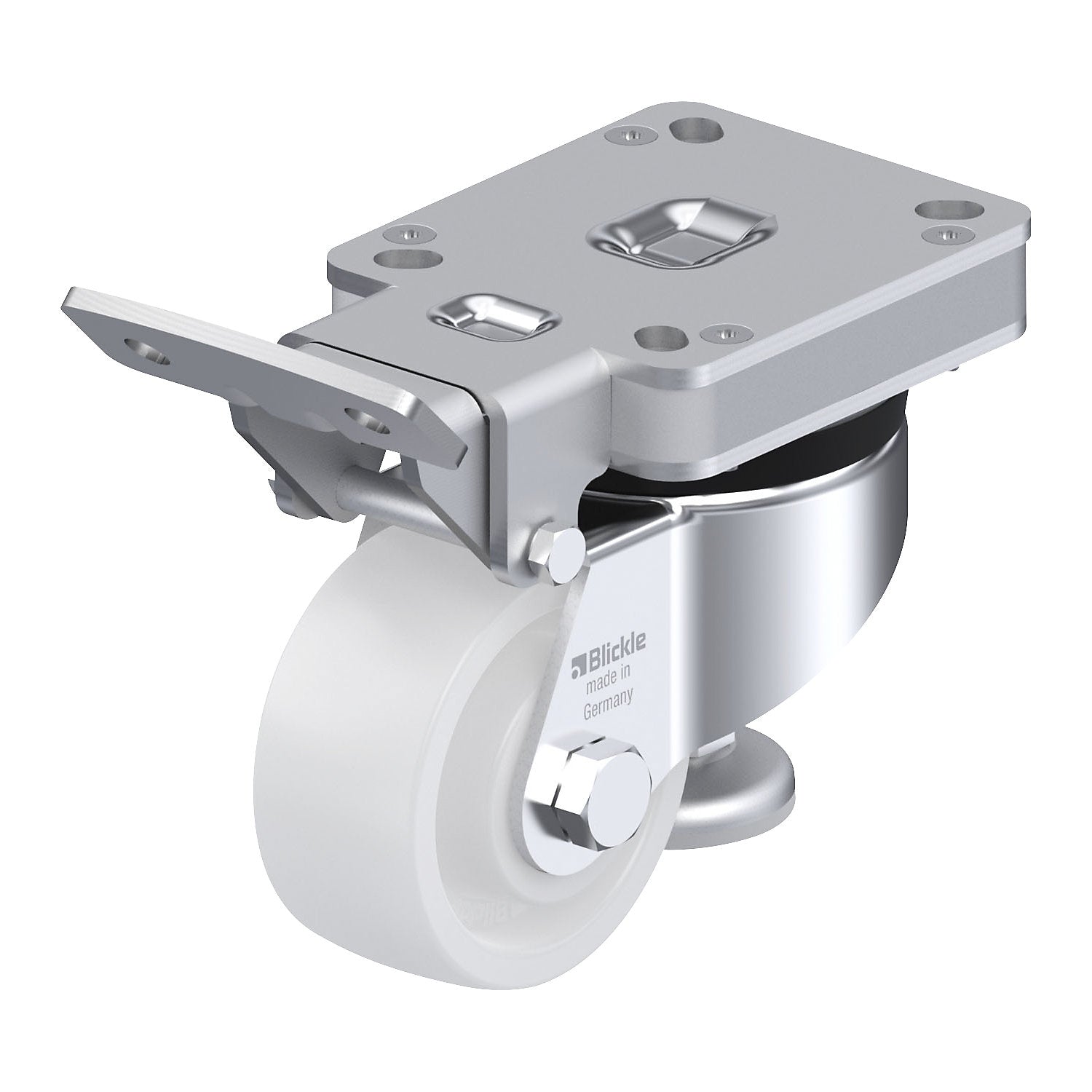

HRLK-SPO levelling castor, plate dimensions 100 x 85 mm, ball bearing, wheel Ø 80 mm.

Estimated delivery: 34 days

HRLK-SPO levelling castor, plate dimensions 100 x 85 mm, ball bearing, wheel Ø 80 mm

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = swivel castor
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 300 kg
• Wheel width = 37 mm
• Overall height = 120 mm
• Wheel bearing = ball bearing
• Model = levelling castors
• Shore hardness = 70 Shore D
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 2.52 kg
• Weight = 2.22 kg
• Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Double ball bearing in the ring bearing
• Ring bearing seal
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Steel stop foot with rubber lining
• Height adjustment by means of operating lever
• High quality nylon, does not break, very robust, heavy model
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +80 °C, reduced max. load above +35 °C
• Levelling rollers with fixed operating lever and integrated stop foot, with mounting plate.
