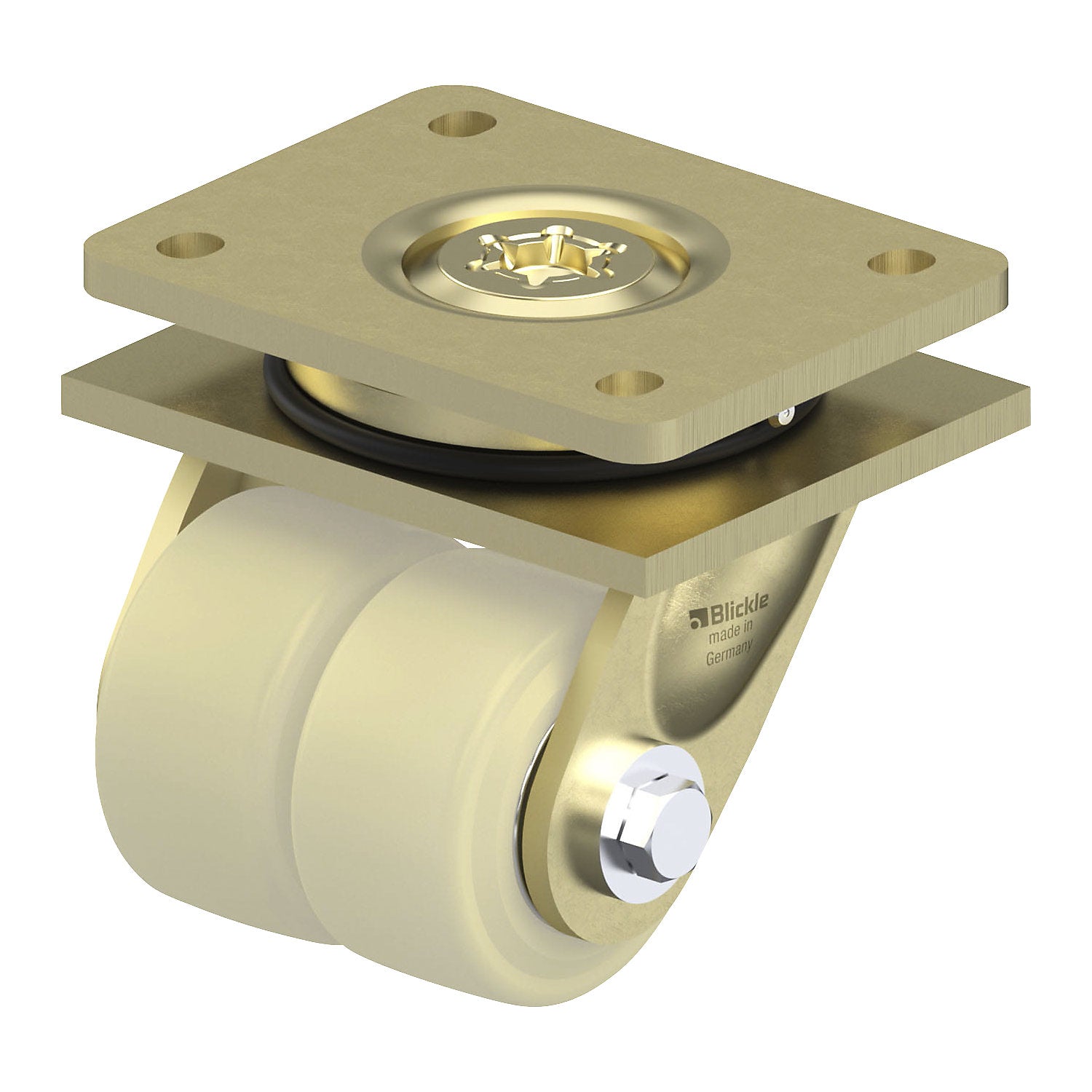

Steel welded heavy duty double swivel castor, wheel Ø x width 80 x 40 mm, max. load 1750 kg.

Estimated delivery: 34 days

Steel welded heavy duty double swivel castor, wheel Ø x width 80 x 40 mm, max. load 1750 kg

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = swivel castor
• Wheel material = plastic
• Material of rim = cast nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 1750 kg
• Wheel width = 40 mm
• Overall height = 125 mm
• Wheel bearing = ball bearing
• Model = heavy duty castors
• Swivel castor plate dimensions = 140x110 mm
• Shore hardness = 80 Shore D
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 4.39 kg
• Weight = 4.09 kg
• Particularly robust welded steel construction, electrolytically zinc plated, yellow passivated, Cr6 free
• For floors that are sensitive to pressure, observe surface pressure
• Tested in accordance with EN 12530
• Axial deep groove ball bearings ISO 104 and tapered roller bearings ISO 355 in the ring bearing
• Welded, very stable centre bolt, screwed and secured
• Dust and splash water protected
• Lubrication nipple
• High quality cast nylon, reaction cast, does not break, hardness 80 Shore D, natural beige
• High chemical resistance to many aggressive media
• Reduced moisture absorption
• Temperature resistance: -20 °C to +80 °C, reduced max. load above +35 °C
• Steel welded heavy duty double swivel castor, heavy duty ring bearing model, heavy duty wheel made of cast nylon.
