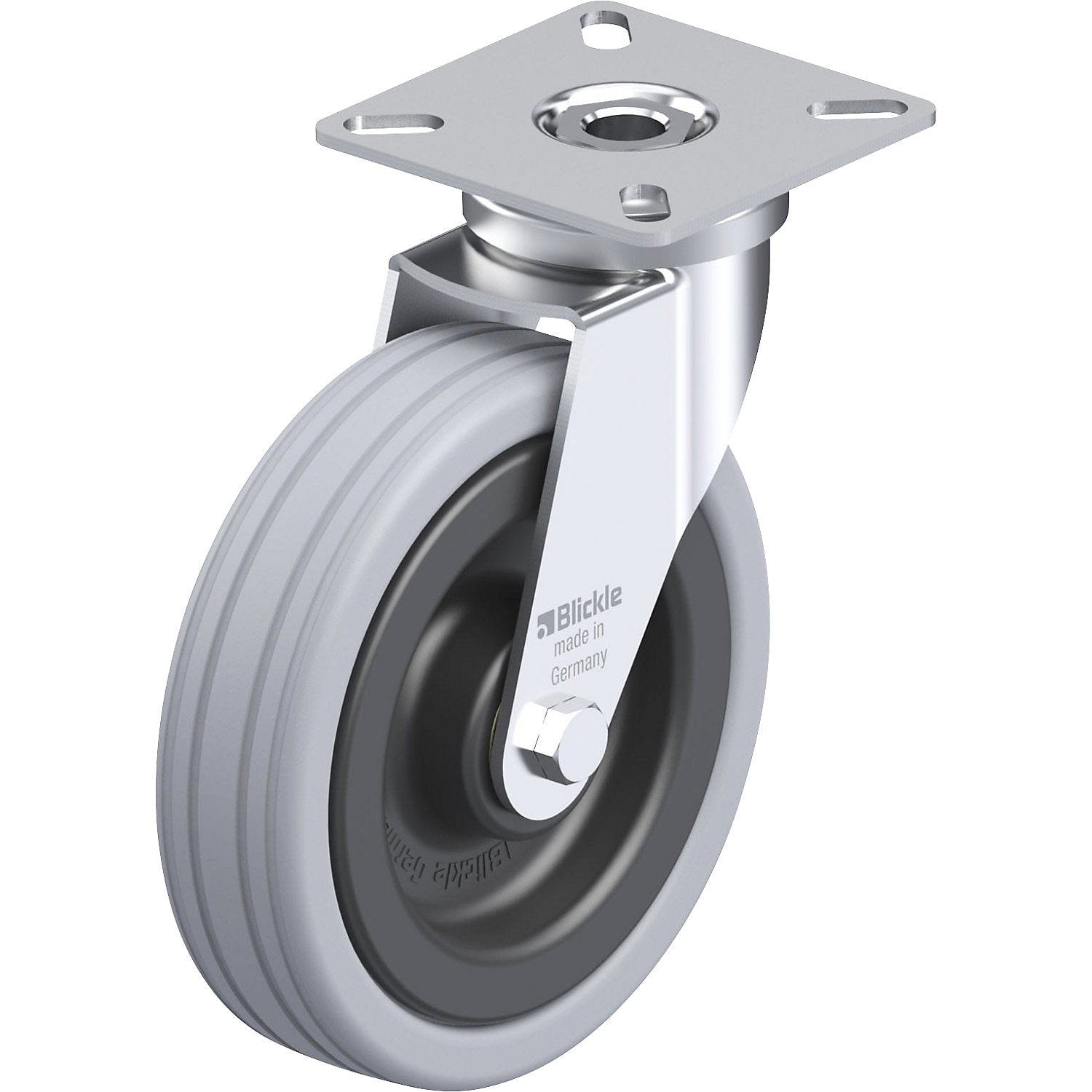

LPA-VPA light duty swivel castor, plate dimensions 60 x 60 mm, wheel Ø 100 mm, max. load 70 kg.

Estimated delivery: 34 days

LPA-VPA light duty swivel castor, plate dimensions 60 x 60 mm, wheel Ø 100 mm, max. load 70 kg

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = rubber
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 70 kg
• Wheel width = 25 mm
• Overall height = 123 mm
• Wheel bearing = ball bearing
• Model = light duty castors
• Swivel castor plate dimensions = 60x60 mm
• Shore hardness = 80 Shore A
• Customs tariff number = 83022000
• Country of origin = DEU
• Gross weight = 0.72 kg
• Weight = 0.42 kg
• Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
• Double ball bearing in the ring bearing
• Stable centre bolt
• Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
• Plastic locking lever
• Tyres: high quality solid rubber, hardness 80 Shore A, grey, non-marking, non-staining
• Rim: high quality nylon 6 or polypropylene for the related electrically conductive product
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +60 °C, reduced max. load above +30 °C
• Light duty swivel castor with mounting plate.
