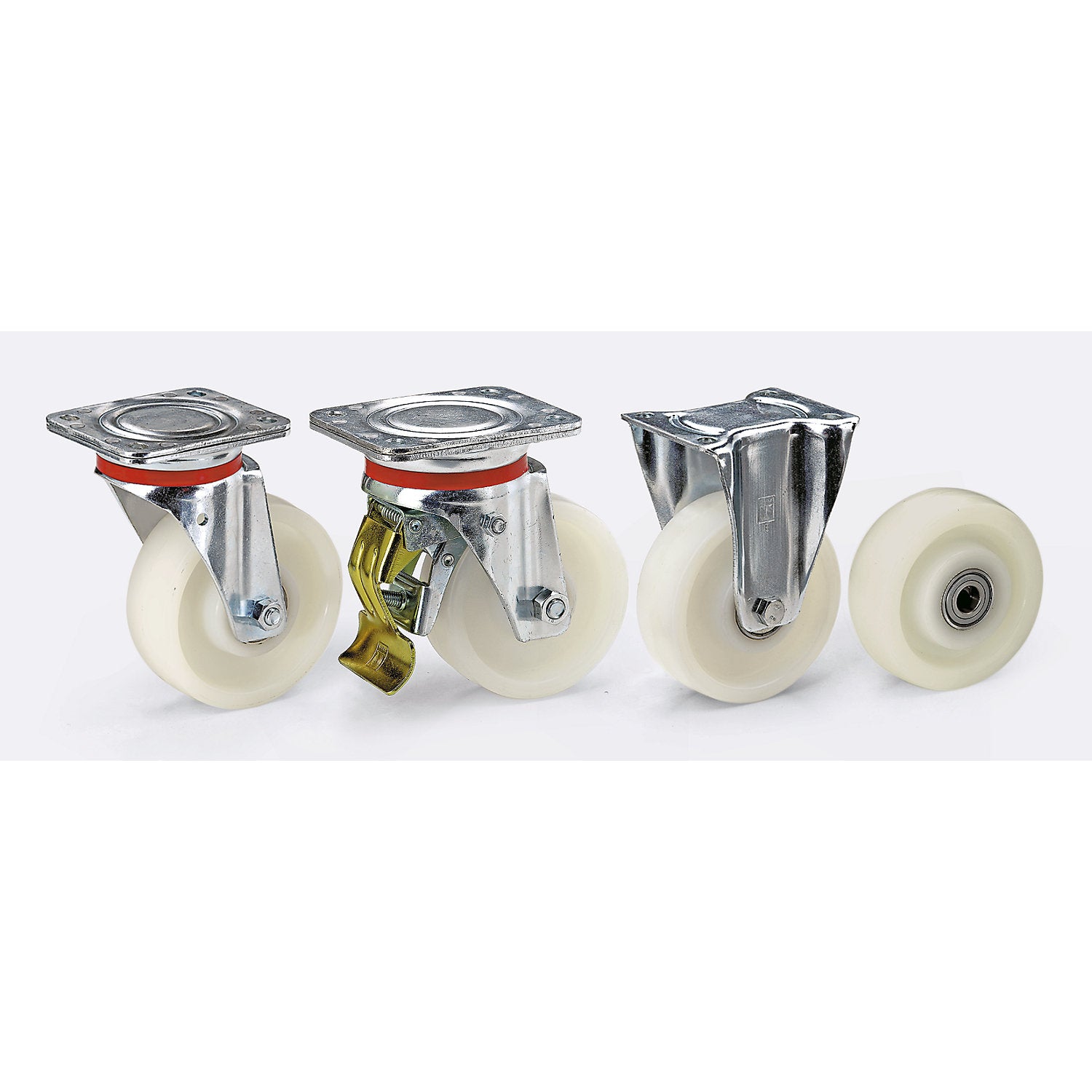

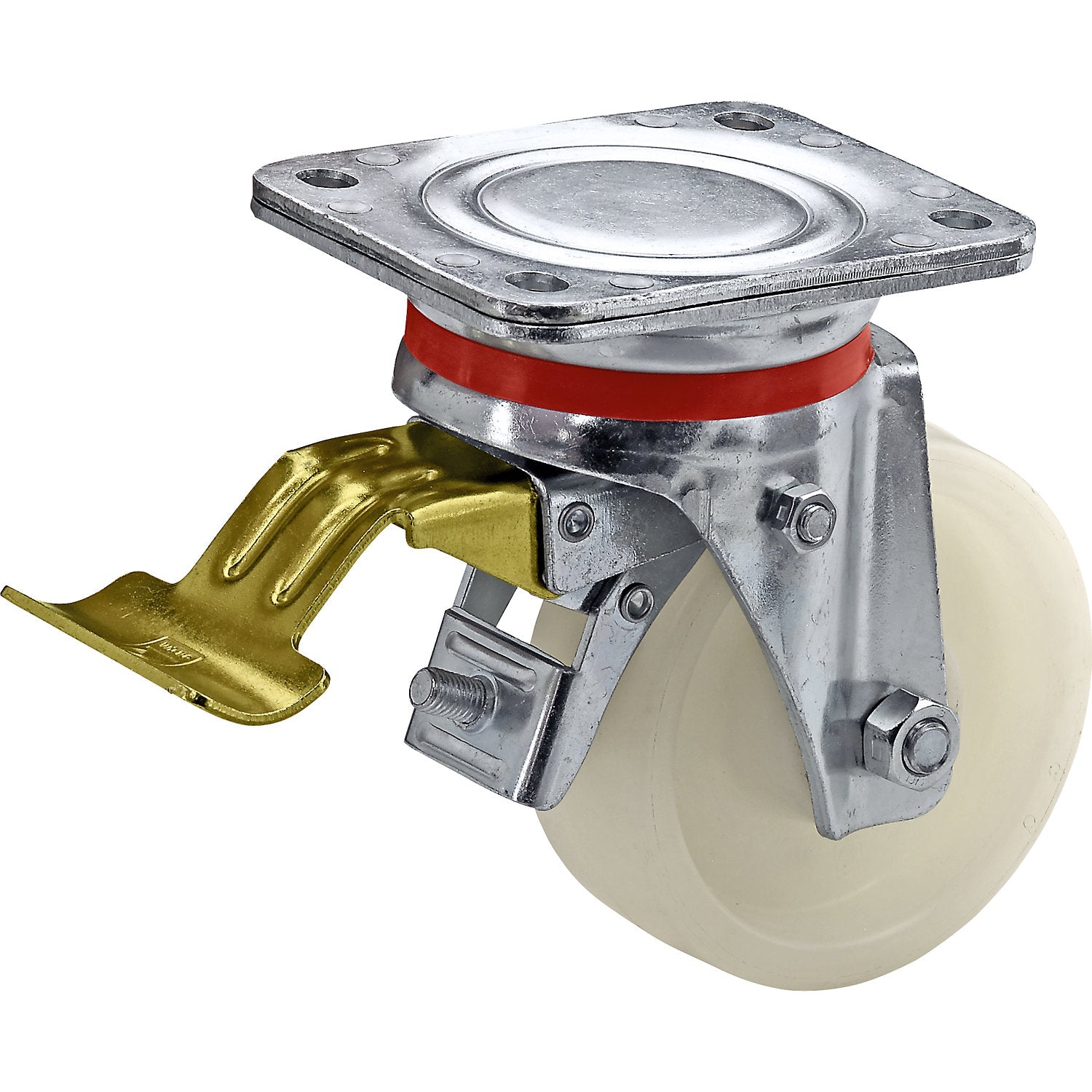

Nylon wheel, sheet steel housing, wheel Ø x width 100 x 35 mm, swivel castor with double stop, plain bearings.

Estimated delivery: 29 days

Nylon wheel, sheet steel housing, wheel Ø x width 100 x 35 mm, swivel castor with double stop, plain bearings

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor with double stop
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 350 kg
• Wheel width = 35 mm
• Overall height = 128 mm
• Wheel bearing = plain bearing
• Temperature resistance = -20 °C to +80 °C
• Swivel castor offset = 40 mm
• Screw hole diameter = 9 mm
• Hub length = 40 mm
• Hub bore = 12 mm
• Fixed castor plate dimensions = 100x87 mm
• Swivel castor plate dimensions = 105x85 mm
• Screw hole spacing = 80x60 mm
• Housing surface = galvanised and chrome-plated
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 1.74 kg
• Weight = 1.34 kg
• Sustainability = CO 2 footprint calculated
• Extremely durable
• Reinforced housing
• High maximum load
• Temperature resistant from -20 °C to +80 °C
• Swivel bearing with hardened double ball race, swivel bearing protection
• Lubrication nipple, fork head without central bolt.
