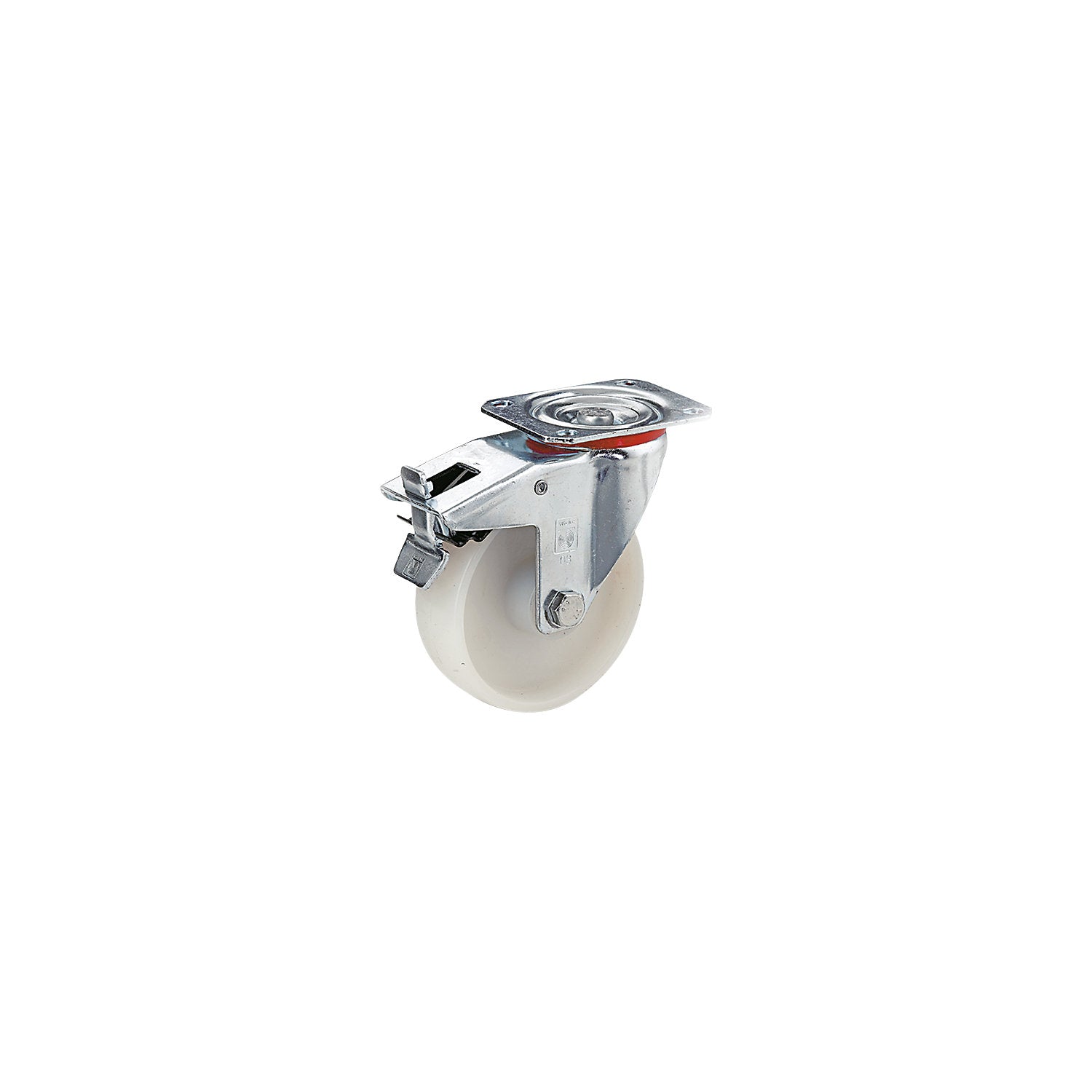

Nylon wheel, sheet steel housing, wheel Ø x width 125 x 38 mm, swivel castor with wheel stops, plain bearings.

Estimated delivery: 35 days

Nylon wheel, sheet steel housing, wheel Ø x width 125 x 38 mm, swivel castor with wheel stops, plain bearings

• Supplied = assembled
• Wheel diameter = 125 mm
• Structure = swivel castor with double stop
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 200 kg
• Wheel width = 38 mm
• Overall height = 155 mm
• Wheel bearing = plain bearing
• Temperature resistance = -20 °C to +80 °C
• Swivel castor offset = 38 mm
• Screw hole diameter = 9 mm
• Hub length = 50 mm
• Hub bore = 15 mm
• Model = transport castors
• Fixed castor plate dimensions = 102x87 mm
• Swivel castor plate dimensions = 105x80 mm
• Screw hole spacing = 76 - 80x60 mm
• Housing surface = galvanised and chrome-plated
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 1.46 kg
• Weight = 1.06 kg
• Sustainability = CO 2 footprint calculated
• Maintenance free, smooth running
• Hardwearing
• Largely resistant against many thinned acid and alkaline solutions
• Temperature resistant from -20 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection.
