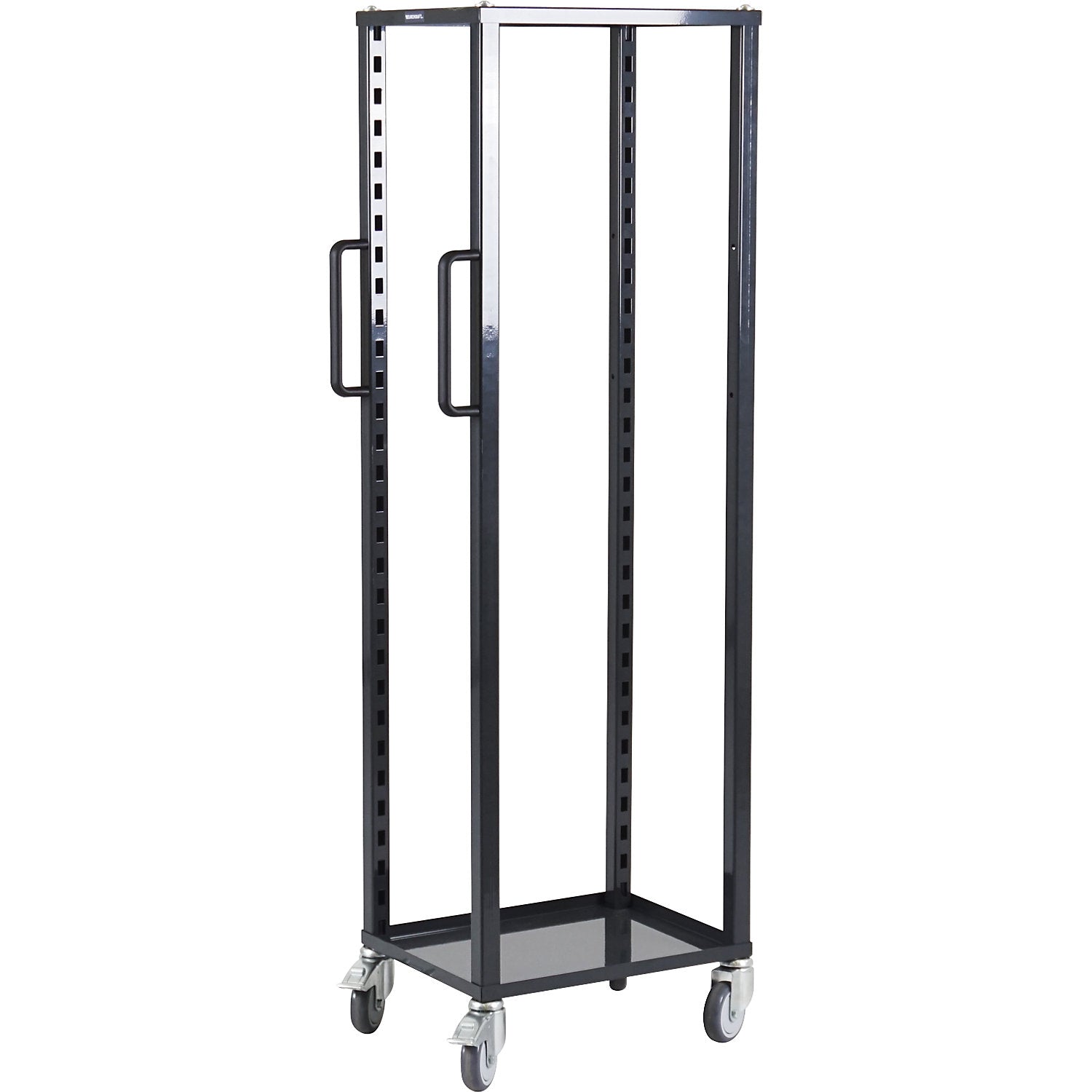

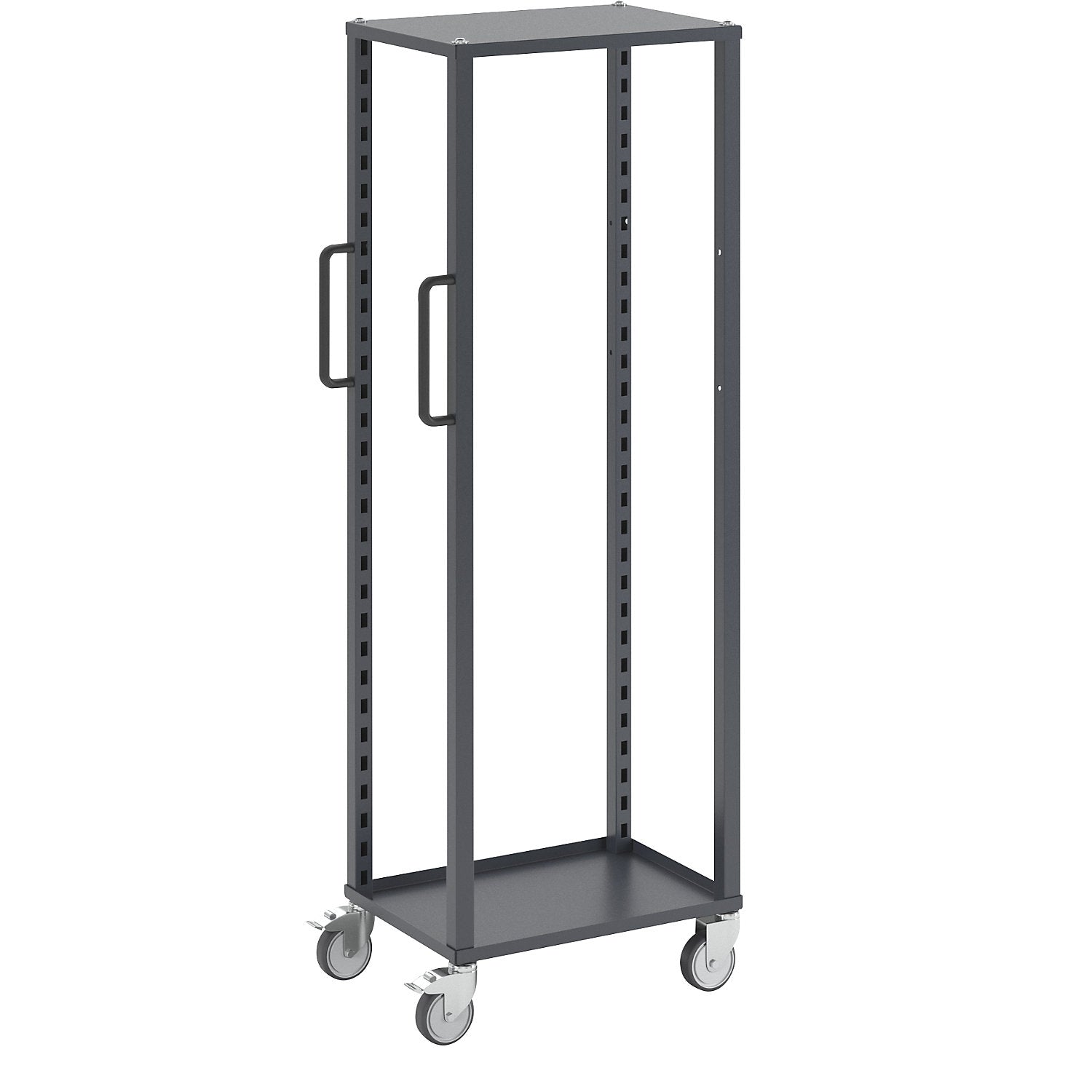

CustomLine platform trolley for open fronted storage bins, LxWxH 575 x 405 x 1680 mm, charcoal RAL 7016.

Estimated delivery: 29 days

CustomLine platform trolley for open fronted storage bins, LxWxH 575 x 405 x 1680 mm, charcoal RAL 7016

• Supplied = flat pack
• Number of containers = 0 pcs
• Height = 1680 mm
• Length = 575 mm
• Width = 405 mm
• Frame material = steel
• Frame colour = charcoal RAL 7016
• Wheel type = thermoplastic rubber
• Wheel fittings = 4 swivel castors, 2 with double stops
• Wheel diameter = 100 mm
• Max. load = 200 kg
• Wheel bearing = ball bearing
• Number of levels = 6 pcs
• Max. load per level = 30 kg
• Platform length = 500 mm
• Platform width = 317 mm
• Platform material = steel
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 25.1 kg
• Weight = 23.2 kg
• Modular and flexible system with simple installation
• Can be individually fitted and organised with 500 x 300 mm open fronted storage bins
• Height adjustable support rails for open fronted storage bins, adjustable in 50 mm increments
• Optimised for changing workflows and processes
• Compact dimensions, versatile and stable
• Can be upgraded with accessories
• The platform trolley for open fronted storage bins is a perfect solution that caters to the individual requirements of industry and manufacturing companies
• This innovative item of transport equipment, which comes from our versatile CustomLine product range, offers you flexibility and modularity due to different combination options
• The platform trolley for open fronted storage bins can be upgraded with accessories
• The general purpose trolley is a reliable item of equipment for your daily work, which has the flexibility to adapt to your needs and helps to increase efficiency in your company
• The intelligent modular principle allows you to modify the platform trolley for open fronted storage bins at any time to cater to your individual requirements
• The order picking trolley can be combined with a different number of open fronted storage bins, which are available separately as accessories
• Configure your perfect platform trolley with the matching 500 x 300 mm open fronted storage bins
• The support rails for the bins can be suspended at different heights within the frame
• The hole matrix on the posts makes the layout of the open fronted storage bins quick and flexible to change at any time in 50 mm increments
• Keep yourself prepared should processes or orders change, and ensure that you can react quickly
• The design of the trolley can accommodate changing component sizes, locations, uses and different employees - or can be retrofitted accordingly by purchasing accessories
• The two push handles can be secured to either side of the trolley as required
• The modern design of the trolley in light blue or charcoal is stylish and offers additional options for use and colour coding
• Simple customisation to company processes makes the CustomLine platform trolley for open fronted storage bins a sustainable and cost efficient alternative to buying an additional new product
• This versatility enables optimum utilisation of resources
• The stability and robustness of the order picking device enable safe transport and storage of components of different sizes
• In addition, the platform trolley offers numerous order picking options, making it suitable for use in industry, manufacturing companies, workshops and warehouses
• Note: this item consists of the platform trolley only
• Matching open fronted storage bins and support rails are available separately as accessories to give you maximum flexibility
• Supplied flat pack - easy self-assembly
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
