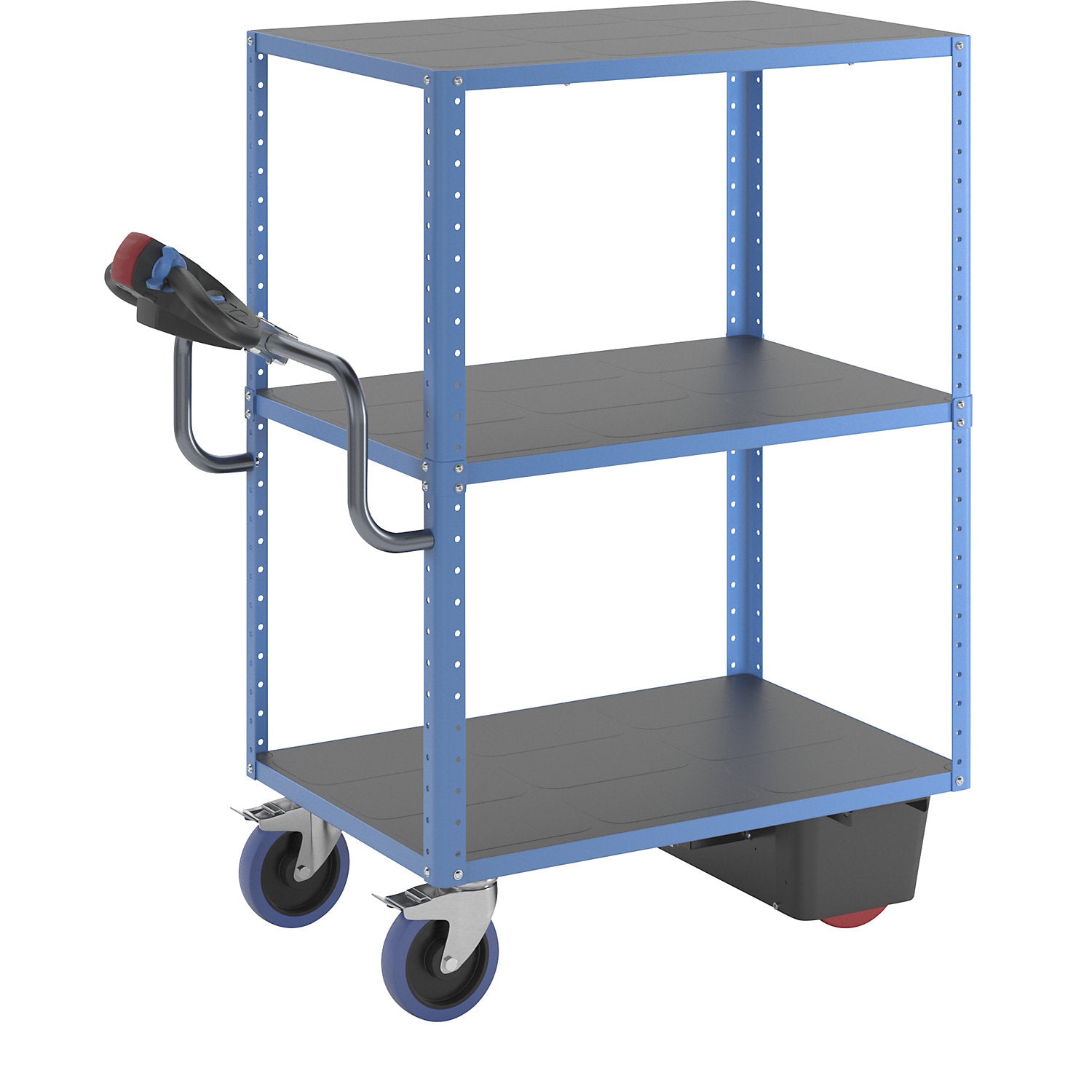

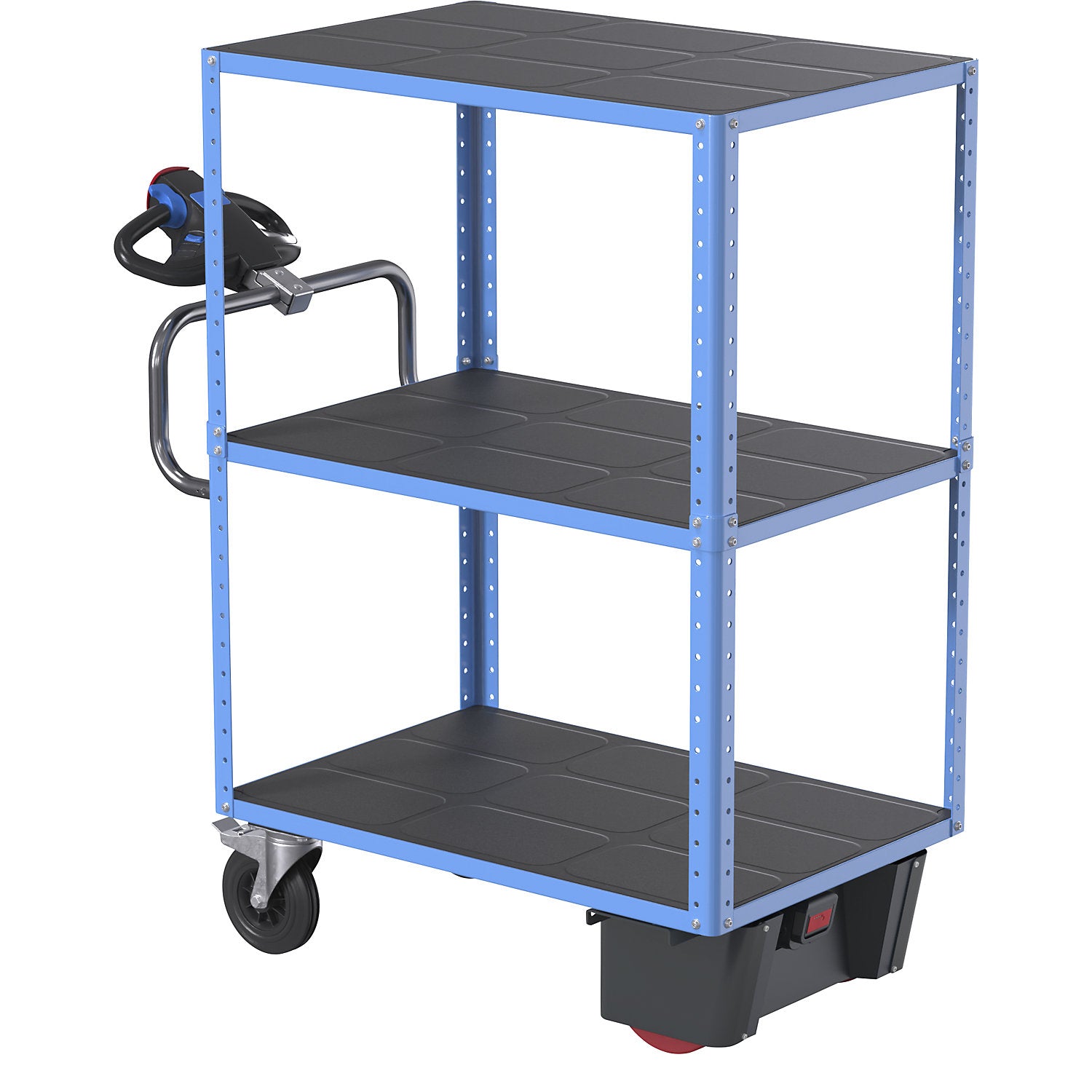

CustomLine shelf truck with electric drive, 3 shelves, light blue RAL 5012, fully elastic.

Estimated delivery: 41 days

CustomLine shelf truck with electric drive, 3 shelves, light blue RAL 5012, fully elastic

• Supplied = flat pack
• Number of levels = 3 pcs
• Frame colour = light blue RAL 5012
• Type of shelf trolley = 4 sided open
• Platform type = 1 base platform, 2 adjustable shelves
• Wheel fittings = 2 swivel castors with double stops, 2 fixed castors
• Length = 1050 mm
• Width = 700 mm
• Height = 1550 mm
• Max. load per shelf = 500 kg
• Shelf material = plastic
• Shelf heights = 275/900/1550 mm
• Number of shelves = 3 pcs
• Max. load = 500 kg
• Wheel diameter = 200 mm
• Wheel type = solid elastic
• Adjustment pattern for internal shelves = 50 mm
• Loading height = 290 mm
• Wheel bearing = roller bearing
• Platform width = 700 mm
• Platform length = 1050 mm
• Frame material = steel, powder coated
• Platform material = recycled plastic
• Customs tariff number = 87091190
• Country of origin = DEU
• Gross weight = 109.3 kg
• Weight = 107.3 kg
• Sustainability = CO 2 footprint calculated
• Ergonomic and smooth travel due to electric drive
• The drive is controlled by means of Bluetooth using the drawbar head
• Replaceable rechargeable battery system for unlimited operating time
• Intuitive operation with perfect steering control
• A component within the modular CustomLine system
• Trolley can be individually customised and flexible to upgrade with accessories
• Little time required for ergonomic adjustment of the working and handle height
• Max. load 500 kg
• The CustomLine shelf truck with our e-module, complete with powerful lithium-ion battery and charger
• Wireless - the drive is controlled by means of Bluetooth using the drawbar head
• The shelf truck with an electric drive is the perfect solution for the individual requirements encountered in industry and in manufacturing companies
• This innovative product, which is a component within our versatile CustomLine product range, offers you flexibility and modularity due to a range of combination options and it can be upgraded with accessories
• Promote ergonomic work processes in your company for the well-being of your employees, as the e-module makes it easy and efficient to transport loads of up to 500 kg
• The ergonomic handle of the e-module ensures comfortable use, and it can be adapted to different body sizes
• The shelf truck is reliable equipment that will help you with your daily work and is flexible to adapt to your needs while boosting efficiency in your company
• E-module The e-module is characterised by intuitive operation with perfect control for easy transport of loads up to 500 kg

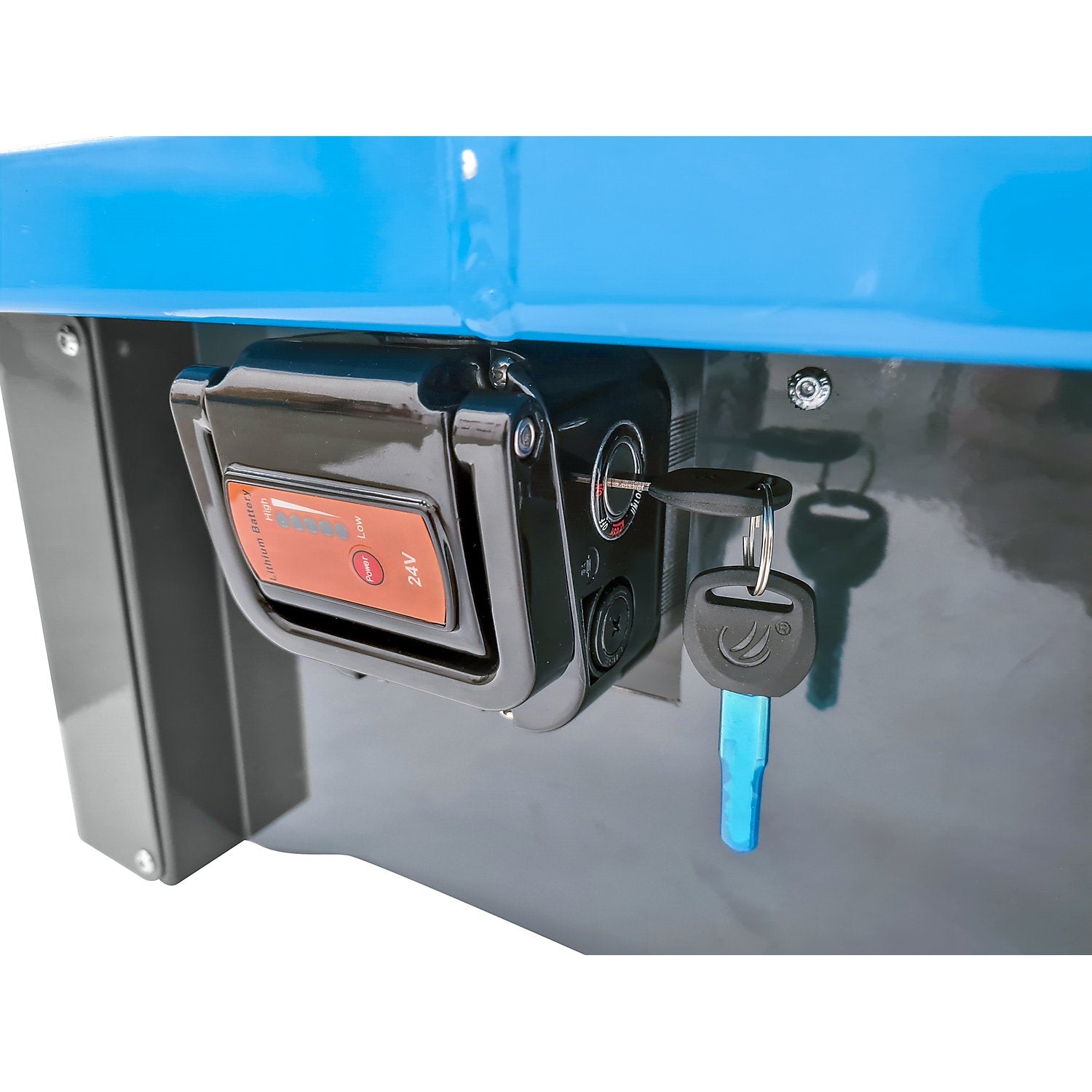

• The battery used for the drive consists of a rechargeable lithium-ion battery, the charging status of which is indicated visually on a battery status indicator
• The operating time is up to 8 hours per battery charge with average use
• The replaceable battery system makes it easy to exchange the empty battery for a fully charged one to ensure uninterrupted operation
• The connection between the drawbar head and drive is wireless and uses Bluetooth, which also enables use in fleet operation
• The charging time is just 6 hours for a full charge
• The e-module offers easy navigation, supported by fatigue-free operation due to the ergonomically shaped, multifunctional drawbar head
• Sturdy, tubular handles ensure it is easy to steer, and the stepless speed control is provided by two thumb switches, with a maximum speed of 4 km/h
• If required, a creep speed can be activated, which enables high precision forward and backward travel
• Additional safety features include a warning function in the form of a horn on the drawbar head and a belly switch to prevent entrapment when reversing
• The integrated foot protection ensures that there is no risk of becoming trapped under the drive
• The e-module does not require a certificate of competence for operation, and anti-theft protection is provided by an access control feature secured by a lock on the drive battery
• CustomLine The intelligent modular principle allows you to change the configuration of the shelf truck with electric drive at any time to suit your individual requirements
• Choose from our preconfigured items with three, four or five shelves.* The number of shelves can be increased by adding additional shelves
• Plastic shelves provide a secure grip for components to ensure everything stays in place
• You can also convert your shelf truck into an assembly trolley for greater versatility
• The trolley can be customised due to its modular design
• The corner posts with perforated profiles make it easy to secure the shelves at different heights and thereby customise them to suit your components
• Change the height of the trolley by combining corner posts of different lengths
• Additional shelves and corner posts with perforated profiles are available separately as accessories
• The modern design in light blue or charcoal is stylish and offers you even more options for use and colour coding
• For perfect travel comfort in combination with the electric drive, there are two types of tyres to choose from, these being solid rubber wheels or elastic wheels
• The e-module can be replaced with a complete set of tyres or be retrofitted to another trolley to suit requirements
• It is also available separately as an accessory for retrofitting to the CustomLine assembly trolley and shelf truck. *Follow the instructions for use Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
