CustomLine e-module retrofit set, for assembly trolleys and shelf trucks, with ergonomic push handle.

Estimated delivery: 48 days

CustomLine e-module retrofit set, for assembly trolleys and shelf trucks, with ergonomic push handle

• Supplied = flat pack
• Category = transport equipment and trolleys
• Material = steel
• Colour = light blue RAL 5012, charcoal RAL 7016
• Width = 685 mm
• Height = 255 mm
• Length = 430 mm
• Product type = spare parts/accessories
• Customs tariff number = 87099000
• Country of origin = DEU
• Gross weight = 37.3 kg
• Weight = 36.3 kg
• Suitable for CustomLine assembly trolleys and shelf trucks
• Ergonomic and smooth travel due to electric drive
• Move loads up to 500 kg with ease
• Includes push handle
• Wireless control of the drive by means of Bluetooth using the drawbar head
• Replaceable rechargeable battery system for unlimited operating time
• Intuitive operation with perfect steering control

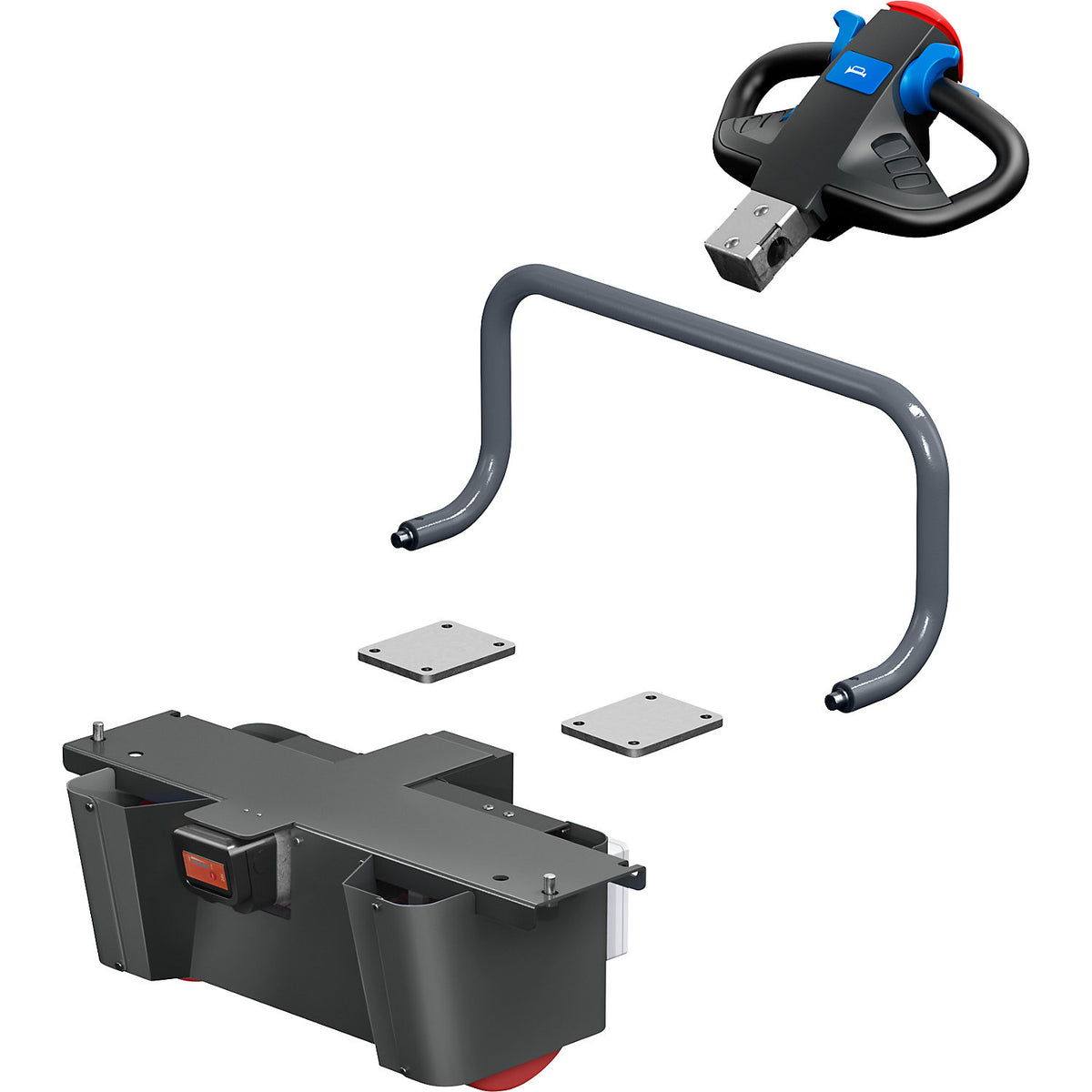

• The e-module for CustomLine assembly trolleys and shelf trucks, including an ergonomic push handle and complete with a powerful lithium-ion battery and charger
• Wireless - the drive is controlled by means of Bluetooth using the drawbar head
• Promote ergonomic work processes in your company for the well-being of your employees, as loads of up to 500 kg are easy and efficient to transport using the e-module
• The ergonomic handle of the e-module ensures comfortable use, and it can be adapted to different body sizes
• The e-module is characterised by intuitive operation with perfect control for easy transport of loads up to 500 kg

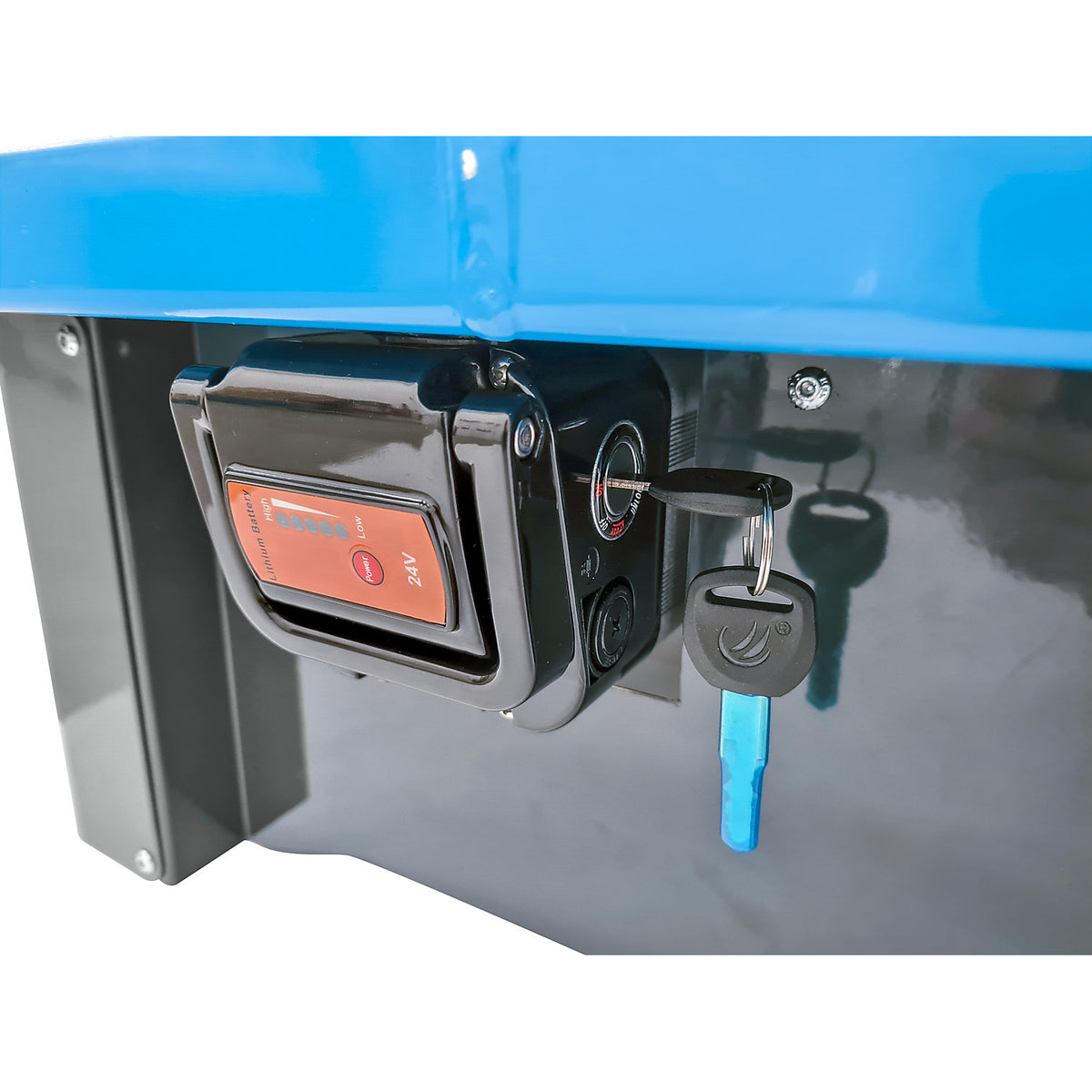

• The battery used for the drive consists of a rechargeable lithium-ion battery, the charging status of which is indicated visually on a battery status indicator
• The operating time is up to 8 hours per battery charge with average use
• The replaceable battery system makes it easy to exchange the empty battery for a fully charged one to ensure uninterrupted operation
• The connection between the drawbar head and drive is wireless and uses Bluetooth, which also enables use in fleet operation
• The charging time is just 6 hours for a full charge
• The e-module offers easy navigation, supported by fatigue-free operation due to the ergonomically shaped, multifunctional drawbar head
• Sturdy, tubular handles ensure it is easy to steer, and the stepless speed control is provided by two thumb switches, with a maximum speed of 4 km/h
• If required, a creep speed can be activated, which enables high precision forward and backward travel
• Additional safety features include a warning function in the form of a horn on the drawbar head and a belly switch to prevent entrapment when reversing
• The integrated foot protection ensures that there is no risk of becoming trapped under the drive
• The e-module does not require a certificate of competence for operation, and anti-theft protection is provided by an access control feature secured by a lock on the drive battery
• CustomLine The intelligent modular principle allows you to change the configuration of the CustomLine assembly trolley and shelf truck at any time to suit your individual requirements
• The innovative products offer you flexibility and modularity with their various combination options and upgrades by adding accessories
• Choose from our preconfigured items with different shelves.* The number of shelves can be increased by adding additional shelves
• Plastic shelves provide a secure grip for components to ensure everything stays in place
• You can also convert your shelf truck into an assembly trolley for greater versatility
• The trolley can be customised due to its modular design
• The corner posts with perforated profiles make it easy to secure the shelves at different heights and thereby customise them to suit your components
• Change the height of the trolley by combining corner posts of different lengths
• Additional shelves and corner posts with perforated profiles are available separately as accessories
• The modern design in light blue or charcoal is stylish and offers you even more options for use and colour coding. *Follow the instructions for use
