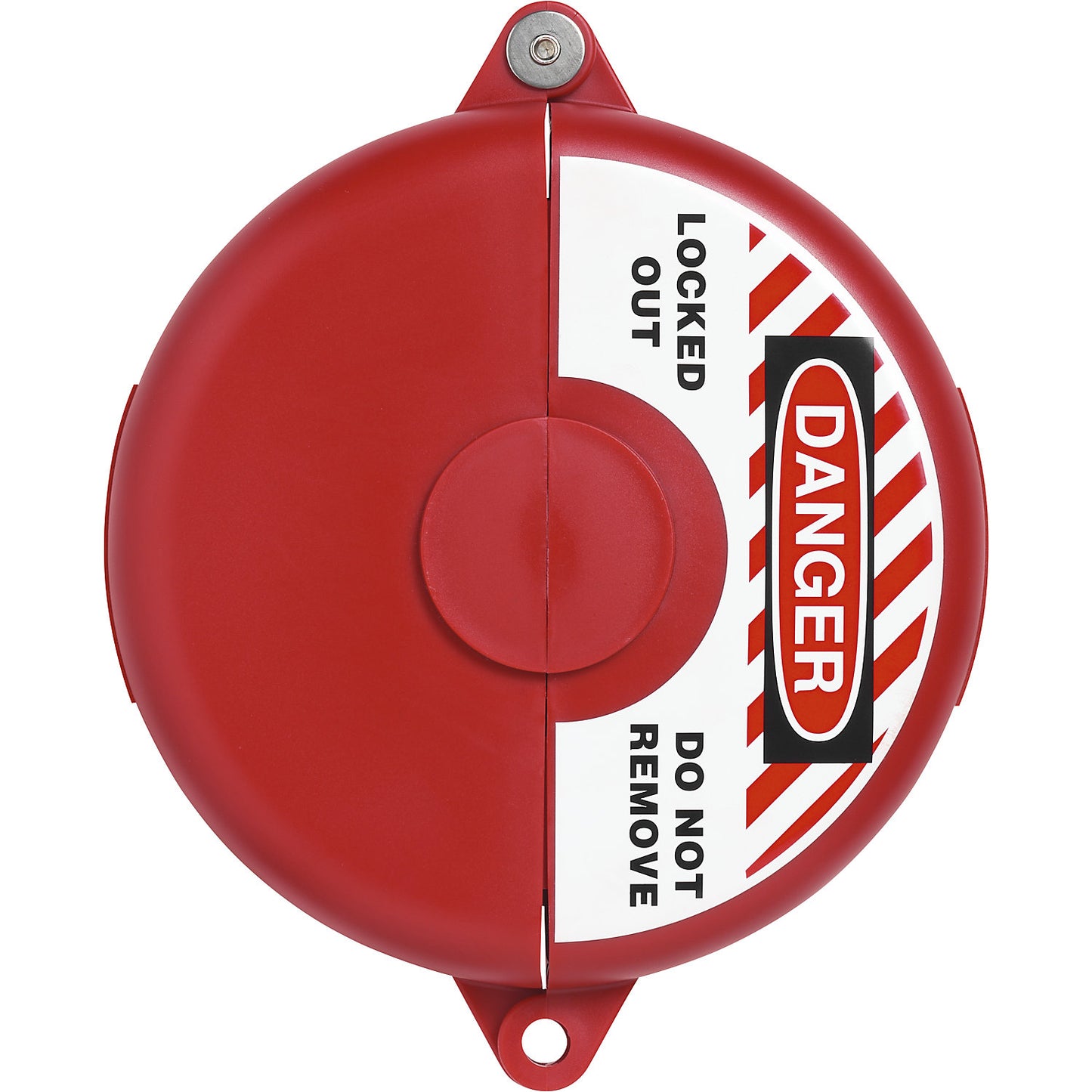

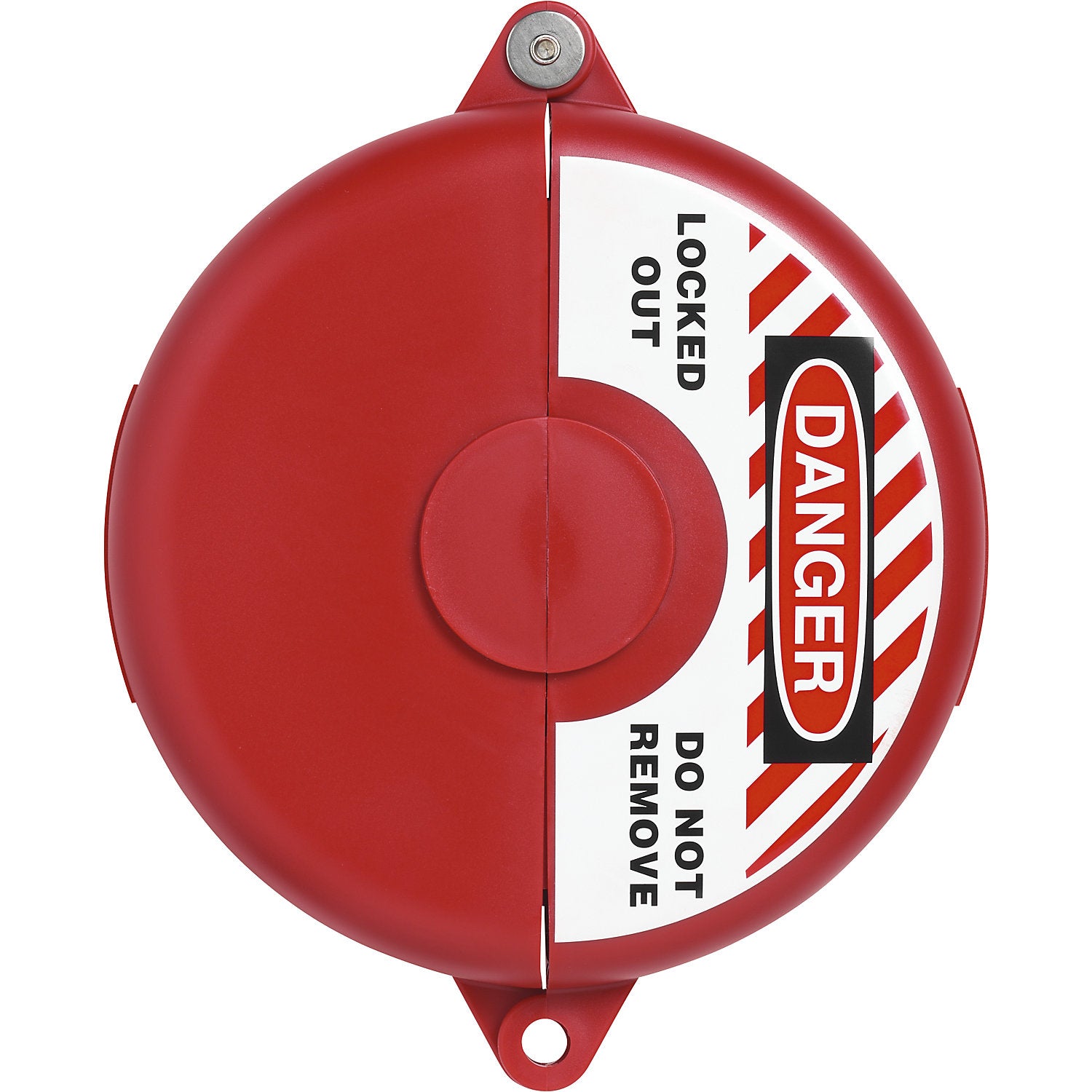

Handwheel locking, V307, for globe valves 5'' - 6.5'', red.

Estimated delivery: 29 days

Handwheel locking, V307, for globe valves 5'' - 6.5'', red

• Supplied = assembled
• Colour = red
• Number of suspension points = 1 pcs
• Material = polypropylene
• Height = 228 mm
• Width = 184 mm
• Depth = 54 mm
• Product type = lockout/tagout products
• Customs tariff number = 39269097
• Country of origin = CHN
• Gross weight = 0.32 kg
• Weight = 0.3 kg
• Sustainability = CO 2 footprint calculated
• High quality polypropylene: durable, resistant, non-conductive
• For padlocks with a shackle diameter of up to 9 mm
• Unique release point for handwheels with spindle
• Covers all standard valve sizes
• Completely encloses the handwheel
• Handwheel lockout - robust locking element for secure lockout-tagout applications The handwheel lockout reliably protects valves from accidental operation
• As a durable locking element for lockout-tagout applications, the maintenance lockout fully encloses the handwheel and supports clear securing during maintenance and servicing work
• Made of high-quality polypropylene, the access prevention device impresses with its high resistance, durability and non-conductive properties
• The handwheel lockout covers all common valve sizes and is therefore suitable for numerous areas of application in industry, trade and technical systems
• An integrated knock-out section also allows use on handwheels with a spindle and expands the application possibilities
• To secure it, the handwheel is fully enclosed and locked with a padlock
• The handwheel lockout is designed for padlocks with a shackle diameter of up to 9 mm
• As part of lockout-tagout, the locking element clearly signals that the valve is closed and must not be operated
• This clearly identifies workflows and effectively reduces operating errors

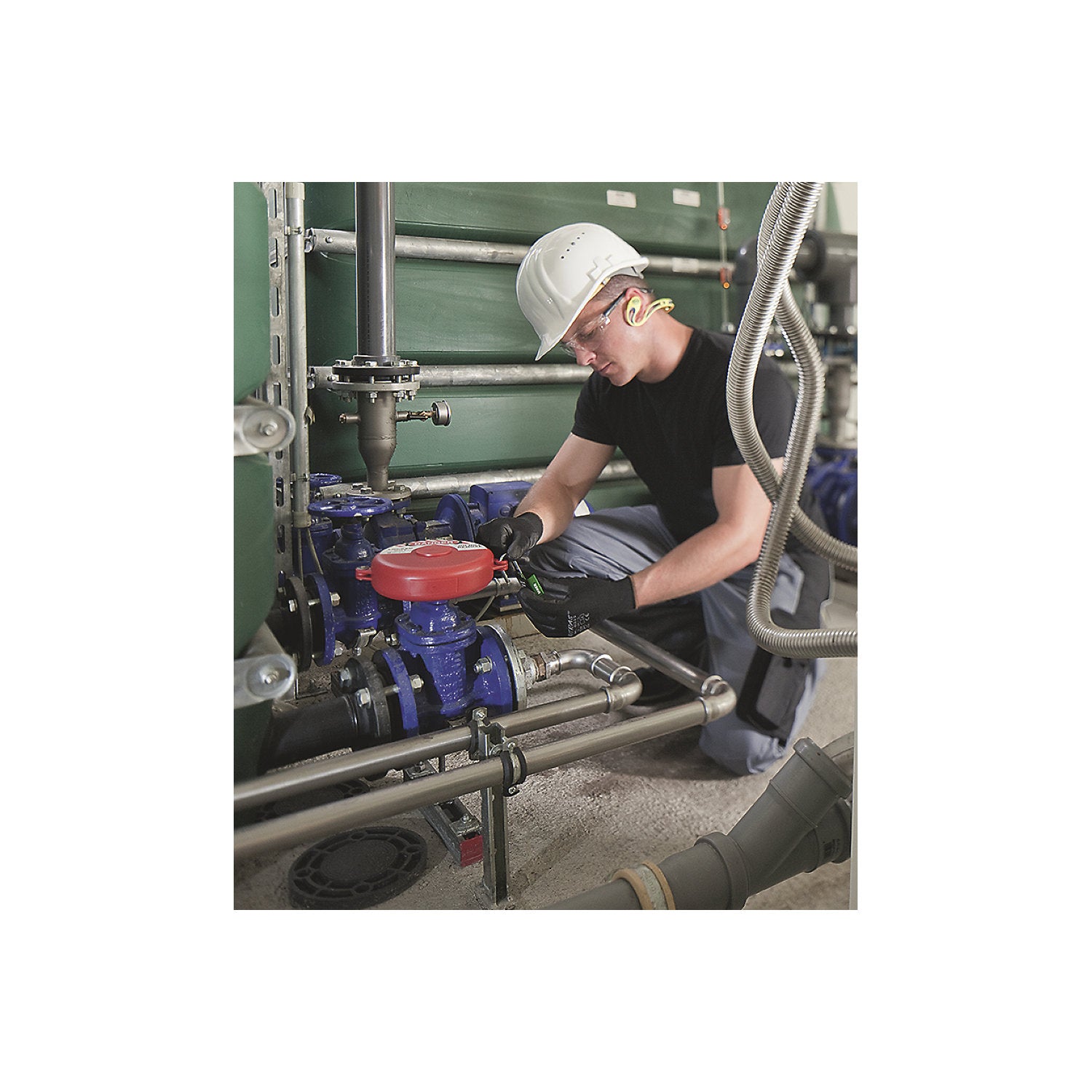

• The handwheel lockout is ideal for securing valves and prevents accidental access to the handwheel
• It supports the consistent implementation of lockout-tagout measures and helps to prevent misunderstandings in day-to-day work as well as resulting workplace accidents
• The robust locking element offers a reliable solution for safety-relevant maintenance and service work.
