Foam injector, for IBC, 6.5 - 7.5 bar.

Estimated delivery: 53 days

Foam injector, for IBC, 6.5 - 7.5 bar

• Max. operating pressure = 6,5-7,5 bar
• Colour = stainless steel
• Material = V4A stainless steel
• Product type = spraying equipment
• Customs tariff number = 84138100
• Country of origin = ---
• Gross weight = 14.07 kg
• Weight = 12.87 kg
• Sustainability = Energy efficient, CO 2 footprint calculated
• Resistant to alkaline solutions up to pH 14
• No pressurised container required
• Compressed air adjustable from 6.5 to 7.5 bar
• Spraying efficiency 3.1 m² per minute
• Durable system, thanks to high-quality processed materials made of V4A

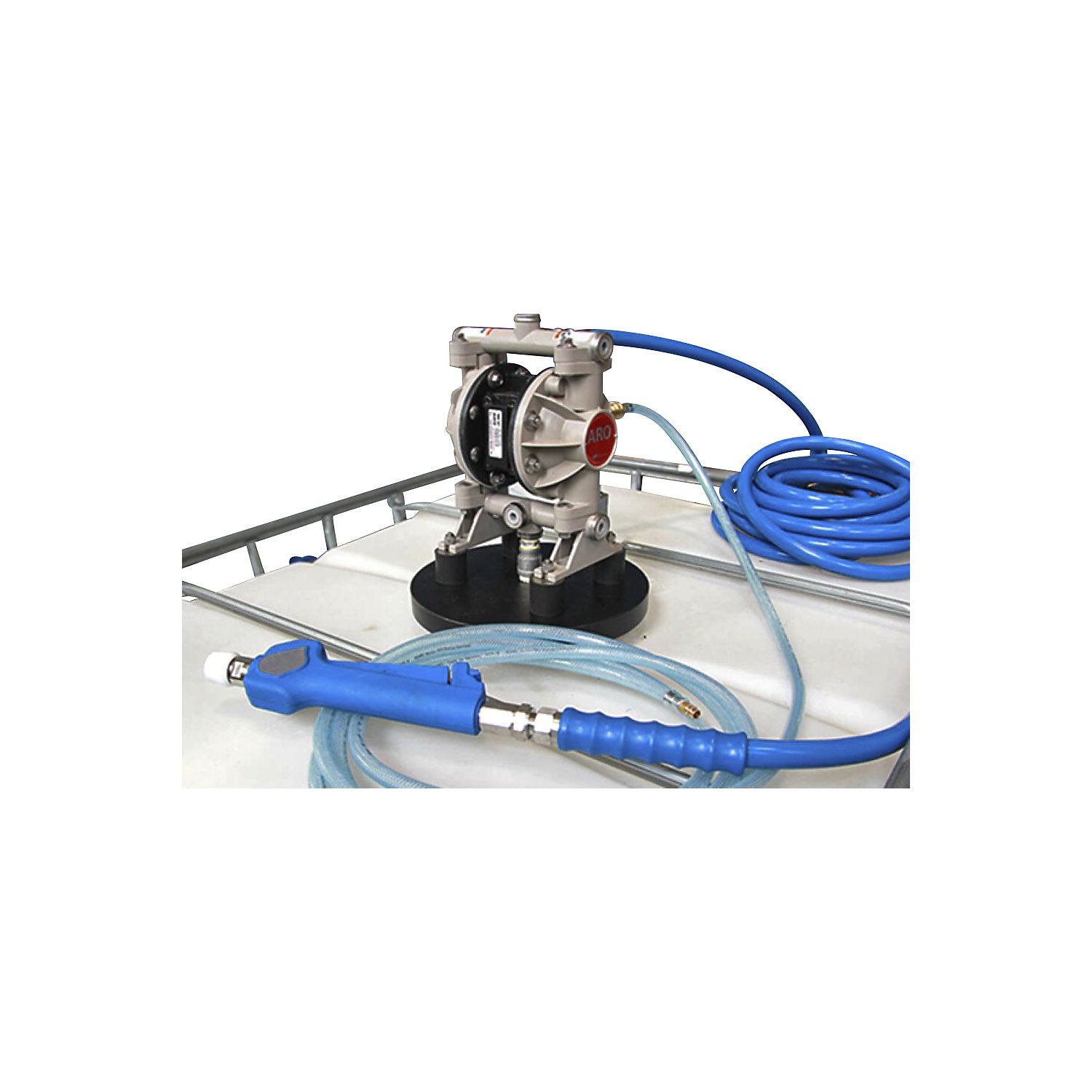

• Foam injector - adjustable foam consistency for large cleaning surfaces The foam injector with a robust stainless steel housing produces a uniform cleaning foam
• The powerful sprayer enables an area coverage of up to 3.1 m² per minute and supports efficient cleaning work in professional use
• Compressed air flows around the drawn-in cleaner in the injector
• This produces foam, which reaches the gun via the hose and is then applied to the surface
• The sprayer is suitable for foaming cleaners in the entire pH range from 0 to 14, for example UNO AV or Power Cleaner 200
• A mixing valve regulates the consistency of the foam
• This allows the consistency to be adapted to the cleaning agent used and the respective surface
• The rotatably mounted mixing valve makes it possible to always align the hose nozzle downwards
• Once the desired setting is reached, the adjusting wheel can be removed and replaced by the enclosed cap nut to prevent accidental changes
• Dosing valve, pressure reducer and needle valve support controlled operation
• The required compressed air range can be set between 6.5 and 7.5 bar
• The mains connection for the air valve is located directly on the foam injector
• A foam lance with a 10 m long hose creates generous freedom of movement
• This allows extensive or hard-to-reach areas to be treated

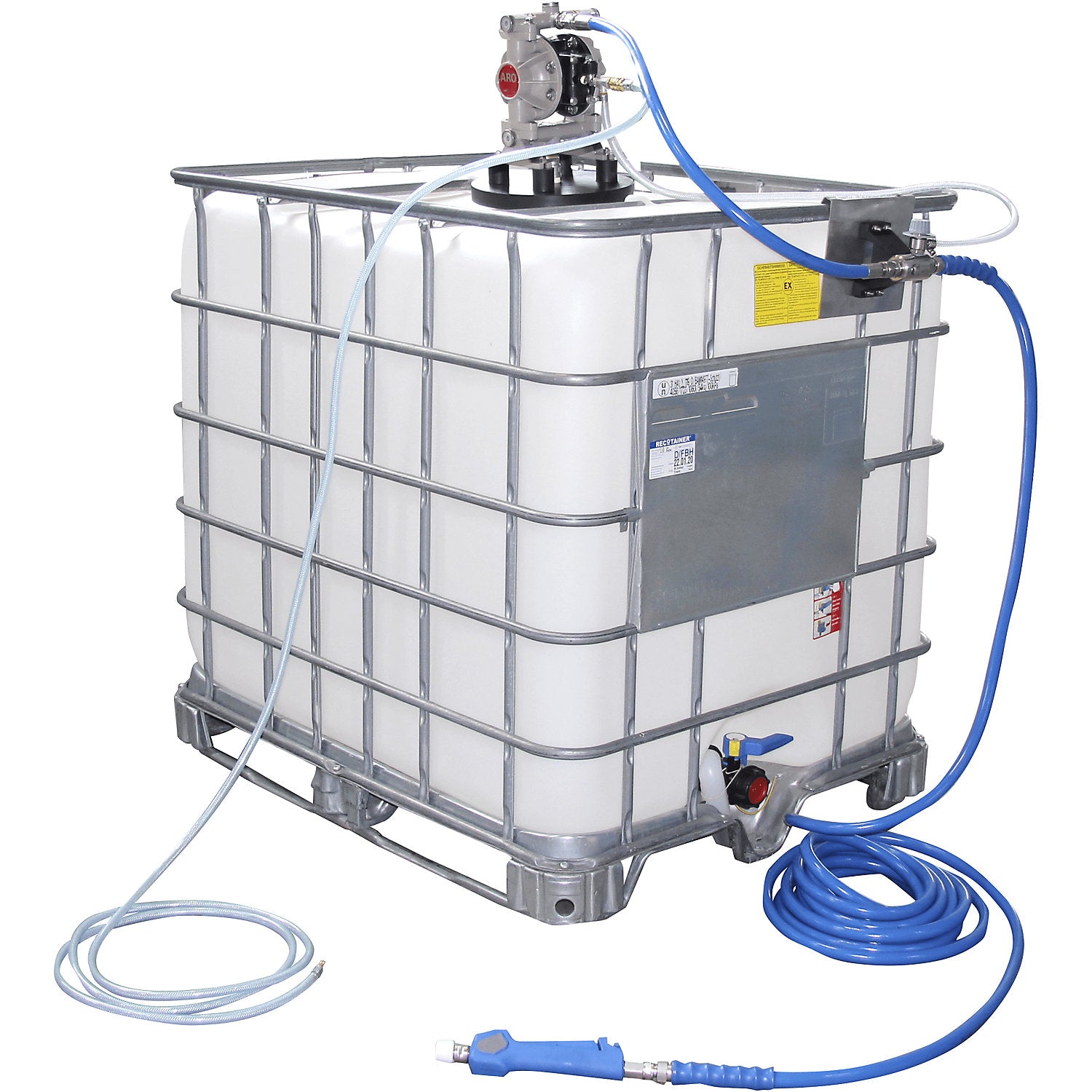

• An included adapter serves to securely attach the pressure sprayer to the respective container
• The simple operation and the virtually maintenance free design reduce the effort during operation
• The sprayer is suitable for large-scale cleaning work in industry, workshop, vehicle care, agriculture and food processing.
