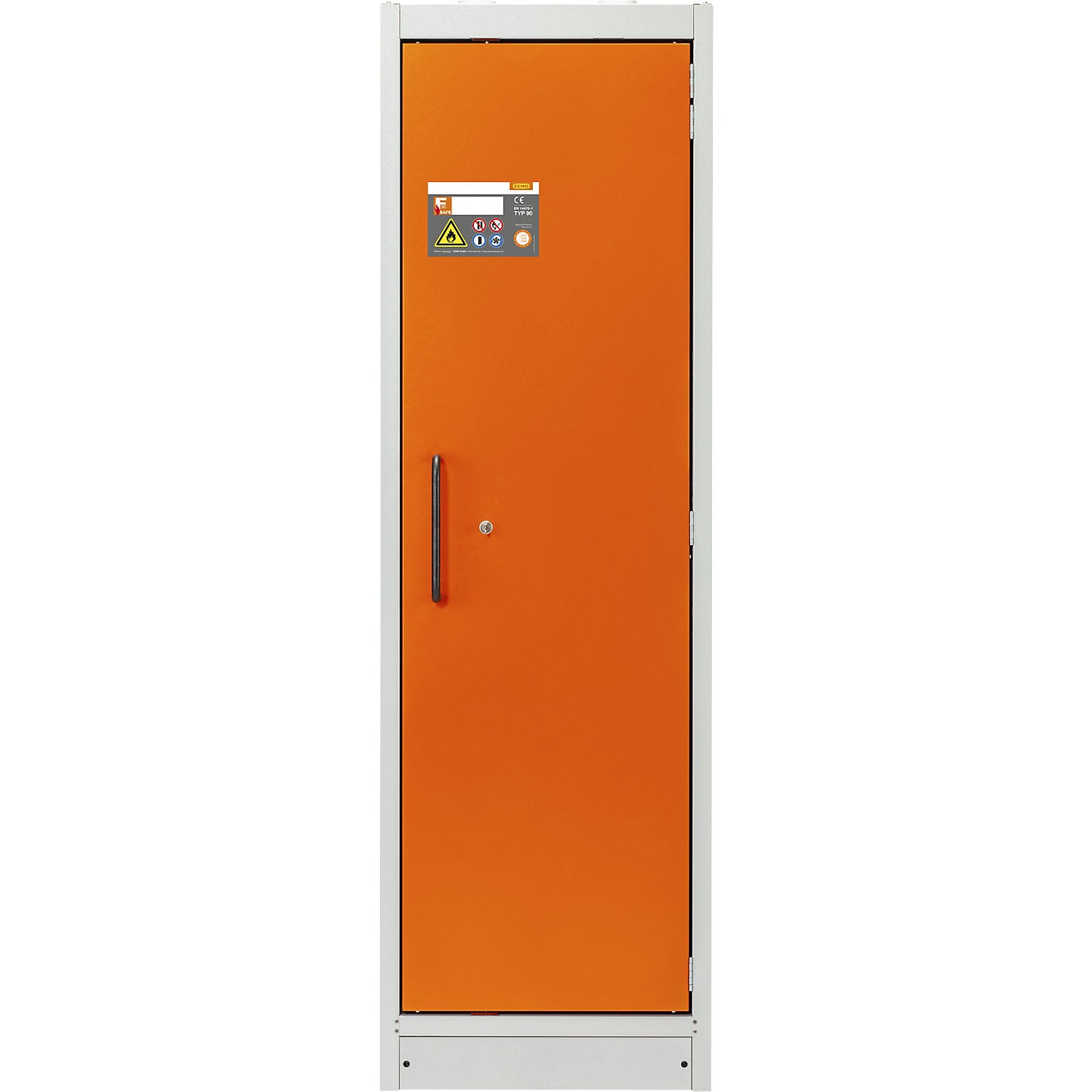

Fire resistant hazardous goods storage cupboard type 90 PROline, door hinged on right, HxWxD 1950 x 600 x 600 mm.

Estimated delivery: 56 days

Fire resistant hazardous goods storage cupboard type 90 PROline, door hinged on right, HxWxD 1950 x 600 x 600 mm

• Supplied = pre-assembled, final assembly by customer
• Fire resistance = 90 minutes
• Material = special fire resistant boards, sheet steel, powder coated
• Height = 1950 mm
• Width = 600 mm
• Depth = 600 mm
• Body colour = light grey RAL 7035
• Door colour = bright red orange RAL 2008
• Internal height = 1660 mm
• Internal width = 450 mm
• Internal depth = 490 mm
• Hazard class = for flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3)
• Ventilation = ventilation connection (NW 75)
• Door type = hinged door
• Door version = 1 door
• Lock type = cylinder lock with 2-point lock
• Number of doors = 1 pcs
• Shelf material = sheet steel, powder coated
• Max. shelf load = 75 kg
• Shelf height adjustment increments = 32 mm
• Customs tariff number = 94032080
• Country of origin = ---
• Gross weight = 286 kg
• Weight = 265 kg
• Sustainability = CO 2 footprint calculated
• For regulation compliant storage of flammable media in accordance with EN 14470-1 and TRGS 510 (appendix 1)
• Type tested protection against fire for 90 minutes
• Doors lock in any position - open doors close automatically in case of fire
• The doors lock automatically when the doors are closed
• Fire insulation and high quality door seals
• Permanently integrated, forklift accessible plinth - for easy transport of the cupboard
• Includes a plinth cover plate to cover the forklift accessible plinth
• Height adjustment screws for levelling on uneven surfaces
• Ventilation connection (DN 75) in the roof
• Labelling in accordance with EN 14470-1 (2023 edition)
• Load verification for the weight of the fan on the top of the cupboard
• Extremely robust, durable construction made of sheet steel with hardwearing textured powder coating and maximum torsional rigidity
• Earth connection on the outside of the cupboard to prevent ignition hazards due to electrostatic charging

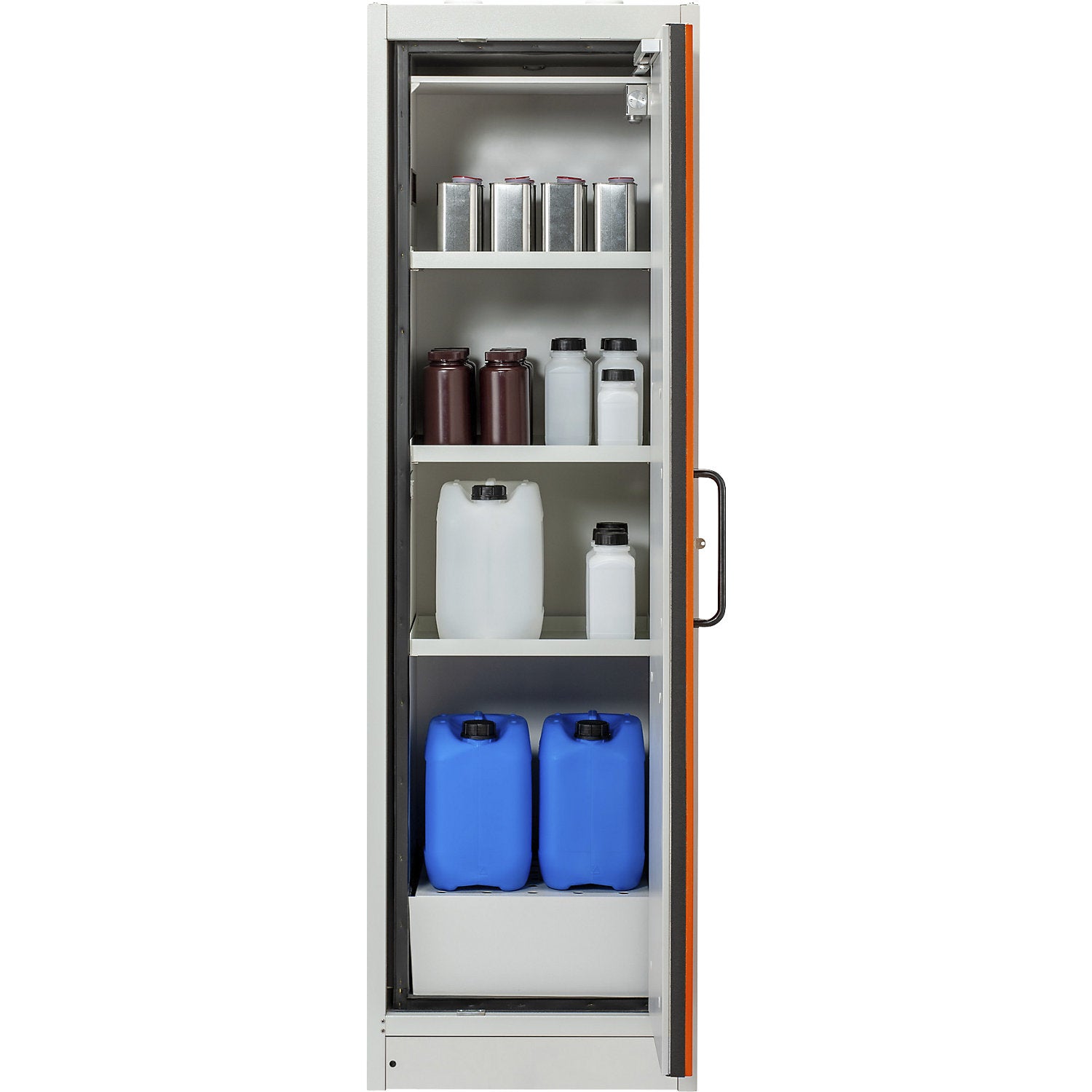

• Interior fittings: - 3 tray shelves made of sheet steel, powder coated, each with a max. load of 75 kg (with evenly distributed load), adjustable in increments of 32 mm - 1 powder coated sheet steel base sump tray, capacity 33 litres, including perforated plate insert, tested in accordance with StawaR / ÜHP - Secure 2-point lock for optimum access protection Optional accessories: additional tray shelves, exhaust air fan, recirculation fan, cable duct for installation of measurement technology or fire alarm system (see Accessories).
