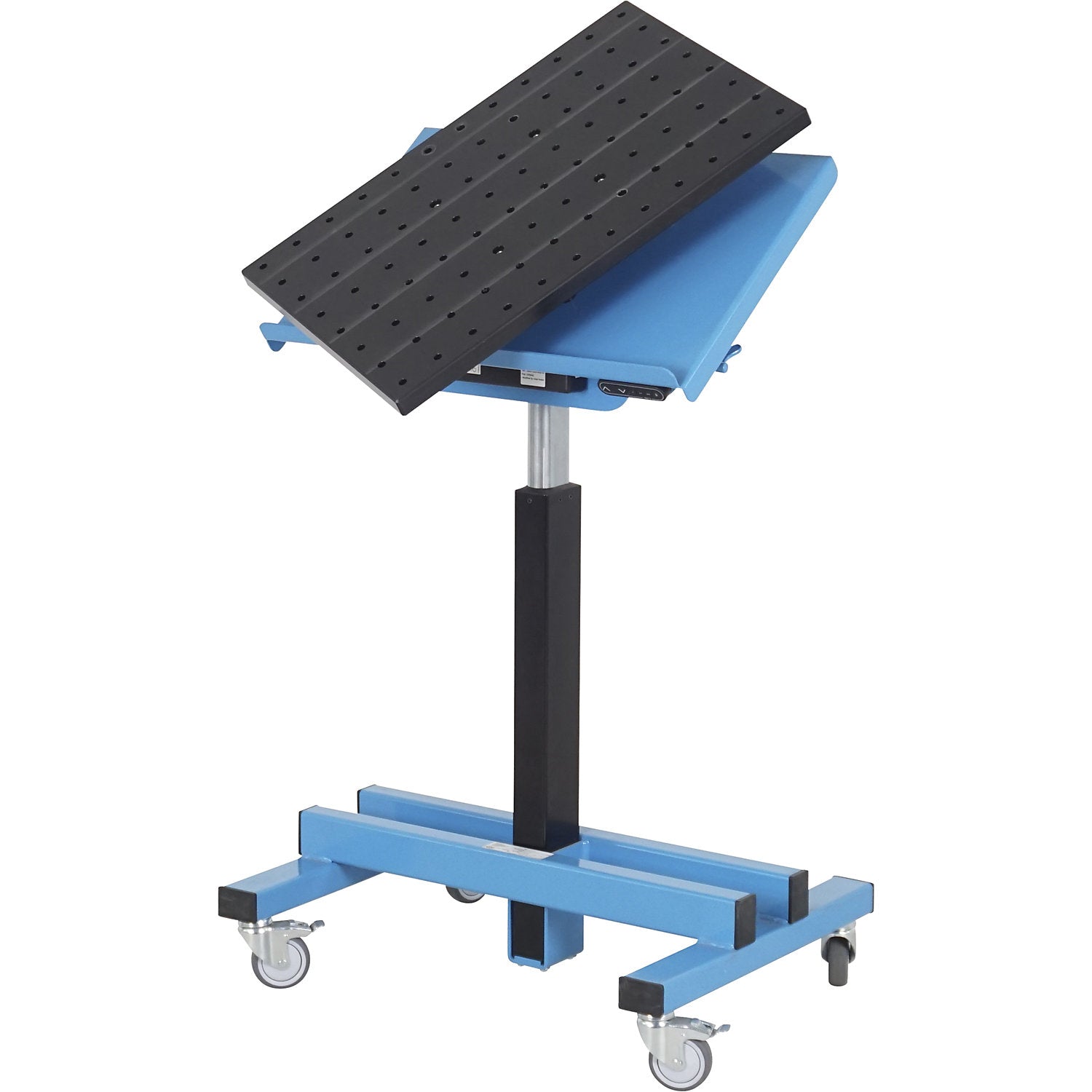

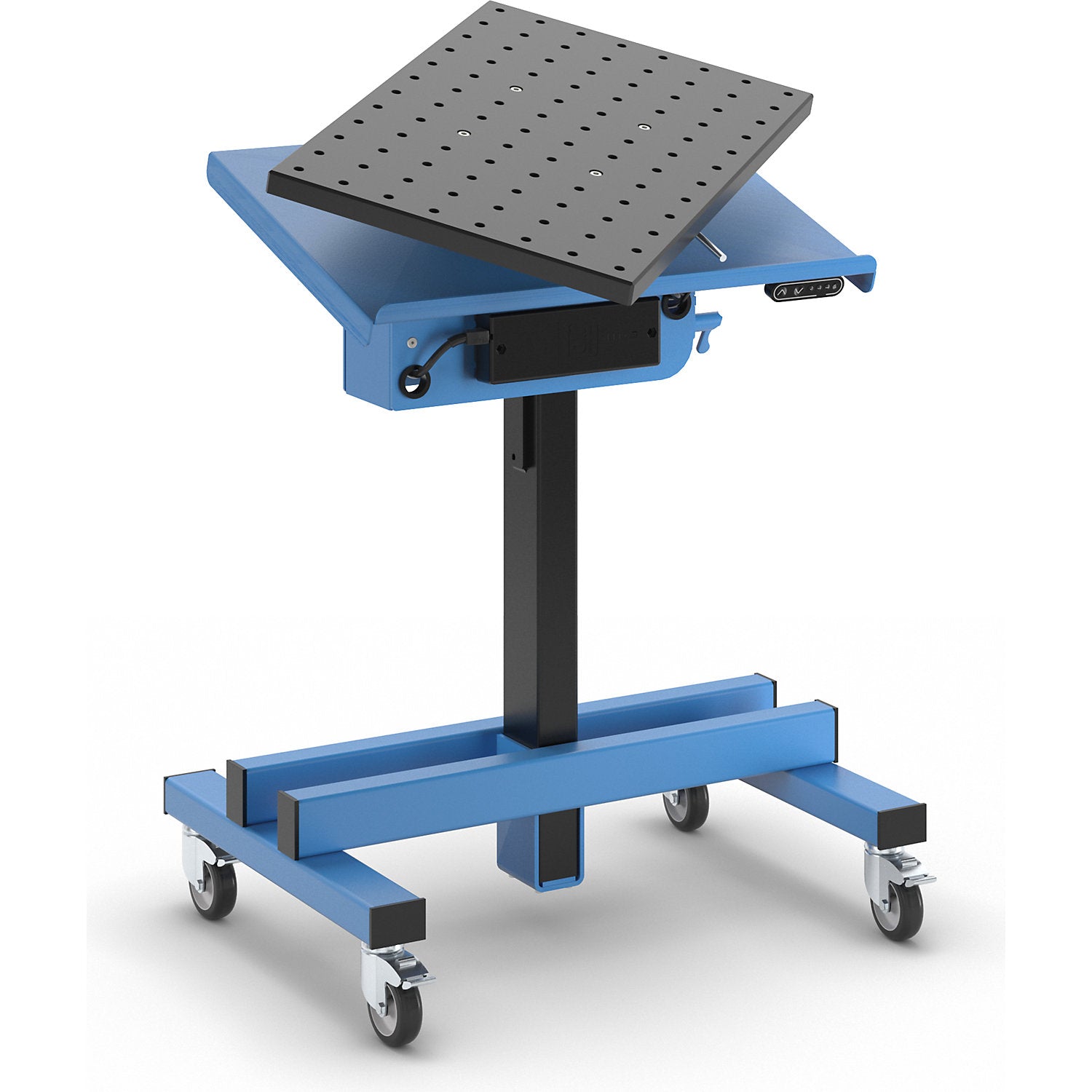

Electric material stand, with rotating unit, platform LxW 600 x 400 mm.

Estimated delivery: 42 days

Electric material stand, with rotating unit, platform LxW 600 x 400 mm

• Supplied = pre-assembled, final assembly by customer
• Max. load = 125 kg
• Platform length = 600 mm
• Platform width = 400 mm
• Height adjustment range = 770 - 1270 mm
• Slope = 0° - 40°
• Type of height adjustment = infinite height adjustment at the touch of a button
• Frame material = steel
• Frame colour = blue
• Wheel fittings = 4 swivel castors with wheel stops
• Wheel type = solid rubber
• Wheel diameter = 75 mm
• Product type = material stands
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 38 kg
• Weight = 35 kg
• Sustainability = CO 2 footprint calculated
• Rotating fixture for the assembly or inspection of products
• Modular plug-in system for the perforated plate for flexible component arrangement
• Particularly ergonomic - infinitely height adjustable with load, without effort
• Can be tilted into 5 positions by 10° per increment - flexible to adapt
• Replaceable rechargeable battery system for unlimited operating time. 3 position memory for automatic approach of saved heights
• Ergonomics for your production facility: the eurokraft pro electric material stand makes your production and assembly processes noticeably easier
• The material stand is distinguished by its electric and infinite height adjustment , which can be carried out without requiring physical effort even under load
• The tilt is flexible to adjust in five increments of 10° each, which enables ergonomic adaptation to different work requirements
• The rechargeable battery system ensures continuous operation without disruption - one battery charge lasts for up to 80 cycles at full load
• The four swivel castors with wheel stops keep the e-material stand mobile, manoeuvrable and safe at the same time
• The intuitive operation with responsive operating buttons simplifies handling
• A three position memory automatically moves the device to the saved heights when actuated
• Rotating unit: The rotating perforated plate system makes ergonomic and highly versatile assembly, measurement and testing of components even easier
• Using a simple lever mechanism, the perforated plate can rotate freely around the centre and be locked again to suit the work requirements
• The modular plug-in system of the plate allows the fixtures to be individually adapted to component sizes
• Stop rails and socket pins (each available as accessories) can be set up individually on the perforated plate
• The modular plug-in system allows a wide range of fixtures to be realised
• This modular design makes the e-material stand with a rotating unit the perfect solution for efficient and customised production requirements
• Additional rechargeable batteries and the charger are available as accessories.
