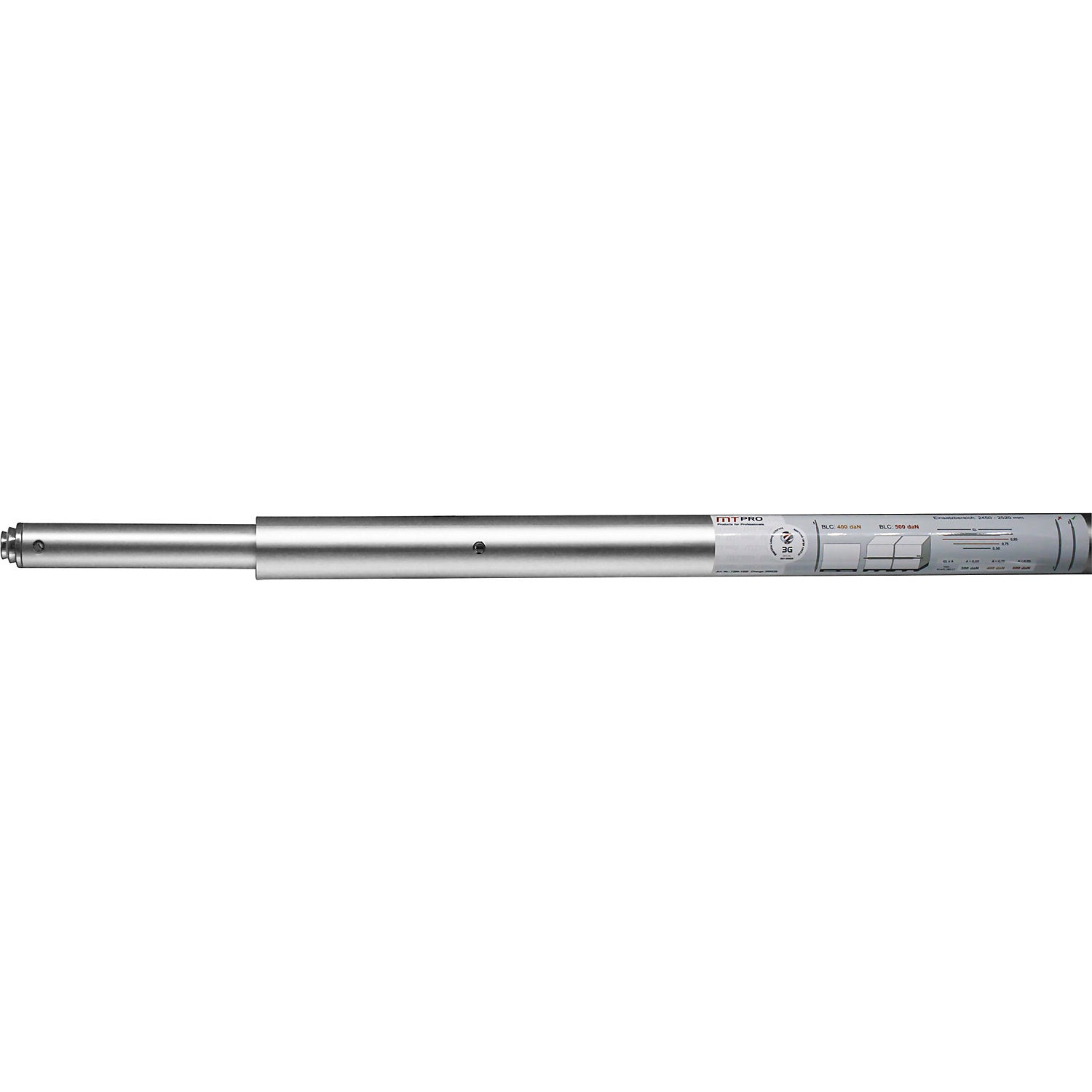

Round shoring bar, made of aluminium, application range 2450 - 2520 mm, locking force 300 daN.

Estimated delivery: 34 days

Round shoring bar, made of aluminium, application range 2450 - 2520 mm, locking force 300 daN

• Supplied = assembled
• Material = aluminium
• Adjustment range = 2450 - 2520 mm
• Max. load = 500 daN
• Colour = silver
• Product type = clamping bars
• Customs tariff number = 76169990
• Country of origin = CHN
• Gross weight = 5 kg
• Weight = 4.7 kg
• Sustainability = CO 2 footprint calculated
• Lightweight due to aluminium construction
• Can be used in anchor rails with hole diameters of 20 and 25 mm
• Can be shortened to a total length of 800 mm
• Round shoring bars are used in combination with anchor rails, e.g
• Airline rails, vertically or horizontally in vans, box bodies, swap bodies, etc
• Require two anchor rails installed opposite each other to lock in place
• For spaces: 2450 - 2520 mm
• Labelling with stickers

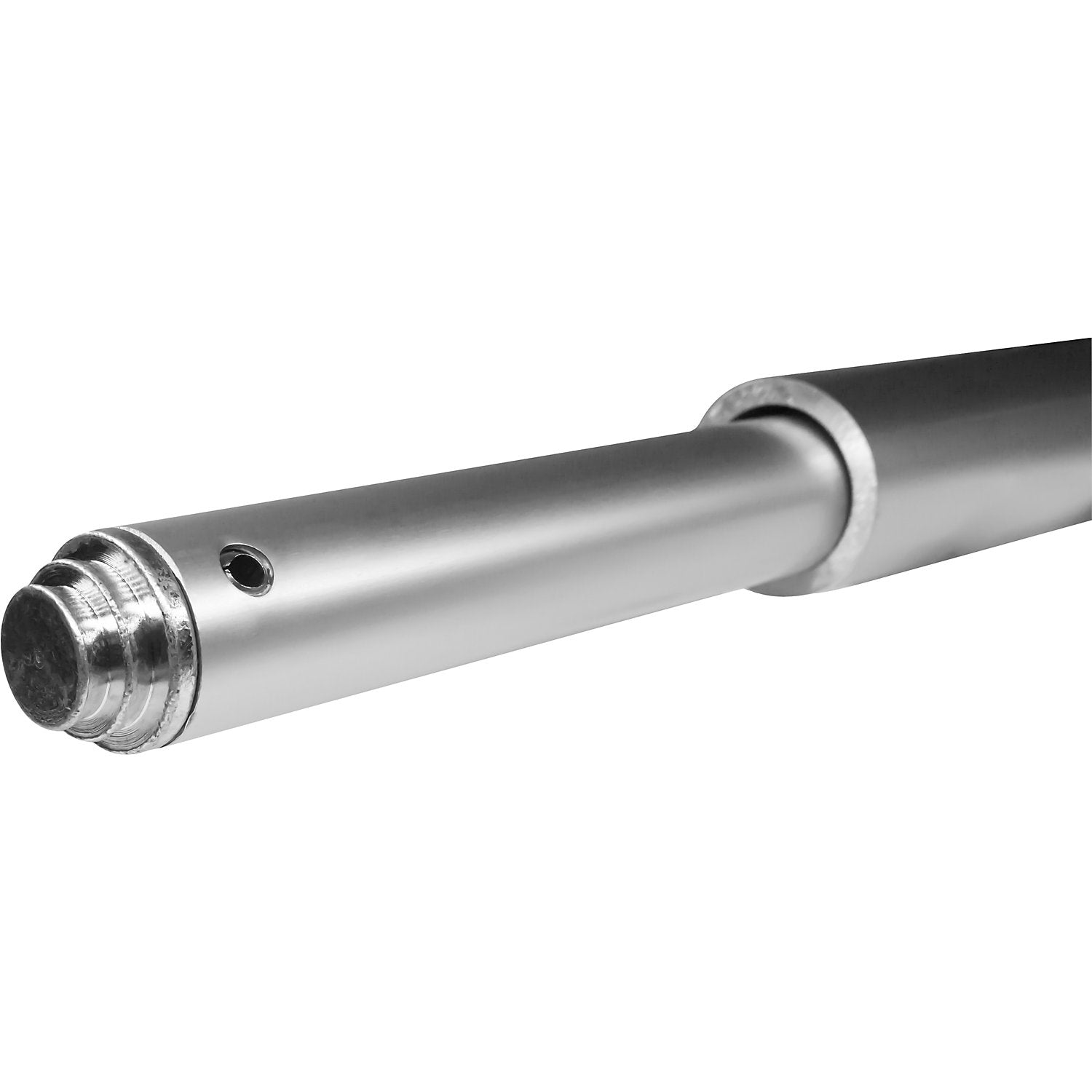

• Model: aluminium Ø 42 mm, with conical combination pins Ø 19/24 mm on both sides.
