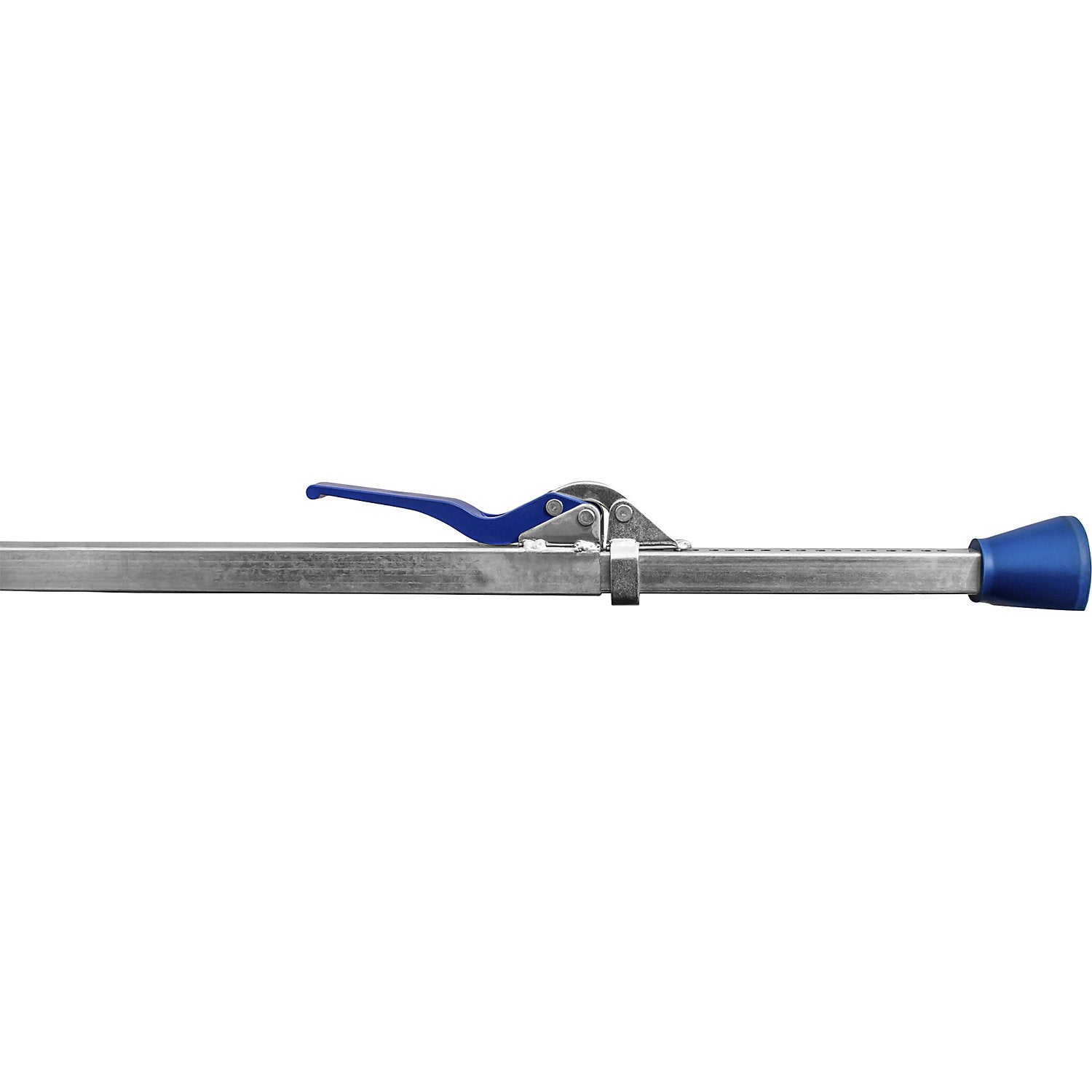

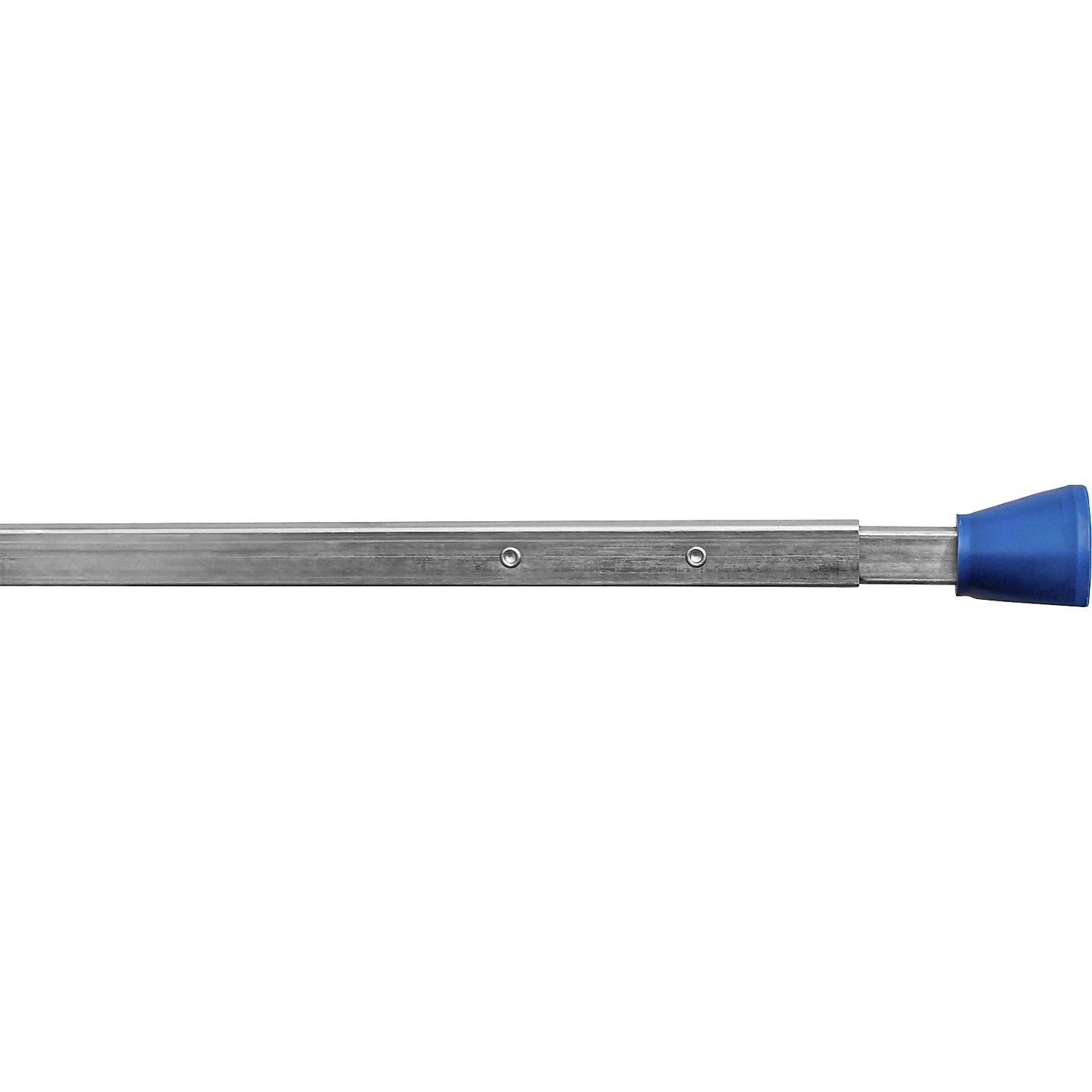

Steel clamping bar, operating range 1880 - 2850 mm, locking force 130 daN.

Estimated delivery: 34 days

Steel clamping bar, operating range 1880 - 2850 mm, locking force 130 daN

• Supplied = assembled
• Material = steel
• Adjustment range = 1880 - 2850 mm
• Max. load = 130 daN
• Colour = silver
• Product type = clamping bars
• Customs tariff number = 73269098
• Country of origin = CHN
• Gross weight = 7.2 kg
• Weight = 6.9 kg
• Sustainability = CO 2 footprint calculated
• Used by clamping in place, therefore no rails required as an anchoring option
• Very large adjustment range
• Closely spaced adjustment grid for controlled application of force
• Precise adjustment through a fine adjustment grid
• Robust model made of zinc plated steel
• With the clamping bar made of zinc plated steel, you secure cargo quickly, flexibly and reliably during transport
• Whether in vans, box bodies, swap bodies or pedestals - the clamping bar prevents goods from slipping and creates an easy way to achieve positive-fit load securing
• Securing is achieved by clamping between the vehicle walls, so that no additional rails or fixed anchoring points are required
• A prerequisite is sufficiently stable side walls that can absorb the resulting clamping forces
• Thanks to its generous application range from 1880 to 2850 mm, the clamping bar is suitable for a wide variety of vehicle and cargo space widths
• The fine adjustment grid allows precise adaptation to the respective situation and ensures a controlled application of force
• Anti-slip end plates increase the holding force while protecting the contact surfaces
• The robust model made of zinc plated steel is designed for daily use in everyday transport and logistics and convinces through high stability and being durable
• Model: zinc plated steel, 35 x 35 mm, with anti-slip foot on both sides
• Clamping force: 130 daN / blocking force: 200 daN
• Identification by sticker.
