Height limiter, rotating, height 2500 - 3500 mm, width 5000 - 7000 mm, pure white.

Estimated delivery: 36 days

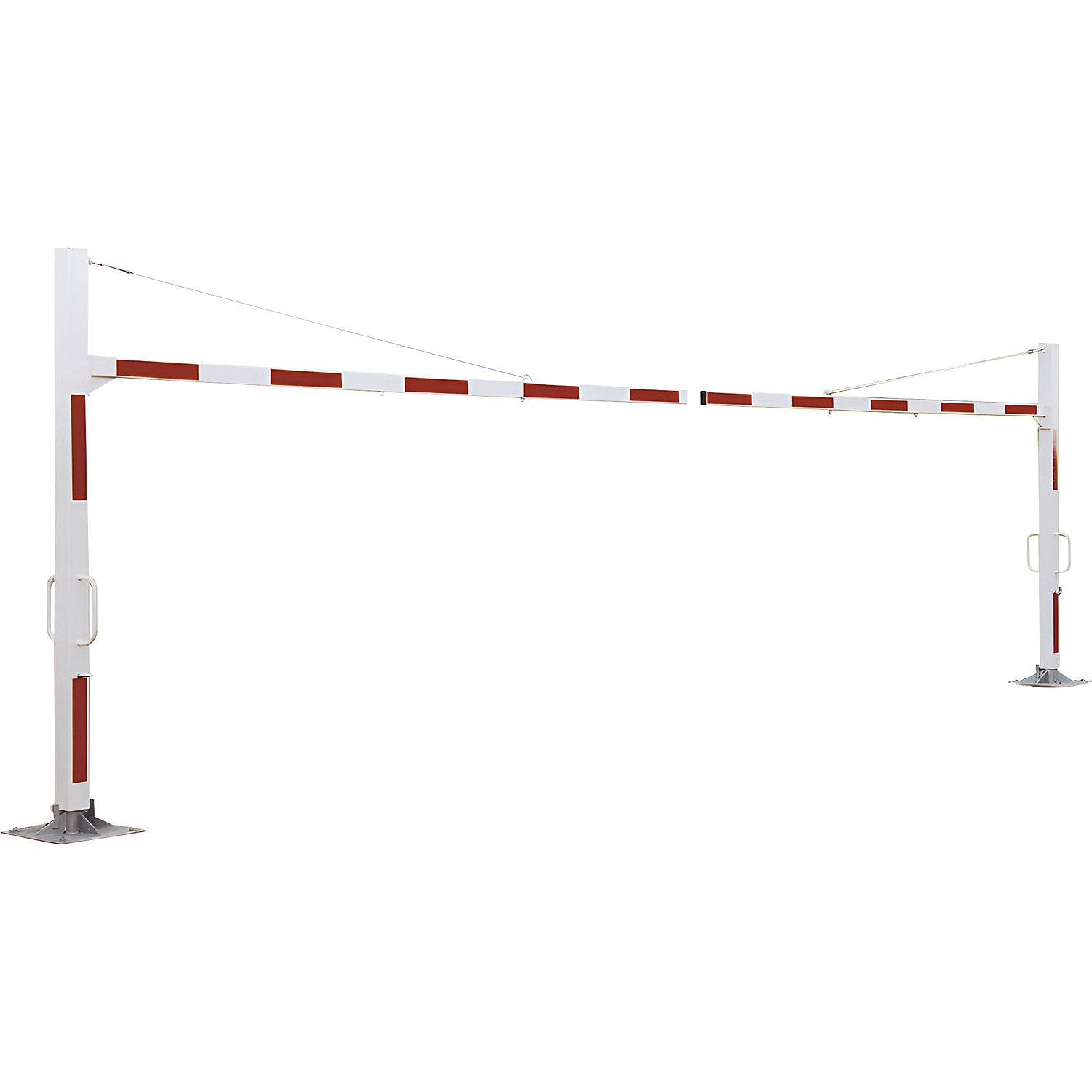

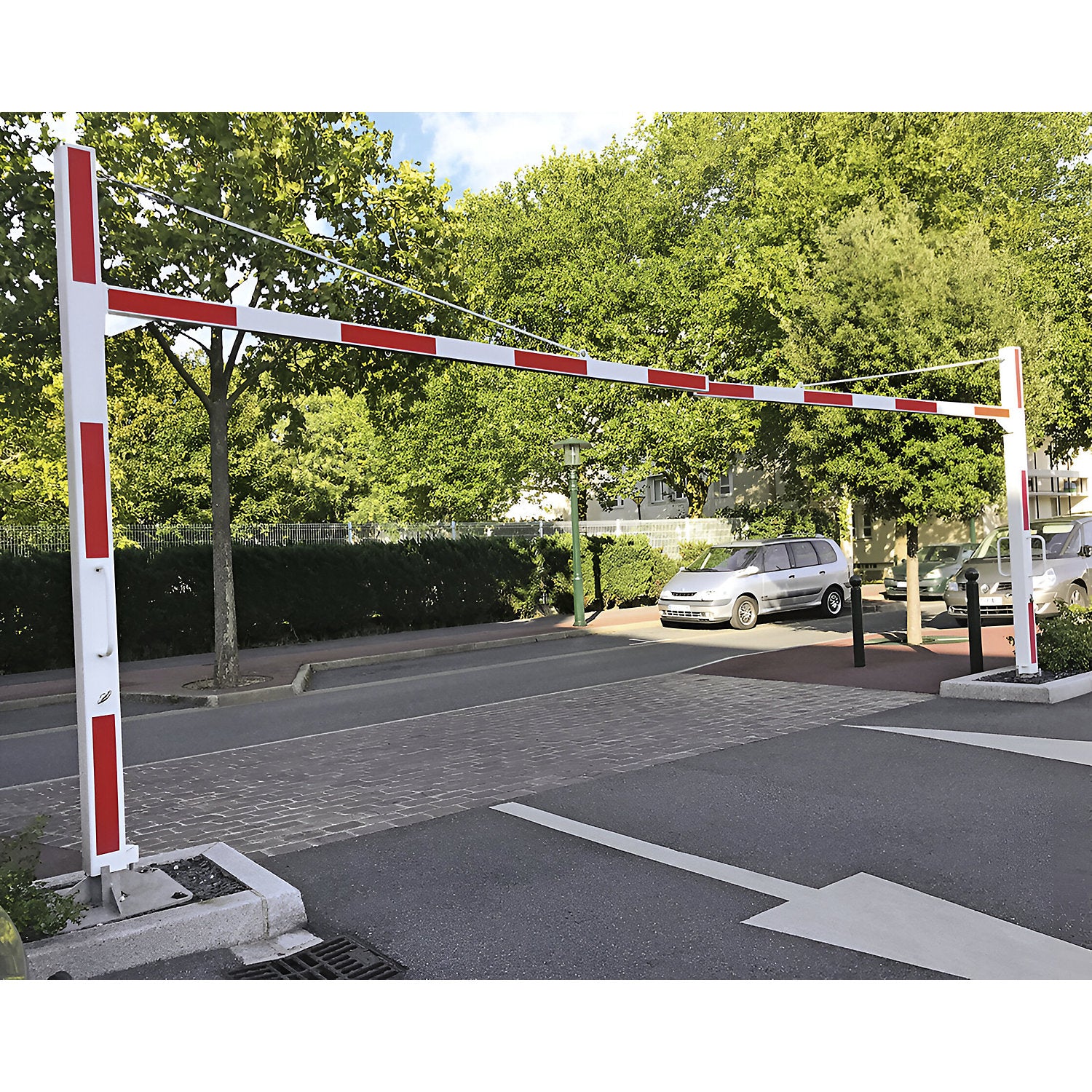

Height limiter, rotating, height 2500 - 3500 mm, width 5000 - 7000 mm, pure white

• Supplied = flat pack
• Height above ground = 3500 mm
• Width = 7000 mm
• Barrier clearance length = 7000 mm
• Material = steel, hot galvanised
• Colour = pure white RAL 9010, hot dip galvanised
• Type of mounting = base plate
• Lock type = socket pin and padlock provided
• Weight = 309 kg
• Product type = height limiters
• Customs tariff number = 73269098
• Country of origin = FRA
• Gross weight = 342 kg
• Weight = 309 kg
• Sustainability = CO 2 footprint calculated
• Adaptable height and width for maximum flexibility
• With turning handles and cylinder lock for easy opening and closing
• Height limiter closed using socket pin
• The rotating universal height limiter exhibits technical features that make it a highly effective and durable item of equipment
• Its clearance height can be varied from 1.9 to 4 m, while its width can be adjusted from 5 to 12 m
• The structure of the portal is made of tubular steel with dimensions of 120 x 120 mm and 80 x 80 mm, and it can be equipped with single or double struts for greater stability
• The portal is closed by means of continuous bolts that can be locked using the padlock included, or optionally with a triangular utility lock (11 mm)
• The surface of the portal is painted white on zinc plated steel, with red retroreflective strips for better visibility
• Other colours are also available upon request
• The universal rotating height limiter is easy to install using the assembly kit, which consists of base plates with cross shaped fastening plates
• In addition, lock nuts under the plates can be used to ensure precise and stable alignment.
