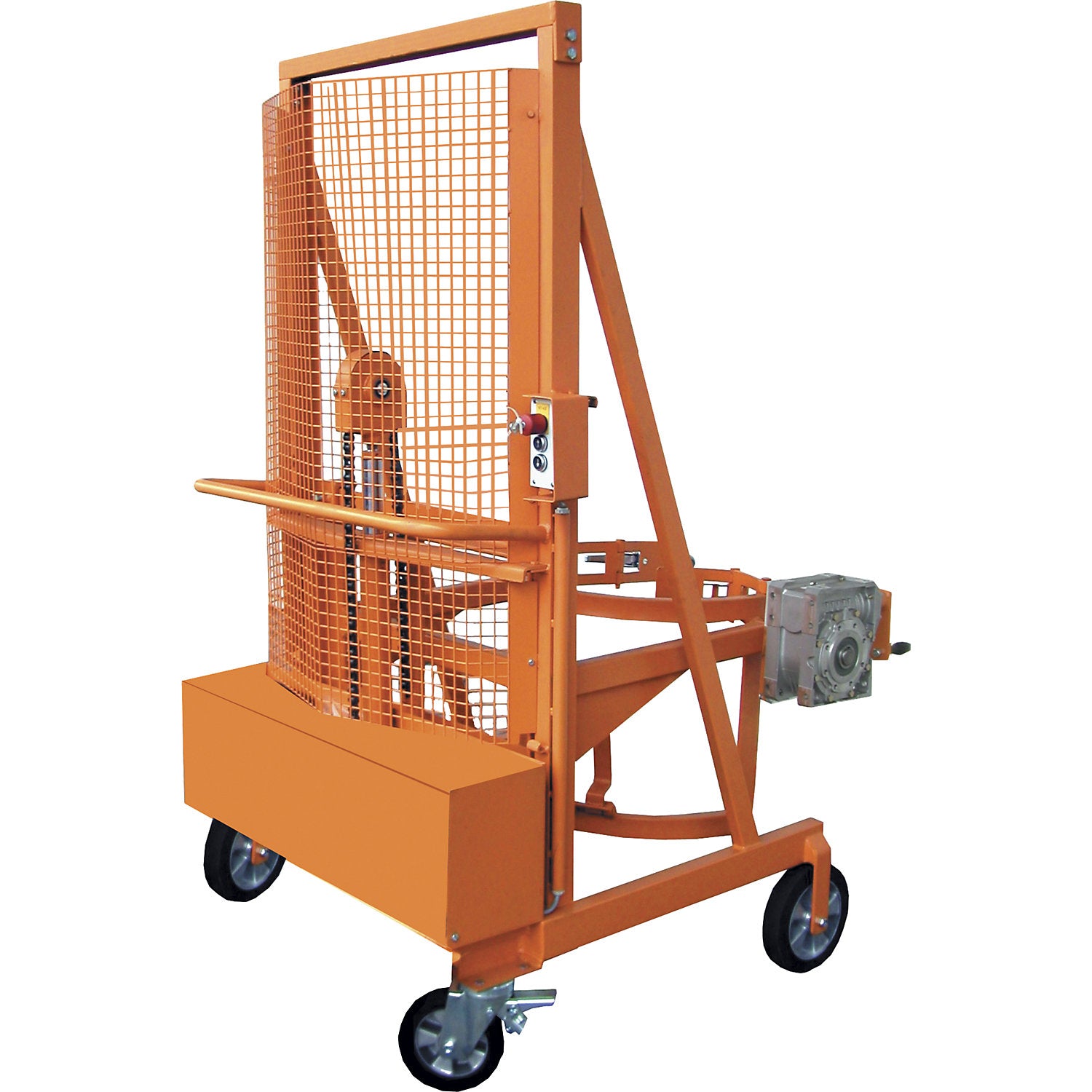

Liftomat L/E drum lifting and tilting unit, lifting height 1100 mm, max. load 350 kg, yellow orange.

Estimated delivery: 57 days

Liftomat L/E drum lifting and tilting unit, lifting height 1100 mm, max. load 350 kg, yellow orange

• Supplied = assembled
• Max. load = 350 kg
• Lifting height = 1100 mm
• For drum capacities = 110 - 220 litres
• Material = steel
• Height = 1915 mm
• Slope = 270°
• Wheel fittings = 2 swivel castors with wheel stop, 2 fixed castors
• Wheel type = solid rubber
• Colour = yellow orange RAL 2000
• Length = 1390 mm
• Width = 1120 mm
• Model = mobile
• Finish = painted
• Swivel castor diameter = 175 mm
• Fork roller diameter = 200 mm
• Product type = drum grips, drum tippers
• Customs tariff number = 84279000
• Country of origin = ---
• Gross weight = 220 kg
• Weight = 220 kg
• Sustainability = Recyclable
• Electro-hydraulic lifting and lowering of drums
• Safe drum holder due to clamp lock at the front and threaded bracket on top
• Drums tilted by using a hand crank on a self-locking screw gear
• Metered and precise drum emptying
• Mobile use due to castor set

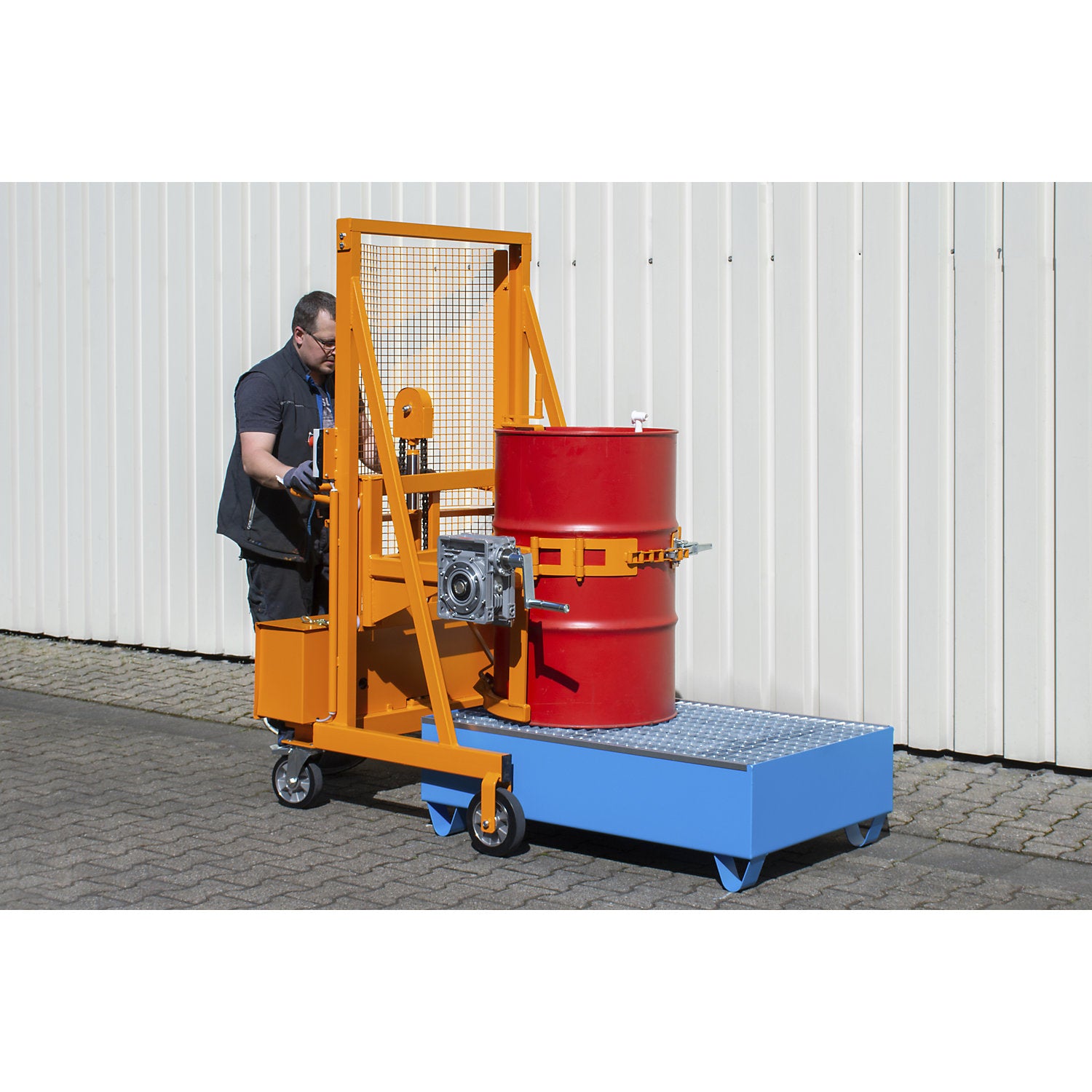

• Drum lifting and tilting unit Liftomat L/E - electro-hydraulic drum handling for precise emptying processes The drum lifting and tilting unit Liftomat L/E enables convenient and safe drum handling from pick-up to controlled emptying
• The electro-hydraulic lifting function facilitates the raising and lowering of drums and supports efficient workflows in daily drum logistics
• As a powerful transport device, the Liftomat L/E combines safe lifting, controlled tilting and flexible mobility in a single system
• The drum is reliably picked up via a front clamp lock and an upper spindle holder
• This ensures that drums are securely fixed during the entire handling process
• The electro-hydraulic drum handling enables a discharge height of up to 1300 mm
• This allows drums to be precisely positioned to fill containers, machines or production plants

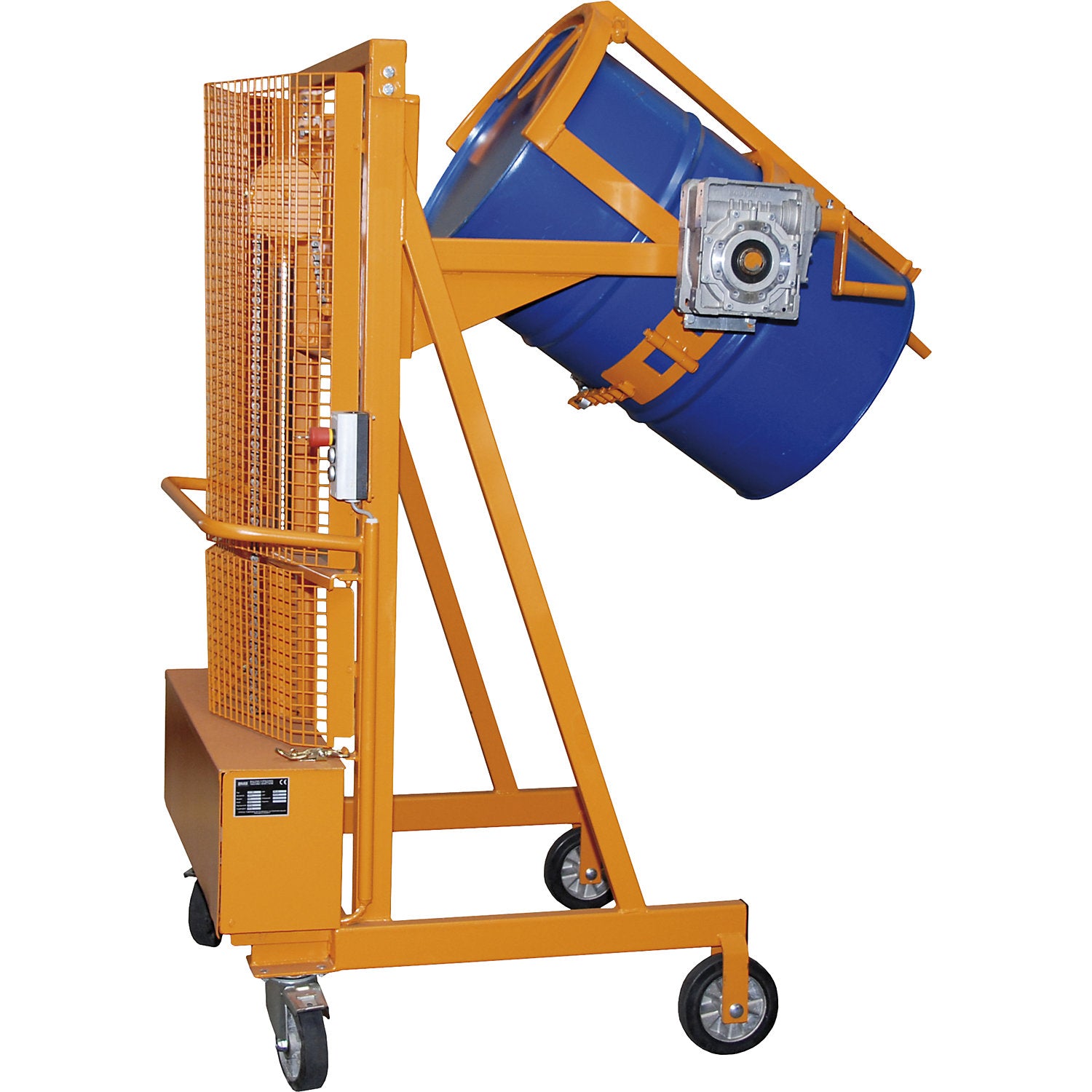

• Tilting is carried out via a hand crank with a self-locking worm gear
• This allows controlled movement and precise metering when emptying the drum contents
• Thanks to the integrated wheel set, the transport device is mobile and can be used flexibly at different workstations
• The drum handling system is suitable for steel tight-head drums, steel lid drums, rolling hoop drums as well as plastic L-ring, plastic double L-ring and plastic lid drums with a capacity of 110 to 220 litres
• Particularly during recurring emptying processes, the transport device supports safe, ergonomic and precise material supply.
