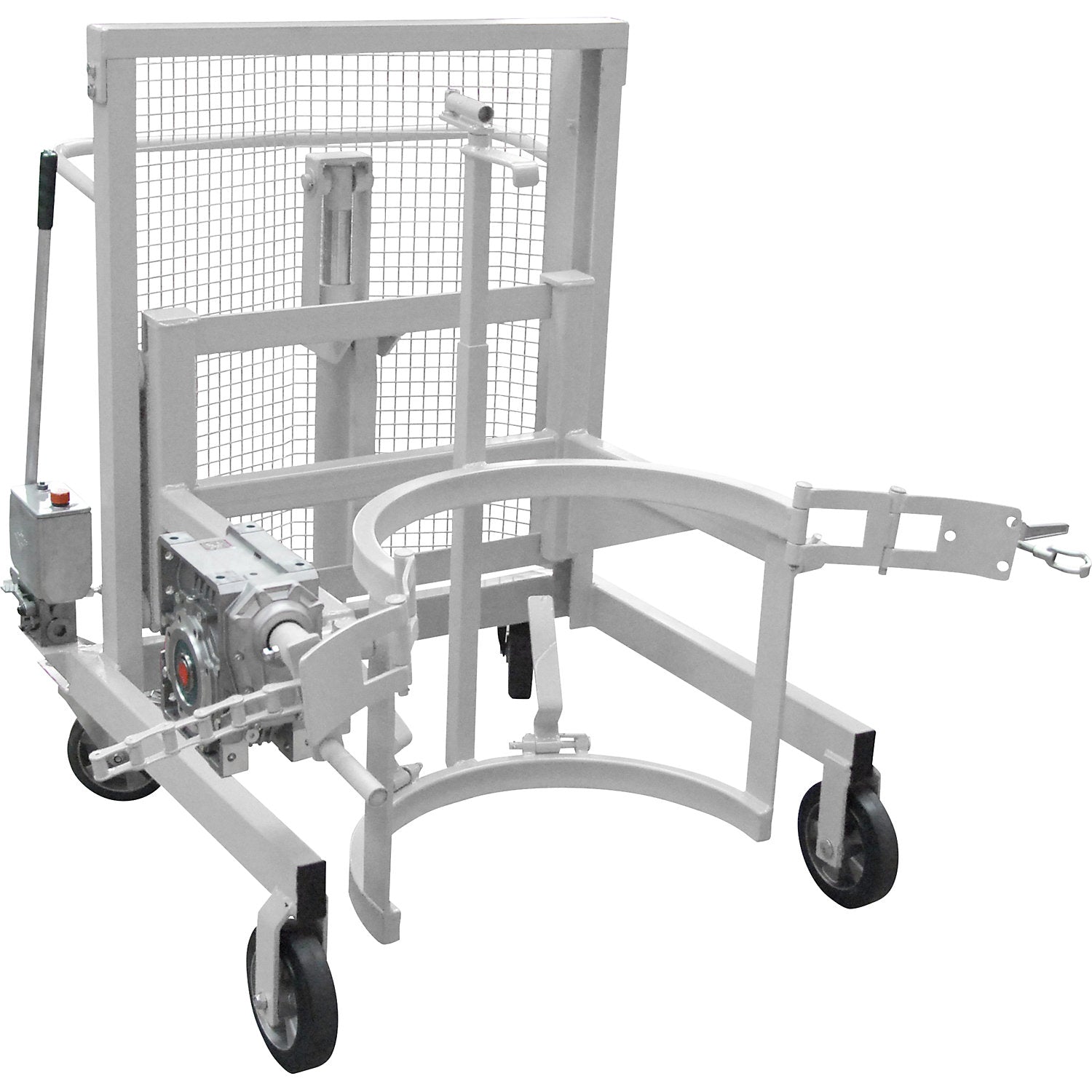

Liftomat L/M drum lifting and tilting unit, lifting height 450 mm, max. load 350 kg, zinc plated.

Estimated delivery: 74 days

Liftomat L/M drum lifting and tilting unit, lifting height 450 mm, max. load 350 kg, zinc plated

• Supplied = assembled
• Max. load = 350 kg
• Lifting height = 450 mm
• For drum capacities = 110 - 220 litres
• Material = steel
• Height = 1230 mm
• Slope = 270°
• Wheel fittings = 2 swivel castors with wheel stop, 2 fixed castors
• Wheel type = solid rubber
• Colour = zinc plated
• Length = 1390 mm
• Width = 1120 mm
• Model = mobile
• Finish = hot dip galvanised
• Swivel castor diameter = 175 mm
• Fork roller diameter = 200 mm
• Product type = drum grips
• Customs tariff number = 84279000
• Country of origin = ---
• Gross weight = 168 kg
• Weight = 168 kg
• Sustainability = Recyclable
• Drums lifted by a hydraulic hand pump, 18 mm per stroke
• Safe drum holder due to clamp lock at the front and threaded bracket on top
• Drums tilted by using a hand crank on a self-locking screw gear
• Metered and precise drum emptying
• Mobile use due to castor set
• Hydraulic drum lifter for the metered emptying of steel bung drums, steel lidded drums, rolling hoop drums, plastic L-ring drums, plastic double L-ring drums and plastic lidded drums with a capacity of 110 to 220 l
• Draining height 600 mm.
