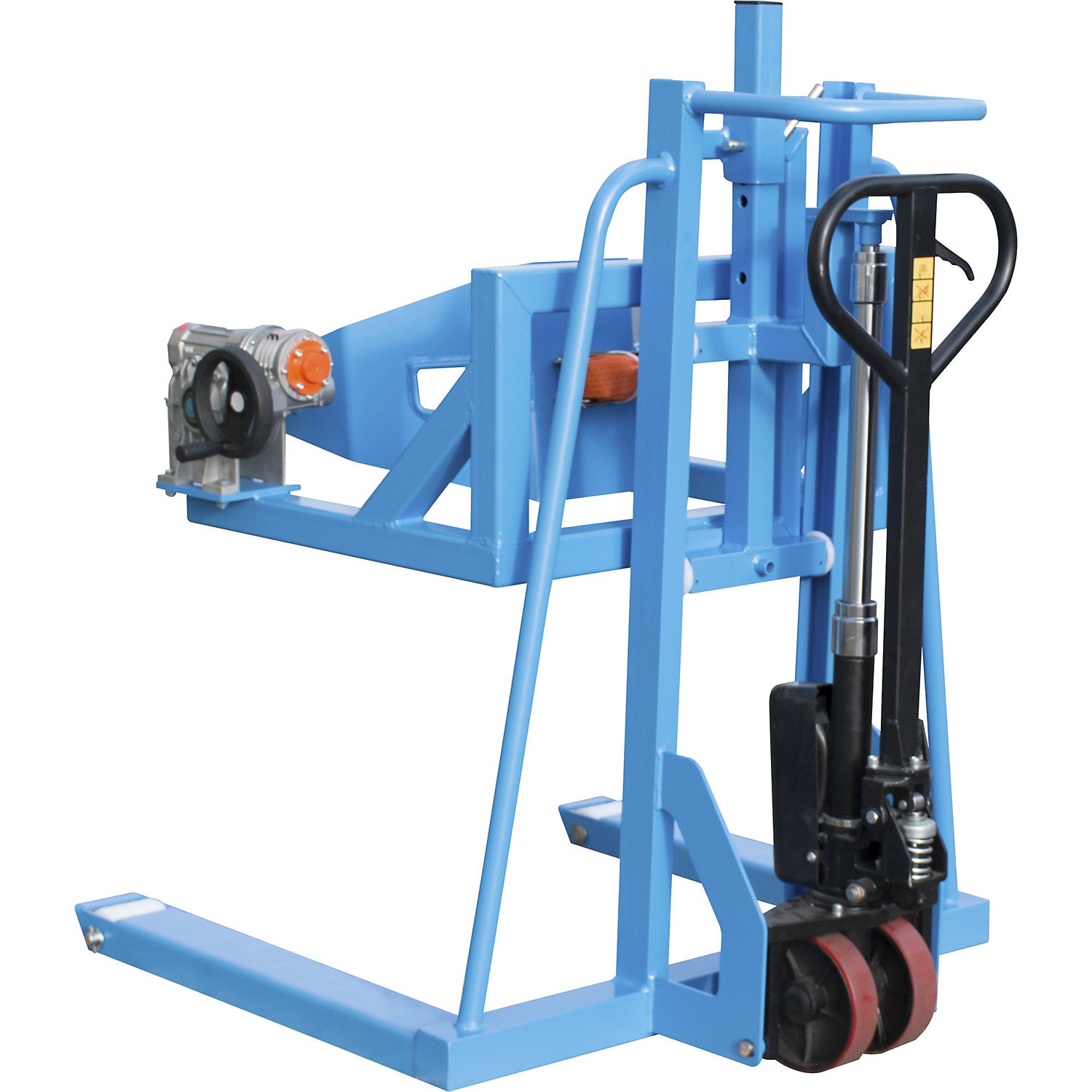

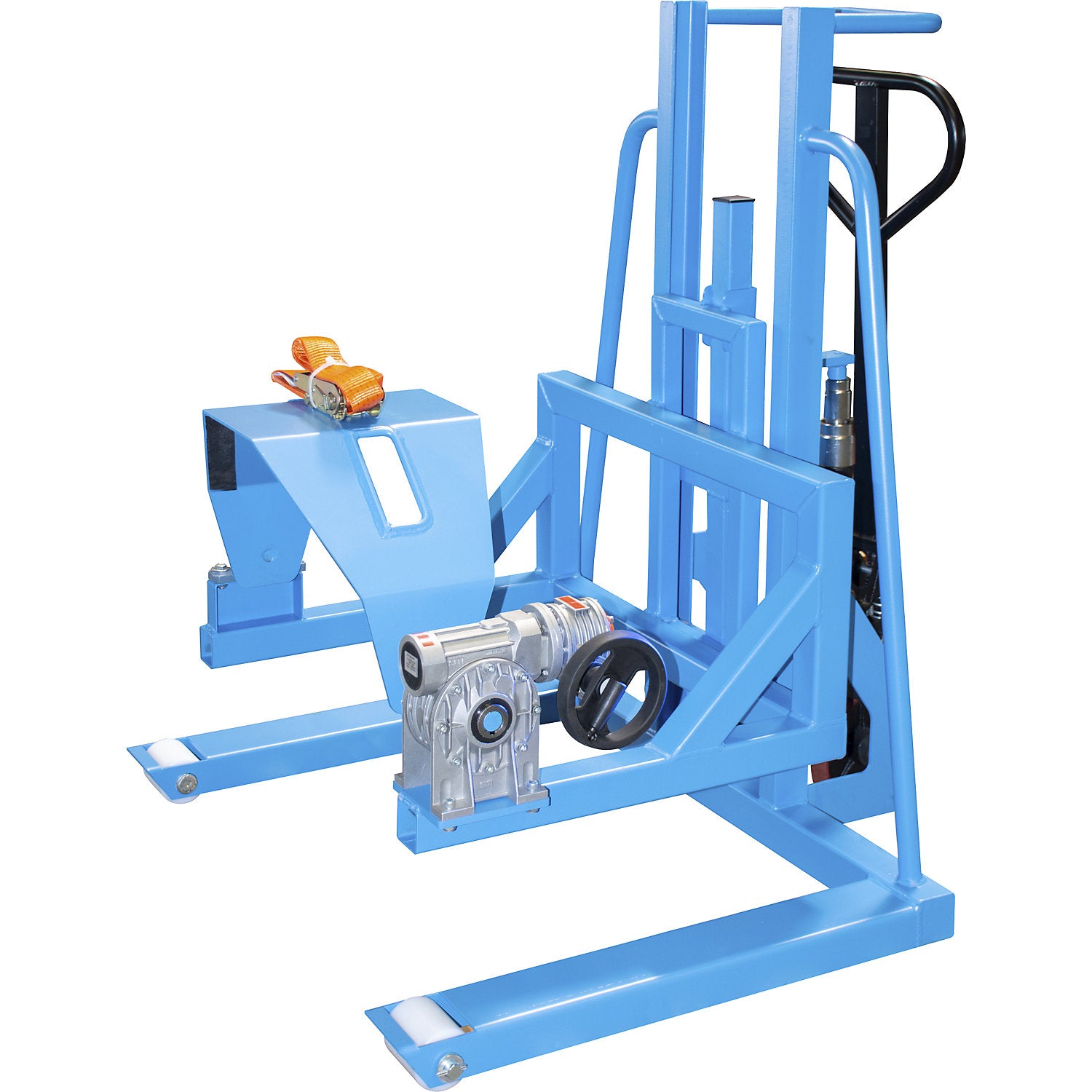

FHR 600 F drum mover, with prism and tension strap, lifting height 600 mm, light blue.

Estimated delivery: 54 days

FHR 600 F drum mover, with prism and tension strap, lifting height 600 mm, light blue

• Supplied = assembled
• Max. load = 300 kg
• Lifting height = 600 mm
• Material = steel
• Height = 1330 mm
• Colour = light blue RAL 5012
• Length = 1200 mm
• Width = 1125 mm
• Model = with prism and tension strap
• Finish = painted
• For container size = 60 - 220 l
• For drum length from - to = 450 - 990 mm
• Product type = drum grips, drum tippers
• Customs tariff number = 84279000
• Country of origin = ---
• Gross weight = 231 kg
• Weight = 231 kg
• Sustainability = Recyclable
• Suitable for picking up and transporting drums
• With robust drawbar and pump function
• Prism with tension strap and twin screw gear with hand crank
• For fitting to drum sumps, hazardous material storage depots, drum stacking pallets, etc. 360° rotation
• The FHR 600 F drum lifter-tilter combines safe drum handling with high flexibility when picking up, transporting and positioning drums
• The robust construction and the generous turning range of 360° facilitate the daily handling of a wide variety of drum types in warehouses, production and hazardous substance areas
• As a reliable transport device, the drum lifter-tilter enables the picking up and transport of steel tight-head drums, steel open-head drums, rolling hoop drums, as well as plastic L-ring drums and plastic double L-ring drums with a capacity of 60 to 220 litres
• The stable drawbar ensures safe guidance, while the integrated pump function simplifies the lifting of the drums
• For precise drum handling, the device is equipped with a prism including a tension belt
• The double worm gear with hand crank enables controlled tilting and turning of the drums
• This allows contents to be dispensed in a metered way or drums to be precisely aligned
• This reduces the effort required and supports safe workflows
• The transport device is particularly suitable for loading sump trays, hazardous substance depots, drum stacking pallets and comparable areas of application
• Thanks to the infinitely variable turning range, drums can be specifically positioned, even in confined working environments
• The robust drum handling system supports efficient processes during internal transport and safe drum handling.
