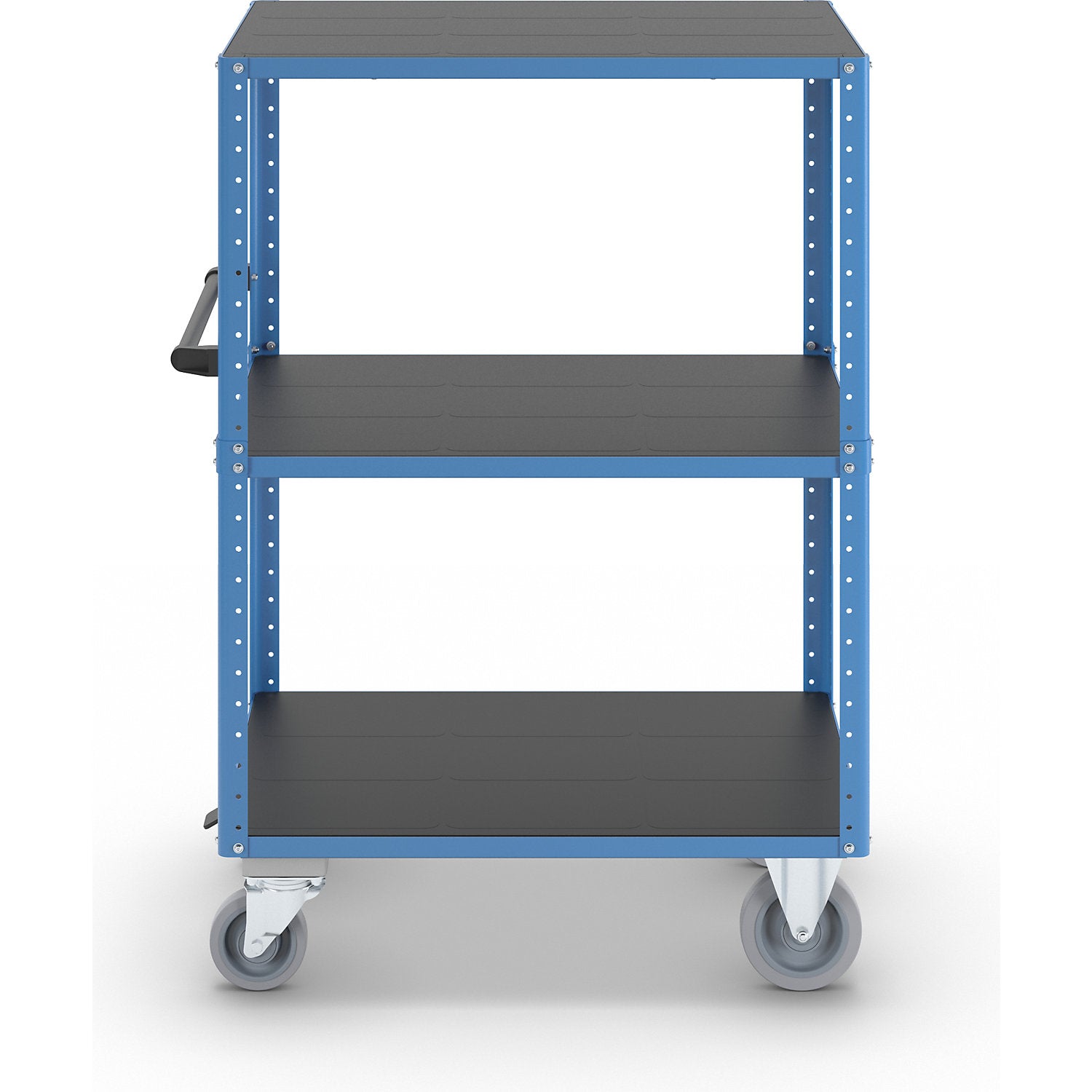

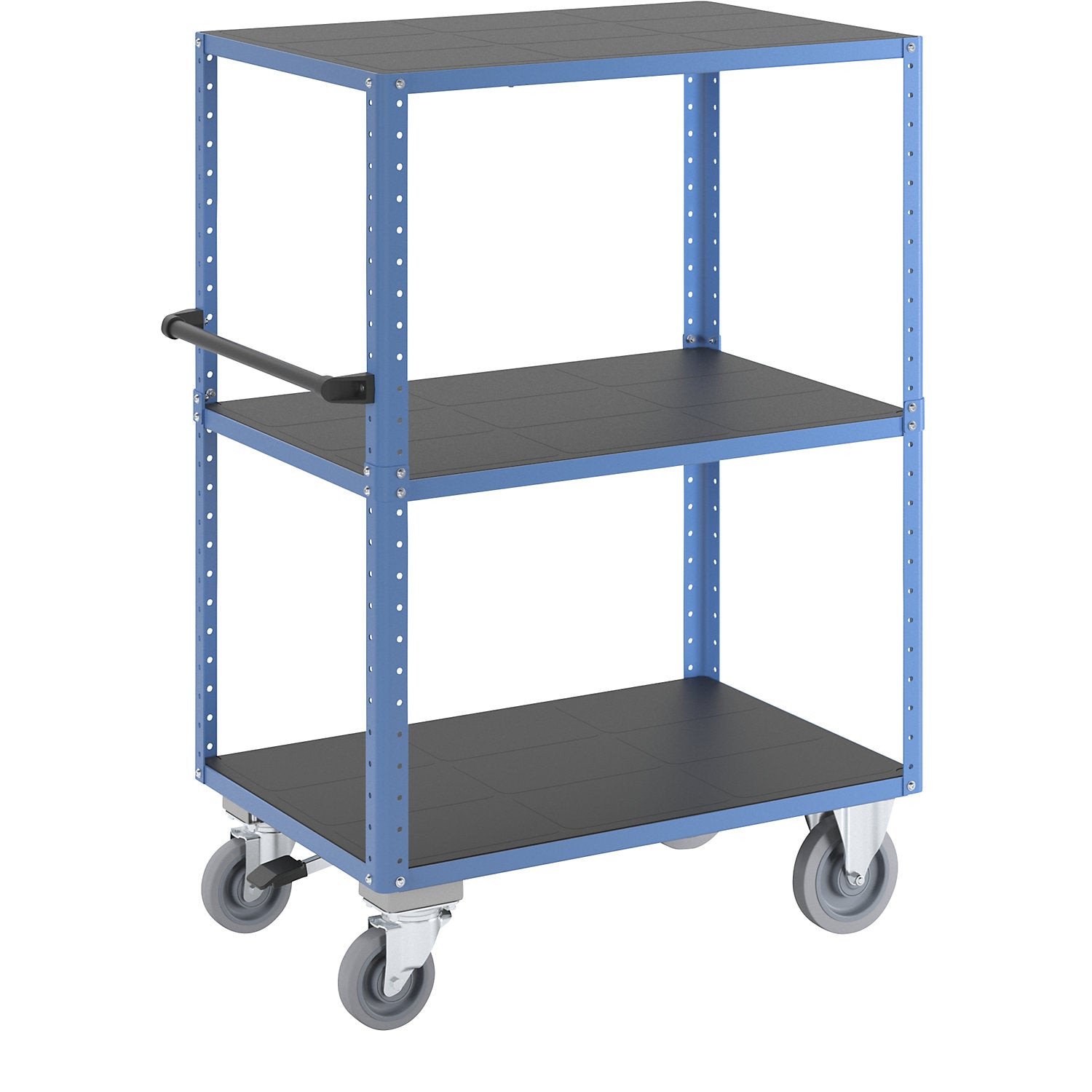

CustomLine shelf truck, open on 4 sides, 3 levels, with centre stop, light blue RAL 5012.

Estimated delivery: 31 days

CustomLine shelf truck, open on 4 sides, 3 levels, with centre stop, light blue RAL 5012

• Supplied = flat pack
• Number of levels = 3 pcs
• Frame colour = light blue RAL 5012
• Type of shelf trolley = 4 sided open
• Wheel fittings = 2 swivel castors with central stop, 2 fixed castors
• Length = 1050 mm
• Width = 700 mm
• Height = 1540 mm
• Max. load per shelf = 500 kg
• Shelf material = plastic
• Max. load = 500 kg
• Wheel diameter = 160 / 200 mm
• Wheel type = non-marking solid elastic
• Adjustment pattern for internal shelves = 50 mm
• Loading height = 280 mm
• Wheel bearing = precision ball bearing
• Platform width = 700 mm
• Platform length = 1050 mm
• Frame material = steel, powder coated
• Platform colour = black
• Platform material = recycled plastic
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 77.4 kg
• Weight = 74.1 kg
• Sustainability = CO 2 footprint calculated
• Central foot pedal for simultaneous application or release of the brakes
• Non-marking, low noise travel with fully elastic castors
• Can be individually customised and flexible to upgrade with accessories
• Modular system with simple configuration for varied workflows
• Anti-slip shelves with plastic panel in an angle frame
• Little time required for ergonomic adjustment of the working and handle height
• Can be converted to electric operation using e-module
• Accessories can be reordered individually
• The eurokraft pro shelf truck is a perfect solution that caters to the individual requirements of industry and manufacturing companies
• This innovative product, which comes from our versatile CustomLine product range, offers you flexibility and modularity due to different combination options and can be upgraded with accessories
• The shelf truck is a reliable item of equipment for your daily work, which has the flexibility to adapt to your needs and helps to increase efficiency in your company

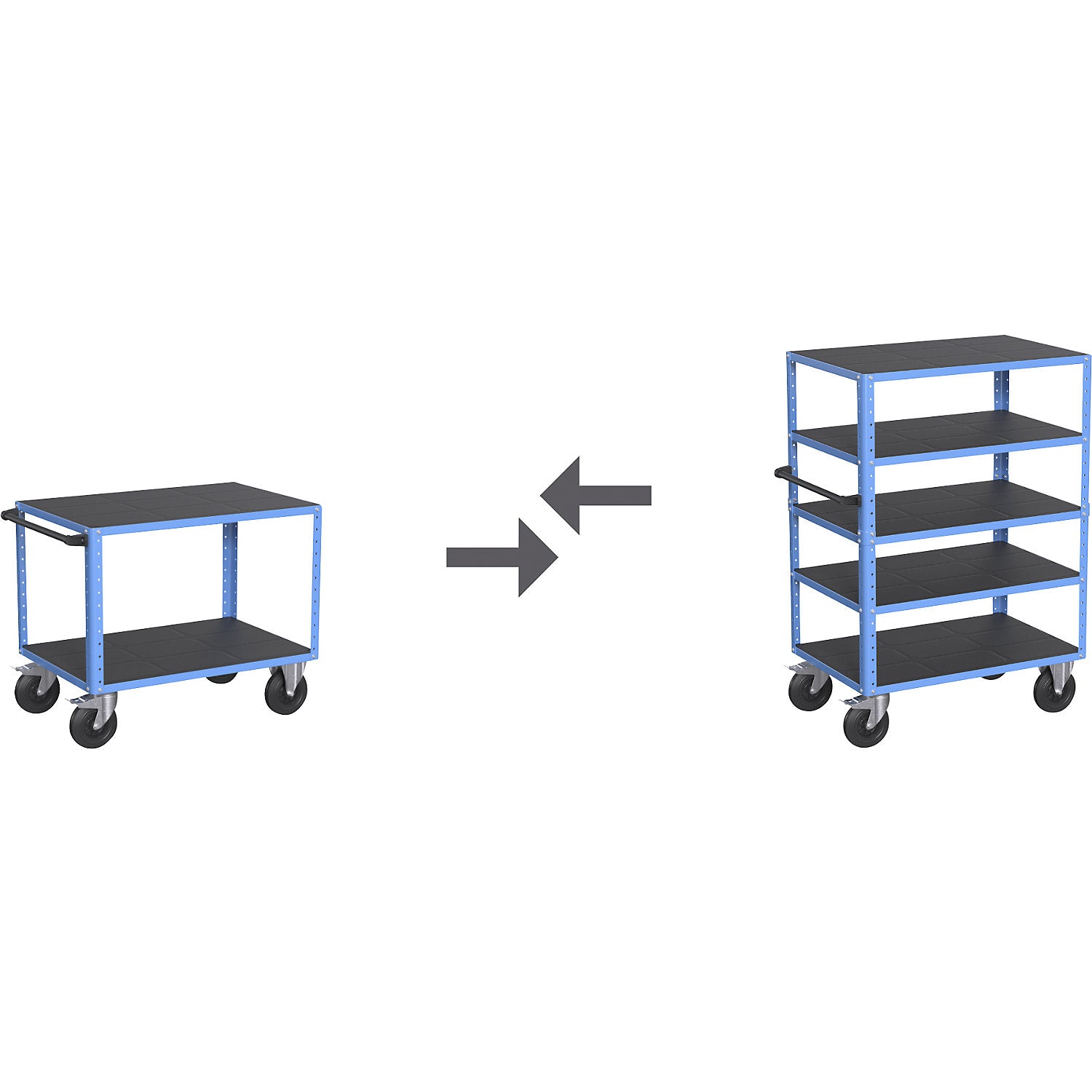

• The intelligent modular principle allows you to alter the shelf truck at any time to cater to your individual requirements
• Choose from our preconfigured products with three, four or five shelves
• Or configure your own unique product using the accessories
• The number of shelves can be increased by adding additional shelves
• Plastic shelves hold the components securely to ensure everything stays in place
• You can also convert your shelf truck into an assembly trolley for even greater versatility
• The trolley can be customised due to its modular design
• Using the perforated profiles, you can easily secure the shelves at different heights, which will ensure they are perfectly suited to your components
• Modify the height of the trolley to cater to your individual needs by combining corner posts of different lengths
• Additional shelves and corner posts with perforated profiles are available separately as accessories
• The versatile CustomLine system is extremely multifaceted and adapts perfectly to workflows at your company
• It will keep you prepared should processes or orders change in your company, and ensure that you can react quickly
• The design of the trolley can accommodate changing component sizes, locations, uses and different employees, or can be retrofitted accordingly by purchasing accessories
• The three types of tyres that are available, these being solid rubber wheels, elastic wheels or the centre stop with elastic wheels, ensure that it is very smooth running
• The modern design in light blue and charcoal is stylish and provides additional options for use and colour coding
• The push handle is ergonomic and adjusts to different heights due to the hole matrix
• Because it can be converted to electric operation using the e-module, it is quick and easy to optimise or retrofit the assembly and shelf truck with an electric drive
• Promote ergonomic work processes in your company for the benefit of your employees, as the e-module makes it easy and efficient to transport loads of up to 500 kg
• The ergonomic handle of the e-module ensures it is easy to handle and to adapt to different body sizes
• A ladder module is also available as an additional accessory, which is easy to secure to the shelf truck to turn loading and unloading goods easy
• Easy and fast customisation to company processes makes the CustomLine platform trolley a sustainable and cost efficient alternative to buying an additional new product
• This versatility enables optimum utilisation of resources
• Should spare parts be needed, they are available at all times
• The stability and robustness of the shelf truck ensure transport of components and heavy objects is safe

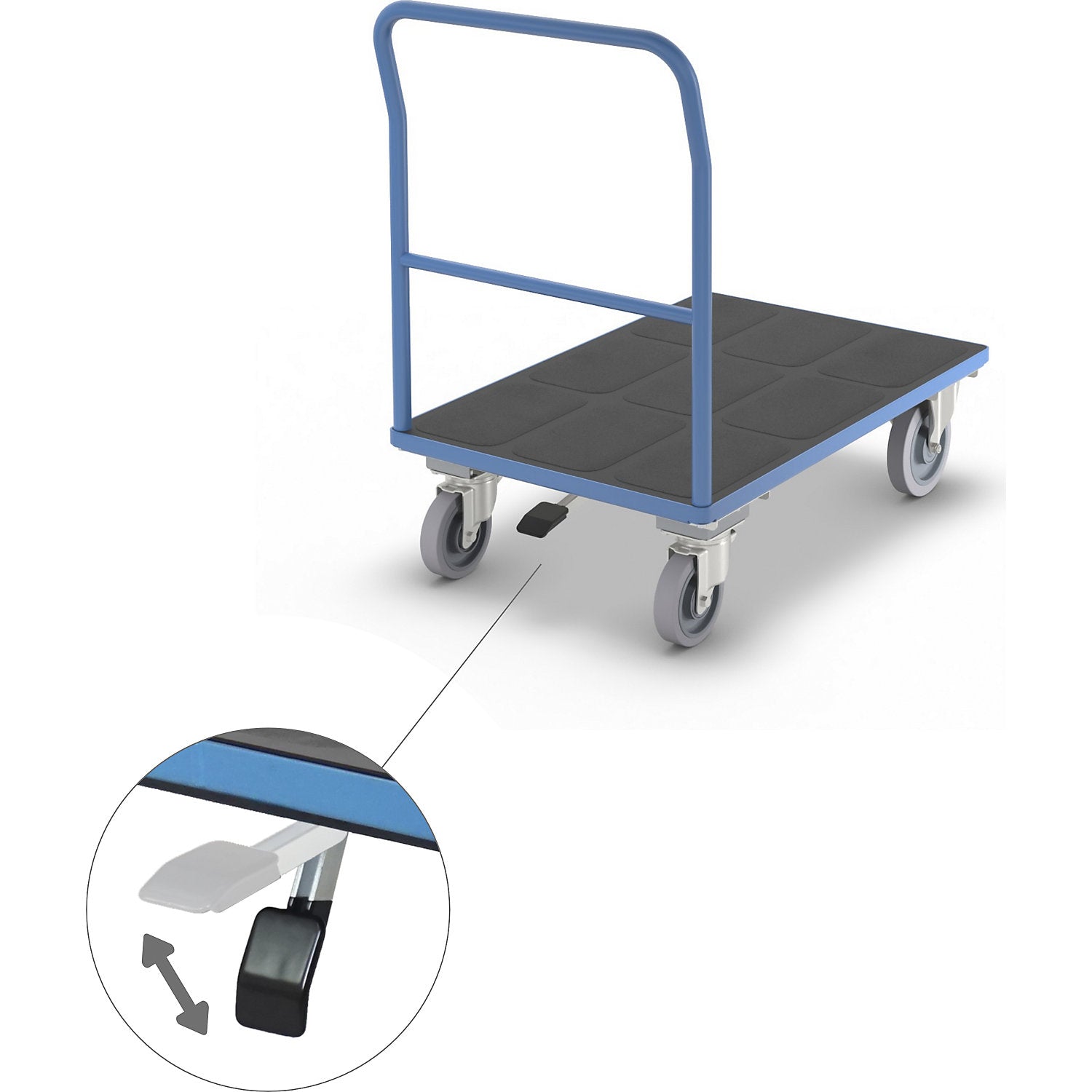

• Wheels: The centre stop allows intuitive and fast operation of the brakes using a central foot pedal
• Both castors lock or release simultaneously with just one motion, saving time and making work easier
• The central brake system combines functionality and user friendliness
• Instead of operating two brakes individually, one central activation is sufficient
• The pedal is easy to press down with the foot to lock the castors and release them again with a simple upward motion of the foot
• The high quality construction with fully elastic castors ensures a non-marking, quiet ride with minimal rolling resistance
• The long lasting precision ball bearings and hardwearing castors ensure reliability and are also suitable for sensitive floors
• Consisting of two fixed castors and two swivel castors with a centre stop, the system is also available as an accessory and is easy to retrofit
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
