Hook-in sump tray, with PE insert and grate, LxWxH 3265 x 1265 x 115 mm, painted orange.

Estimated delivery: 59 days

Hook-in sump tray, with PE insert and grate, LxWxH 3265 x 1265 x 115 mm, painted orange

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 175 l
• Length = 3265 mm
• Width = 1265 mm
• Height = 115 mm
• Material = sheet steel, polyethylene
• Finish = painted
• Colour = yellow orange RAL 2000
• Max. load = 1000 kg/m2 kg
• Test symbol = manufacturer's declaration of conformity in accordance with German construction regulation list A, part 1, DIBt, Berlin
• Material thickness = 3 mm
• For media = flammable liquids, flammable and water hazardous liquids, acids, alkalis, corrosive media
• Hazard class = for flammable liquids in GHS categories 1 - 3, for water hazardous liquids in GHS categories 1 - 4 and for corrosive liquids in GHS category 1
• Customs tariff number = 73101000
• Country of origin = DEU
• Gross weight = 238 kg
• Weight = 238 kg
• Sustainability = Recyclable, CO 2 footprint calculated
• Convert existing shelving systems into regulation compliant hazardous goods storage shelving
• For the storage of aggressive media
• Easy to place on the support profiles of shelving systems
• Max. load 1000 kg/m² (with evenly distributed load)
• You can quickly and economically convert existing shelving systems into regulation compliant hazardous goods storage with these shelf sump trays

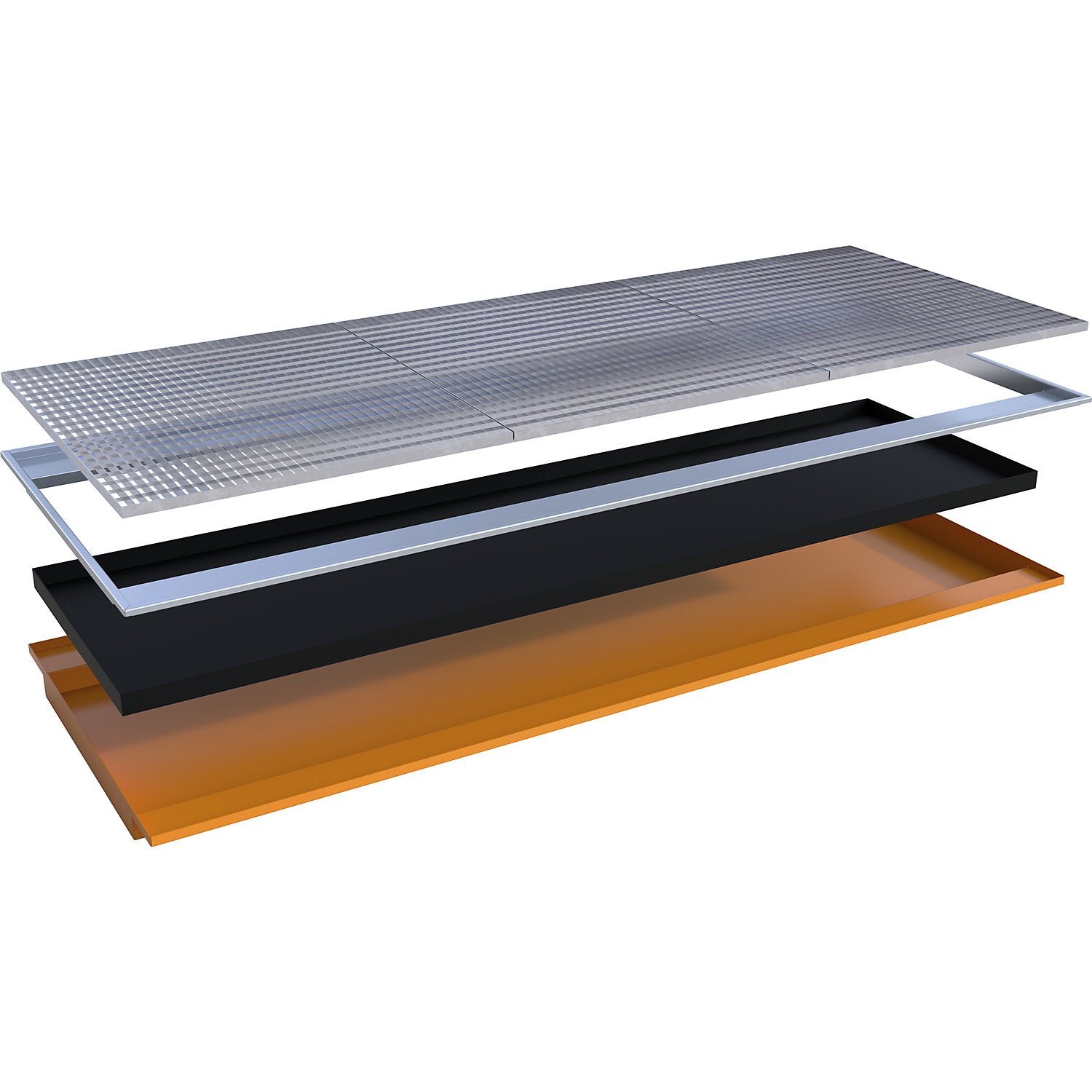

• Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material
• With zinc plated steel clamp frame for fixing the plastic insert in place
• This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene
• Certified with manufacturer's declaration of conformity in accordance with StawaR
• Approved for flammable liquids in GHS categories 1 - 3
• Approved for water hazardous liquids in GHS categories 1 - 4
• Approved for corrosive liquids in GHS category 1
• For placement on the cross beams or suspension in the shelf unit
• Distance between cross beams 915 mm.
