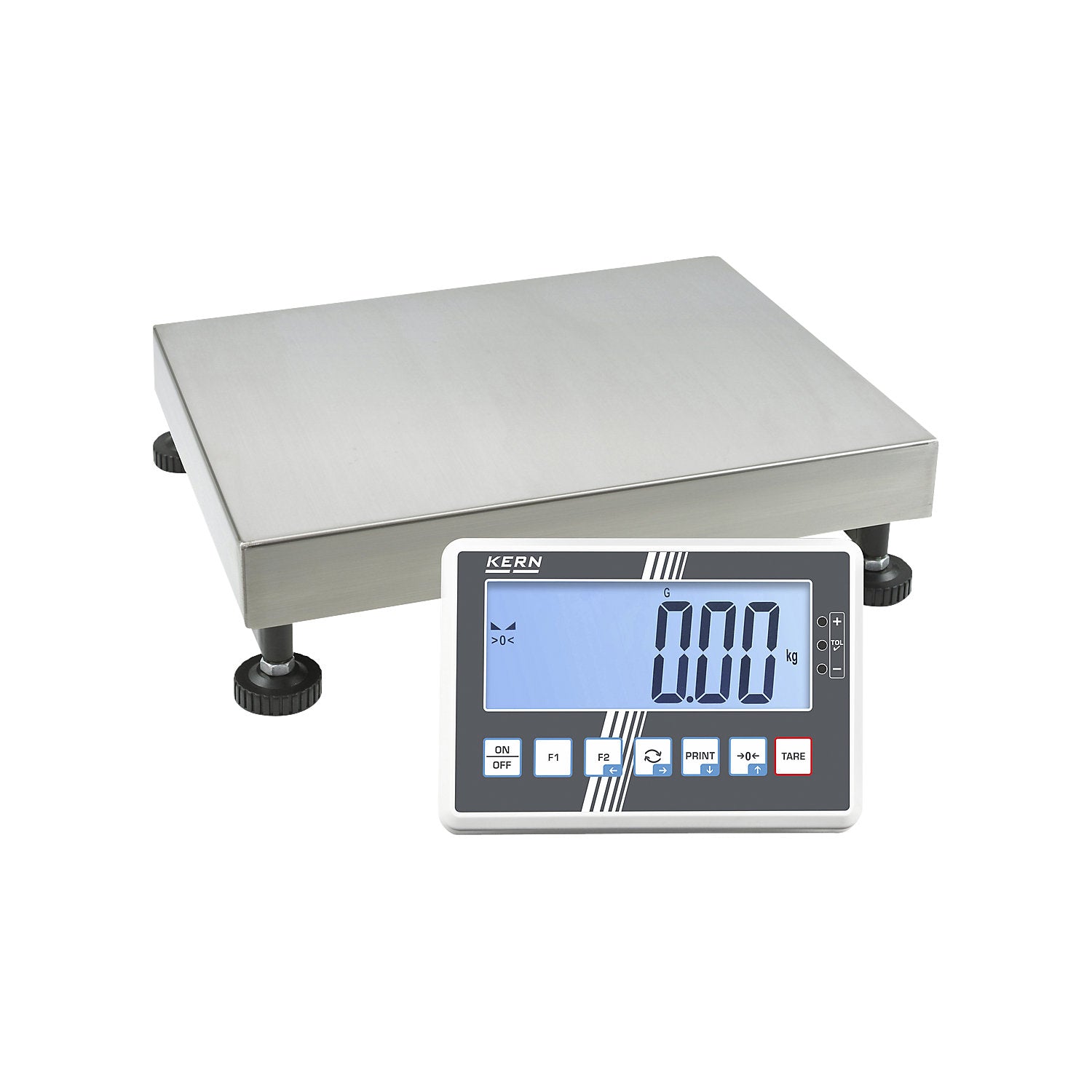

IoT-Line platform scales, weighing platform WxD 500 x 400 mm, max. weighing range 60 kg.

Estimated delivery: 34 days

IoT-Line platform scales, weighing platform WxD 500 x 400 mm, max. weighing range 60 kg

• Supplied = assembled
• Max. weighing range = 60 kg
• Min. weighing range = 0 kg
• Scale division = 2 g
• Weighing platform dimensions = 500x400x127 mm
• Material of weighing platform = steel, powder coated
• Material = plastic
• Height = 127 mm
• Width = 500 mm
• Depth = 400 mm
• Figures height = 48 mm
• Lowest item weight for item counting = 20 g
• Function = item counting, memory function, total
• Interfaces = universal
• Power supply = multiple power supply unit
• Colour = grey
• Product type = platform scales
• Customs tariff number = 84238220
• Country of origin = CHN
• Gross weight = 12.54 kg
• Weight = 9.96 kg
• Industry 4.0 compatible - exchange of data and control commands using 3 interfaces
• Real time clock: precise time stamp for logged weighing results
• Remote control: query and command using computer or CRM/ERP systems
• Quick and easy battery change
• Load cell ingress protection IP65
• Optional alibi memory for electronic evaluation/archiving of weighing processes subject to calibration regulations
• The IFC are robust industrial scales for daily use in harsh industrial environments
• The consistent design, menu structure, key functions and interface protocols mean that operation is standardised across all products
• The scales are Industry 4.0 compatible and enable the exchange of data and control commands using KERN Universal Port (KUP)
• A KUP extension box with three parallel interfaces is also available: RS-232, USB, Ethernet, WiFi and Bluetooth
• The flexible, adjustable interfaces provide numerous usage options
• For example, you can continuously send data to a PC for process documentation using interface 1 (WiFi), print stable weighing values using interface 2 (RS-232) and control a device when the target weight is reached using interface 3 (analogue module)
• The real time clock included as standard ensures precise time stamps for the logged weighing results and enables you to continue working with the correct time even after power failures
• The platform consists of a stainless steel weighing plate, a painted steel base structure and a silicone coated aluminium load cell with IP65 dust and splash protection
• It is supplied complete with a table base with wall bracket for the evaluation unit, and a protective cover
• Units: kg, g, lb, ffa, PCS, %
• Linearity ±0.0015 kg
• Cable length of evaluation unit: 3 m
• Calibration must be included in your order (accessory/extra cost)
• Calibration cannot be done at a later stage.
