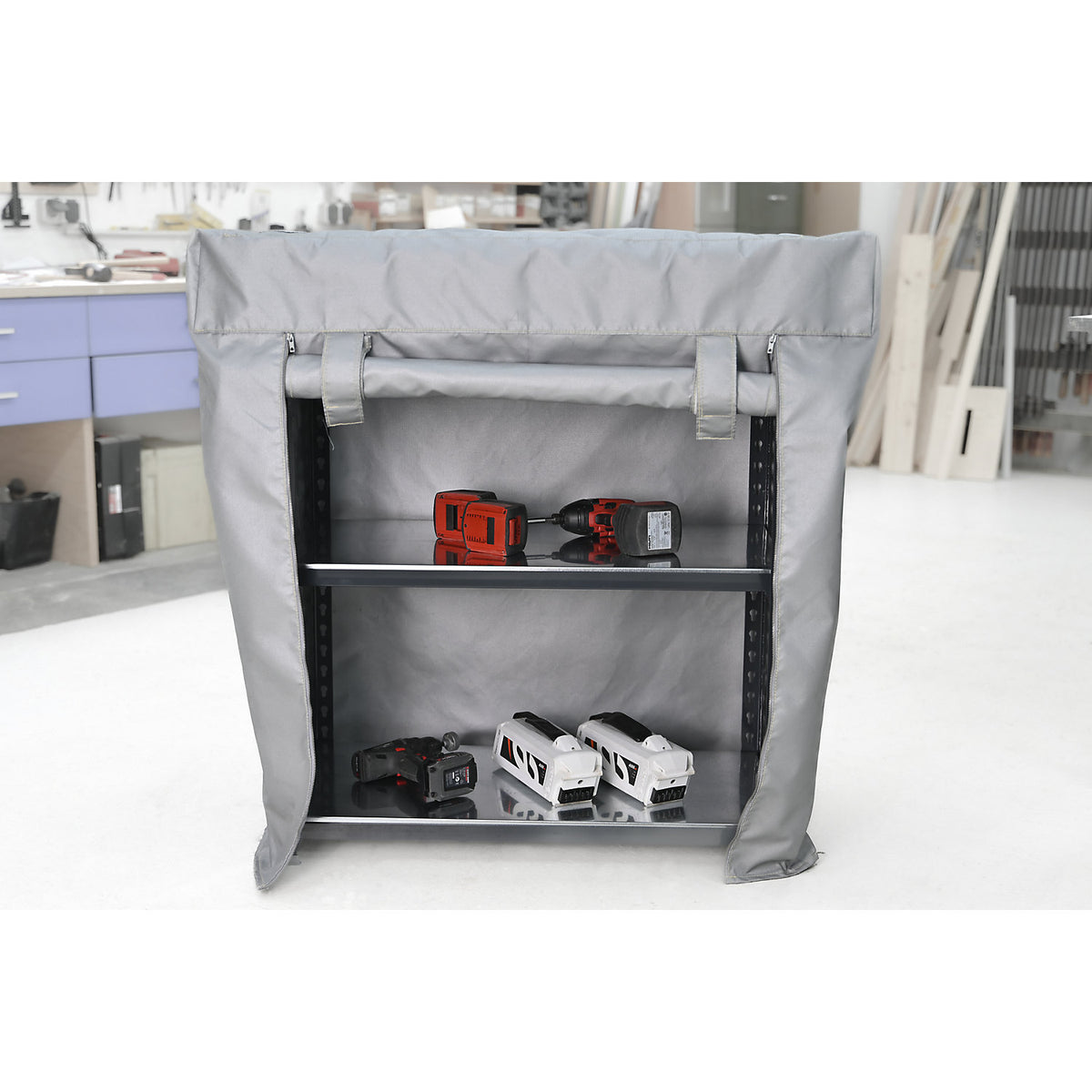

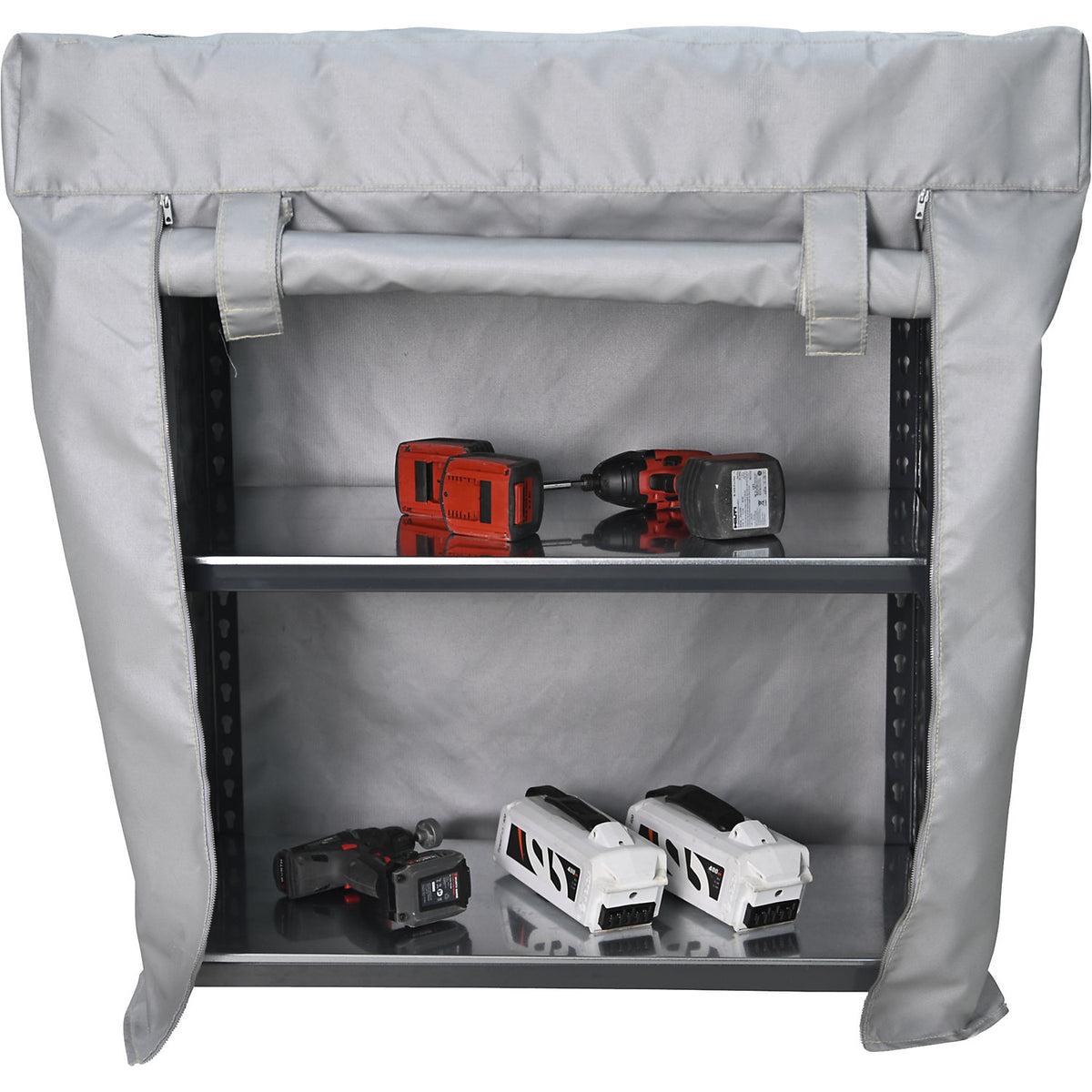

Shelving unit with fire containment cover, height 1000 mm, for storage of rechargeable batteries, WxD 800 x 400 mm.

Estimated delivery: 44 days

Shelving unit with fire containment cover, height 1000 mm, for storage of rechargeable batteries, WxD 800 x 400 mm

• Supplied = partially assembled
• Shelf unit type = standard unit
• Shelf unit height = 1000 mm
• Width = 800 mm
• Depth = 400 mm
• Shelf width = 800 mm
• Number of levels = 3 pcs
• Max. shelf load = 180 kg
• Max. bay load = 540 kg
• Material = sheet steel, galvanised
• Colour = silver
• Design = plug-in system
• Shelf unit design = single sided
• Number of shelves = 3 pcs
• Product type = rechargeable battery shelf units
• Customs tariff number = 94032080
• Country of origin = LVA
• Gross weight = 17 kg
• Weight = 13.5 kg
• Sustainability = Recyclable, CO 2 footprint calculated
• For the efficient containment of fires, including lithium ion battery fires
• High explosion protection (burst resistance) due to special fabric and coating
• Reduction of smoke development due to high stifling effect
• Temperature resistant up to 1750 °C (1000 °C over extended periods)
• Retains exploding parts due to the high burst resistance of the material
• Reduces smoke development due to the high stifling effect of the material
• Batteries can be charged by charging socket feedthrough
• Prevents any potential electrical conductivity of the battery
• The cover is cut resistant when placed up against sharp edges
• For environmentally friendly and resource saving fire suppression
• No maintenance required, material is weatherproof and does not corrode
• VLITEX Akku-Safe shelves offer reliable protection in case of battery fires and are available in two sizes
• Specially developed for the safe storage of lithium-ion batteries, the shelving unit ensures that fires remain controlled without endangering surrounding areas
• In the event of a fire, the fire-resistant material immediately reduces smoke and effectively protects against the spread of flames
• The shelving unit also offers a significant reduction in the ambient temperature and is therefore the perfect solution for safe and rapid fire prevention in workshops, warehouses and industrial plants
• The shelving system is easy to handle and the frame (boltless shelving unit), including the hood, can be assembled in just a few minutes
• Its very low weight ensures the shelving system can be quickly repositioned
• The material used for the fire containment hood consists of a high-performance fabric and meets the requirements of DIN SPEC 91489
• It effectively prevents the spread of fires and reliably protects against the risks of a battery fire
• Can be used multiple times, depending on the fire load and damage such as cuts or holes
• Cover material: Special fibreglass fabric with silicone coating, seams with fire-retardant sewing thread, acid and chemical resistant Fastening strap: Special fibreglass fabric with double-sided silicone coating Safety notice: This system has been successfully tested by Fraunhofer with 1 x 740 Wh Li-ion battery (+90% charged)
• Store batteries with a maximum total capacity of 740 Wh per shelf
• However: The system is not a guaranteed protection against battery explosions
• It is designed to provide temporary containment in order to reduce the immediate risk and allow time for emergency measures
• The German manufacturer VLITEX GmbH equips fire brigades and industry, among others, with safety products based on technical textiles
• Tested according to the relevant standards: - Short-term temperature resistance confirmed by Magna Steyr (1300 °C) - Short-term temperature resistance confirmed by in-house test (1750 °C) - Electrical resistance according to DIN 54345-1 confirmed by Hof University of Applied Sciences (< 1.0 x 10^6 nullΩ) - Cut resistance according to ISO 13997:1999-08 confirmed by STFI (18.45 N) - Fire behaviour according to DIN EN 13501 confirmed by MPA (A2)
