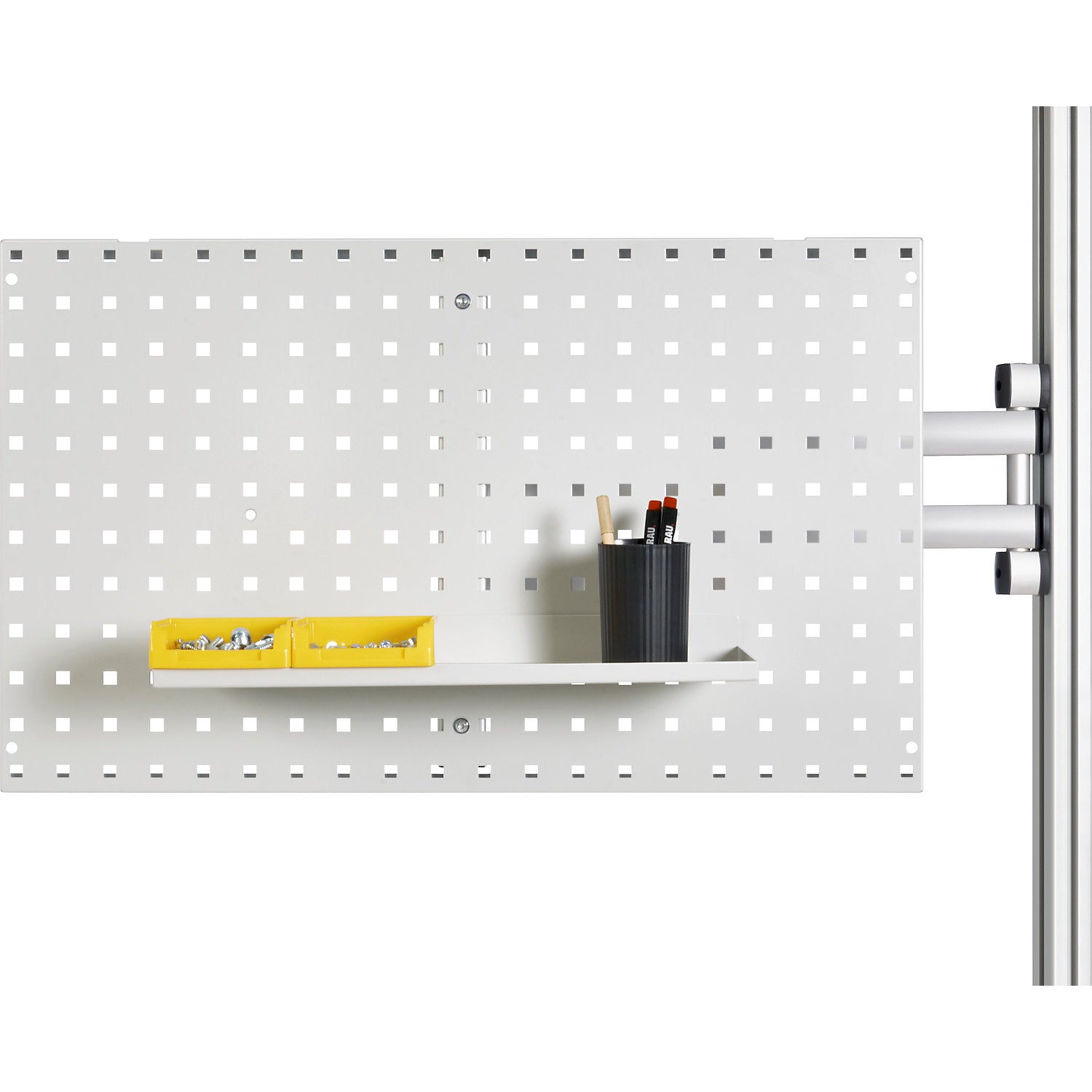

Swivel arm, including perforated plate, with 3 joints, reach 540 mm.

Estimated delivery: 36 days

Swivel arm, including perforated plate, with 3 joints, reach 540 mm

• Supplied = partially assembled
• Material = sheet steel
• Colour = light grey RAL 7035
• Max. load = 25 kg
• Product type = accessories for workplace systems
• Customs tariff number = 94039910
• Country of origin = DEU
• Gross weight = 3.5 kg
• Weight = 3 kg
• Sustainability = Recyclable
• For all RAU modular add-on systems
• For the installation of tool holders
• More space, better organisation and a clearer overview of the work surface
• Promotes ergonomic work due to short distances to reach items
• Swivel arm with perforated plate for optimum organisation and efficiency at the workstation
• Dimensions from system support when full extended: joint-280 mm-joint-280 mm-joint
• Perforated panel width 750 x height 450 mm with square system perforations (10 x 10 mm, distance from hole centre to hole centre 38 mm)
• Installed on RAU system supports (on all sides)
• Any installation height can be selected
• Total max. load 25 kg
• Powder coated in light grey RAL 7035
• Supplied flat pack - easy self-assembly
• Suitable tool holders for perforated plates can be found under Accessories.
