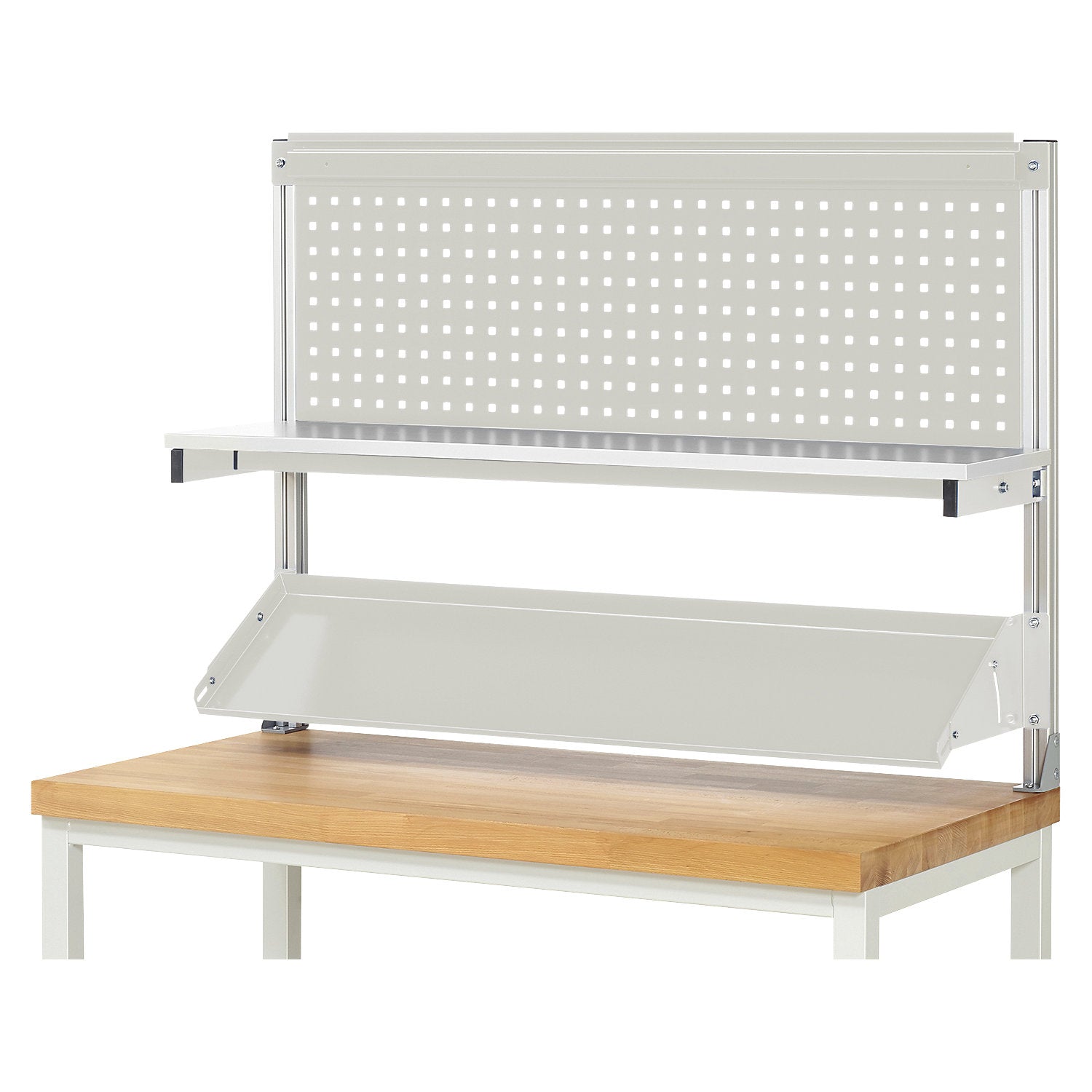

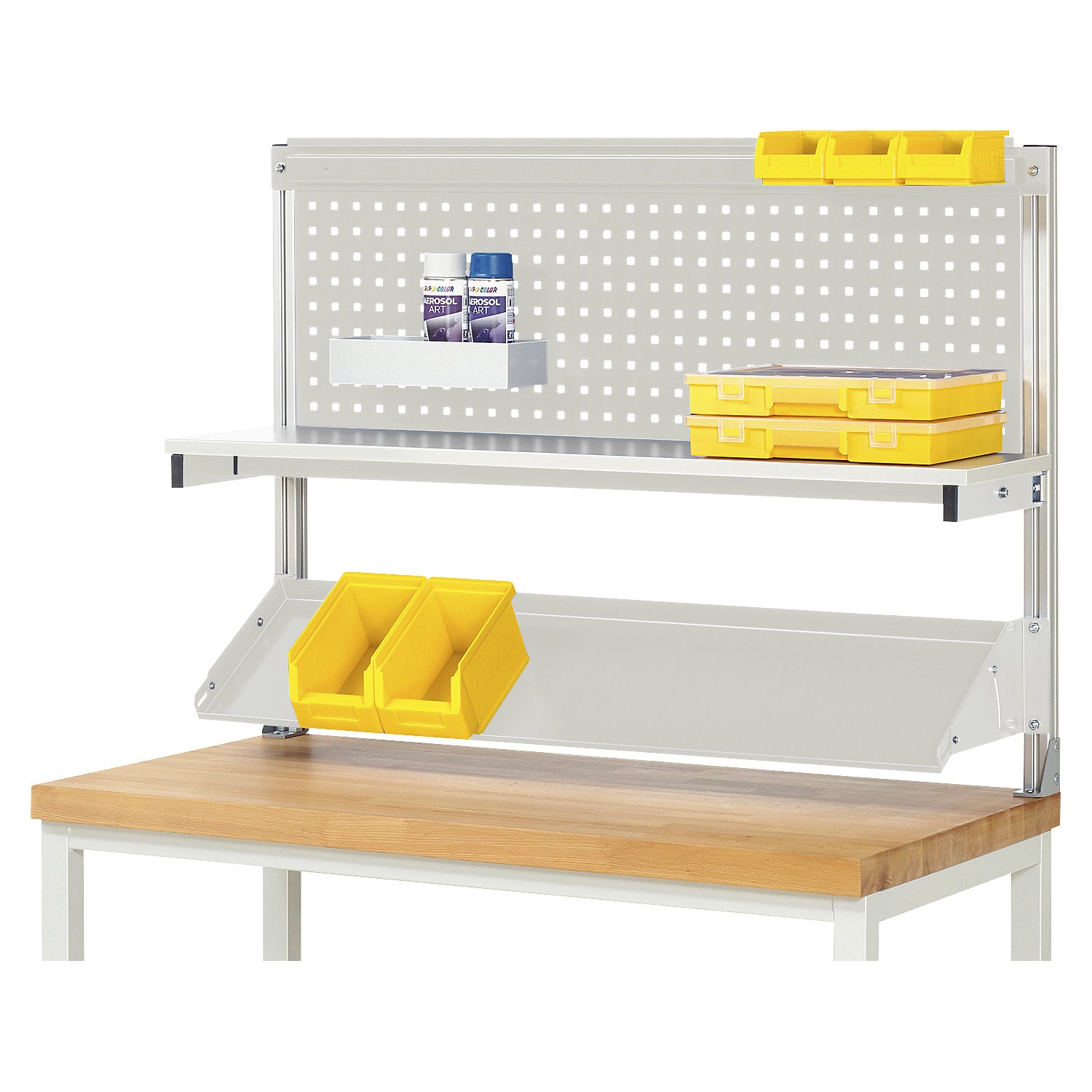

System assembly set 7, for workbench, WxDxT 1250 x 350 x 900 mm.

Estimated delivery: 36 days

System assembly set 7, for workbench, WxDxT 1250 x 350 x 900 mm

• Supplied = partially assembled
• Width = 1250 mm
• Depth = 350 mm
• Colour = light grey RAL 7035
• Material = aluminium
• Height = 900 mm
• Product type = accessories for workplace systems
• Customs tariff number = 94039910
• Country of origin = DEU
• Gross weight = 43 kg
• Weight = 40 kg
• Sustainability = Recyclable
• Suitable for RAU workbenches/work tables and selected eurokraft pro workbenches
• Ergonomics, order and overview at the workplace
• All built-in and add-on parts are height-adjustable
• Easy to supplement or expand
• Essential for the implementation of LEAN management methods
• The complete system assembly set 7 includes: -1 x pair of system uprights for mounting on the worktop -1 x perforated panel height 450 mm (perforation 10 x 10 mm, distance hole centre-to-centre 38 mm) for holding tool holders
• Max. load 30 kg. -1 x holding rail height 80 mm (with hook-in edge for open-fronted storage bins and drilling template for power strip)
• Max. load 30 kg. 1 x shelf depth 310 mm x height 75 mm (melamine-resin coated board, thickness 22 mm, light grey, ABS edge) with a support beam made of profile steel tube (40x40x2 mm) and 2 brackets made of profile steel tube (50x20x2 mm). -1 x metal shelf, tiltable - depth 300 mm x height 160 mm
• Including 2 mounting brackets with infinitely variable tilt adjustment from 0° - 30°
• Depth position of the shelf in the mounting bracket adjustable by 120 mm
• Shelf with upstand at the front 15 mm, other sides 40 mm
• Max. load 30 kg
• We recommend mounting on at least 40 mm thick worktops with a solid wood core.
